ATOM 50W Ka-Band SSPA
ATOM 50W Ka-Band SSPA

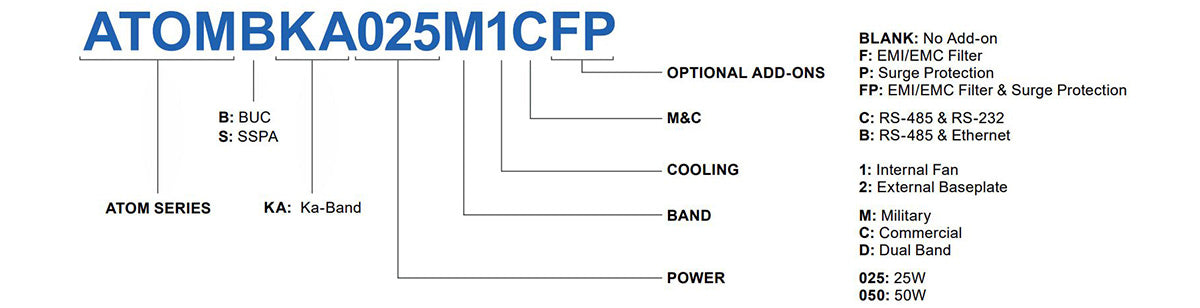

ATOMSKA050M1B

ATOM 50W Ka-Band SSPA

ATOMSKA050 Series

Regular price MSRP: $41,026.83
/
Quantity Available: 0
Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

KEY SPECIFICATIONS
band Ka-Band
band type M: Military
input frequency band 1 Ka-Band: 1000 - 2000 MHz
output frequency 1 Ka-Band: 30.00 - 31.00 GHz
output power rated 50W
RF SPECIFICATIONS
Gain Flatness (over 40MHz) ≤ 1.0 dB p-p
Gain Flatness (over full band) ≤ 4.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 1.5 : 1 max.
Linear Gain 60 dB typ., 55 dB min., 65 dB max.
linear power plin 44 dBm min.
noise power density -65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat 47 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -60 dBc
output VSWR 1.9 : 1 max.
phase noise 100Hz offset -62 dBc/Hz
phase noise 100khz offset -92 dBc/Hz
phase noise 10khz offset -82 dBc/Hz
phase noise 1khz offset -72 dBc/Hz
phase noise 1Mhz offset -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
input voltage + 20V to 56V DC via power connector
maximum current 20 VDC 29.0A max.
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption 580 W max.
INTERFACE SPECIFICATIONS
RF input connector SMA Type 2.92mm Female (50 Ohm)
RF output connector WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40 to +60°C
temperature storage -54 to +71°C
thermal shutdown temperature 90°C (Accuracy ± 3°C)
Weight < 3.2 kg (7.05 lb)
PHYSICAL SPECIFICATIONS
cooling 1: Internal Fan

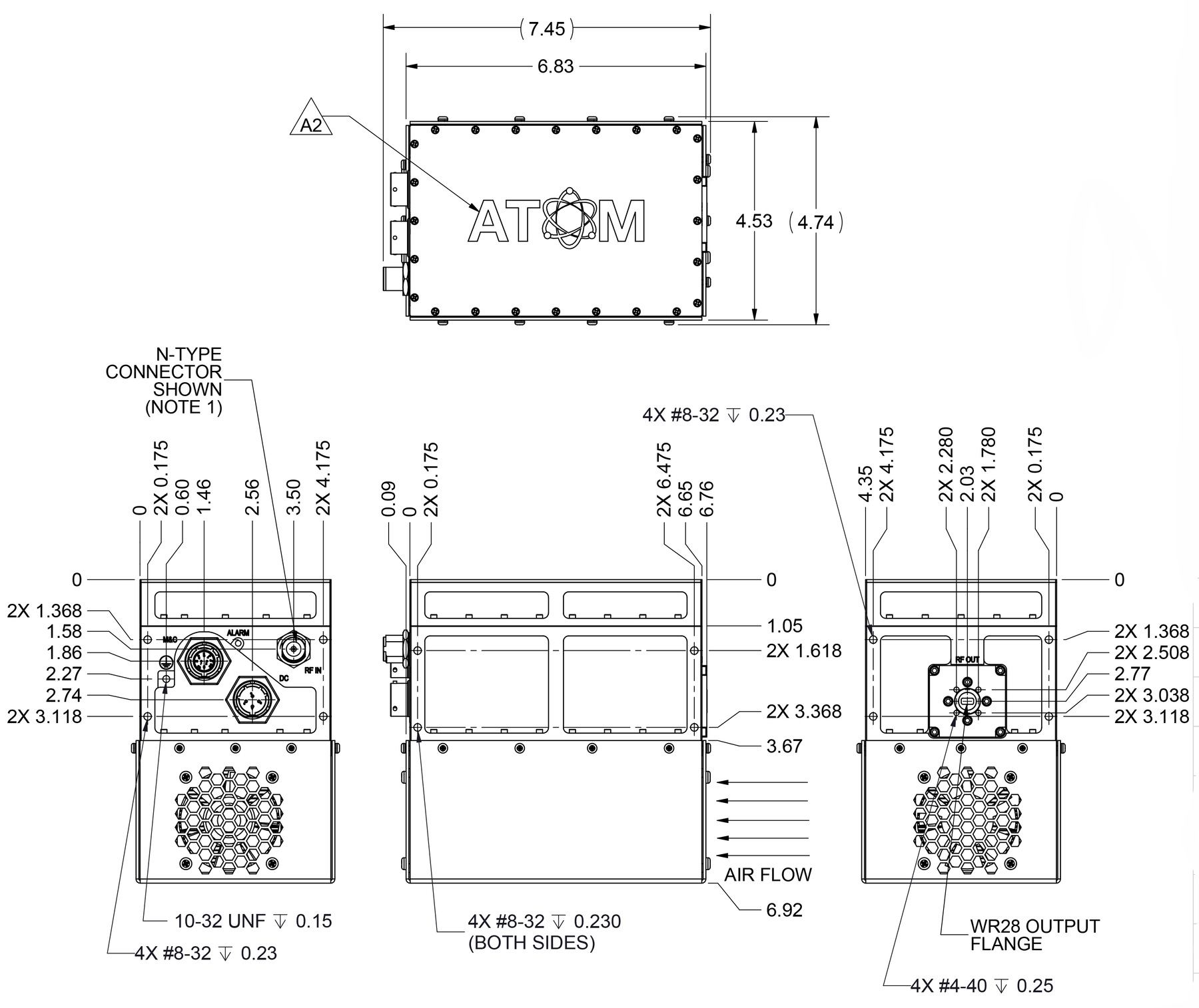

dimensions (LxWxH) 300 x 140 x 120 mm
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
