Name: 5200I C-Band Single-Band PLL LNB
Brand: Norsat International Inc.
SKU: 5150IF
Price: 132.00 USD
Availability: InStock

5150IF

5200I C-Band Single-Band PLL LNB

5200I Series

MSRP: $132.00

Quantity Available: 205

Lead Time: In Stock Lead Time: In Stock Lead Time: In Stock Lead Time: In Stock

View Resellers Quantity

For more information, click on the Company's link below:

Esatcom Inc: 1

For more information, click on the Company's link below:

Esatcom Inc: 3

Satcom Resources: 1

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

[{"id":41050304217271,"title":"±150 kHz \/ F: 75 Ohm","option1":"±150 kHz","option2":"F: 75 Ohm","option3":null,"sku":"5150IF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"5200I C-Band Single-Band PLL LNB - ±150 kHz \/ F: 75 Ohm","public_title":"±150 kHz \/ F: 75 Ohm","options":["±150 kHz","F: 75 Ohm"],"price":13200,"weight":580,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050304250039,"title":"±150 kHz \/ N: 50 Ohm","option1":"±150 kHz","option2":"N: 50 Ohm","option3":null,"sku":"5150IN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"5200I C-Band Single-Band PLL LNB - ±150 kHz \/ N: 50 Ohm","public_title":"±150 kHz \/ N: 50 Ohm","options":["±150 kHz","N: 50 Ohm"],"price":17600,"weight":580,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050304282807,"title":"±250 kHz \/ F: 75 Ohm","option1":"±250 kHz","option2":"F: 75 Ohm","option3":null,"sku":"5250IF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"5200I C-Band Single-Band PLL LNB - ±250 kHz \/ F: 75 Ohm","public_title":"±250 kHz \/ F: 75 Ohm","options":["±250 kHz","F: 75 Ohm"],"price":12100,"weight":580,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41050304315575,"title":"±250 kHz \/ N: 50 Ohm","option1":"±250 kHz","option2":"N: 50 Ohm","option3":null,"sku":"5250IN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"5200I C-Band Single-Band PLL LNB - ±250 kHz \/ N: 50 Ohm","public_title":"±250 kHz \/ N: 50 Ohm","options":["±250 kHz","N: 50 Ohm"],"price":16500,"weight":580,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	C-Band: 4.50 - 4.80 GHz
lo stability	+/- 150 kHz
lo type	PLL
noise figure	25 K
output frequency 1	L-Band: 1150 - 1450 MHz

RF SPECIFICATIONS
conversion gain	60 dB typ.
input VSWR	2.5 : 1
lo frequency 1	5.95 GHz
output VSWR	2.5 : 1

ELECTRICAL SPECIFICATIONS
power requirements	12 - 24 V

INTERFACE SPECIFICATIONS
RF input connector	CPR 229G waveguide grooved
RF output connector	F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C
Weight	575g

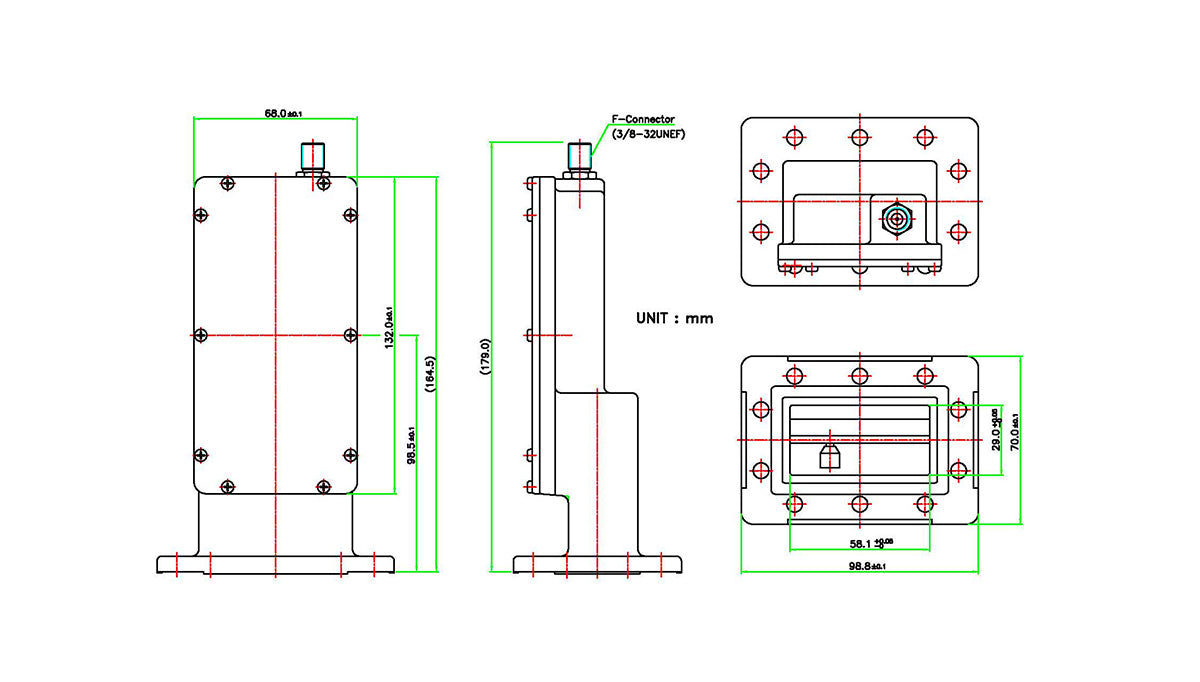

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)	179 x 99 x 70 mm
Weight	575 g

INFORMATION
HS Code	8517690000
Country of Origin	KR
ECCN Number	EAR99
Shipping Package Dimensions	180 x 102 x 71 mm
Shipping Package Weight	575g
