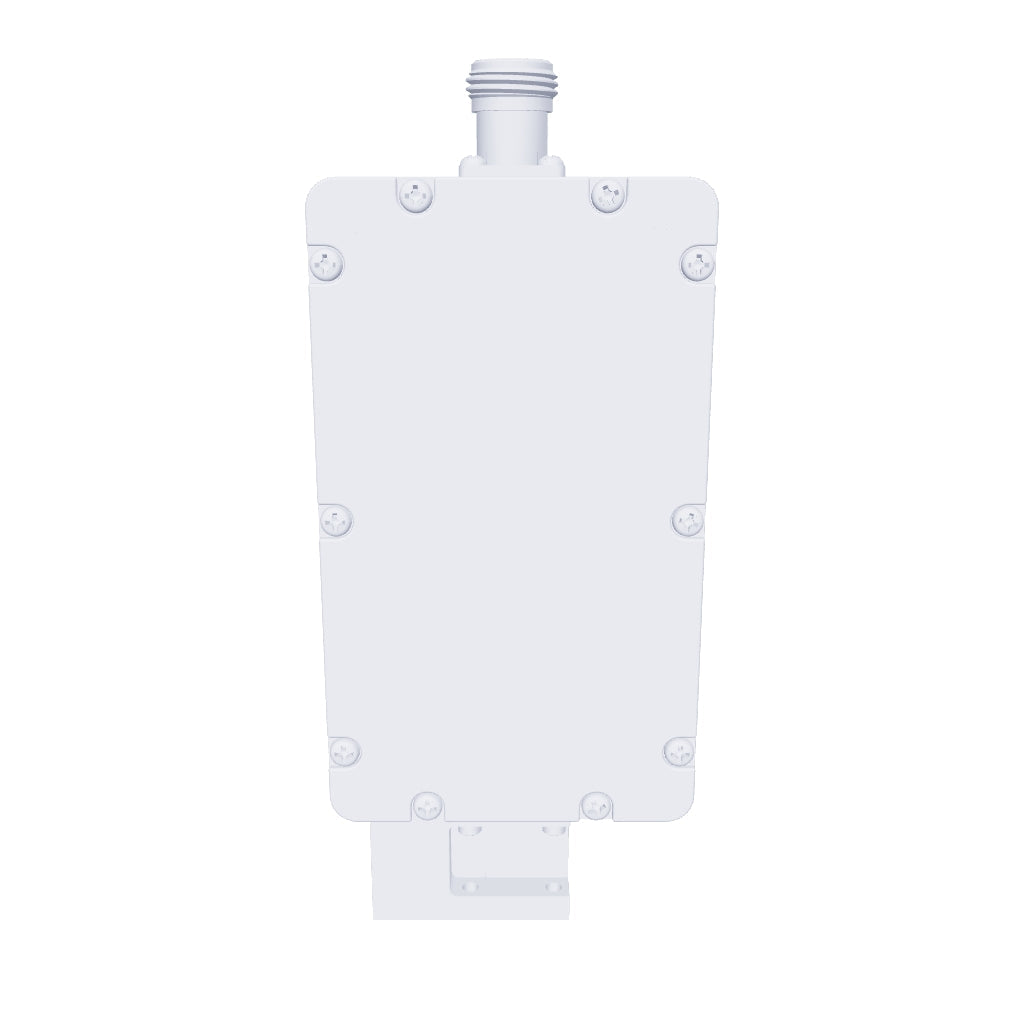

9000 5-Band Ka-Band Ext REF LNB
9000 5-Band Ka-Band Ext REF LNB
9000 5-Band Ka-Band Ext REF LNB

9000X5N

9000 5-Band Ka-Band Ext REF LNB

9000X5 Series

Regular price MSRP: $4,121.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 17.20 - 18.20 GHz
input frequency band 2 18.20 - 19.20 GHz
input frequency band 3 19.20 - 20.20 GHz
input frequency band 4 20.20 - 21.20 GHz
input frequency band 5 Ka-Band: 21.20 - 22.20 GHz
LO frequency 1 16.25 GHz
LO frequency 2 17.25 GHz
LO frequency 3 18.25 GHz
LO frequency 4 19.25 GHz
LO frequency 5 20.25 GHz
LO stability Phase Locked to External Reference
LO type External
noise figure 2.5 dB typ., 2.9 dB max. - no isolator @ CF
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
output frequency band 3 950 - 1950 MHz
output frequency band 4 950 - 1950 MHz
output frequency band 5 L-Band: 950 - 1950 MHz
RF SPECIFICATIONS
control signal 1 13 V
control signal 2 13 V / 22 KHz Tone
control signal 3 18 V
control signal 4 18 V / 22 KHz Tone
control signal 5 22 V
conversion gain 60 dB typ., 55 dB min., 65 dB max.
Gain Flatness (over full band) ≤ 4 dB p-p max.
input VSWR 3.5 : 1 max.
output P1dB + 10 dBm min.
output VSWR 2.2 : 1 max.
phase noise 100khz offset Depends on External Reference
phase noise 10khz offset Depends on External Reference
phase noise 1khz offset Depends on External Reference
phase noise 1Mhz offset Depends on External Reference
ELECTRICAL SPECIFICATIONS
current drain 500 mA
power requirements 12 - 24 V
INTERFACE SPECIFICATIONS
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 137 x 67 x 39 mm
product weight 550 g (19.40 oz)
