KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
L-Band: 950 - 1450 MHz
noise figure
65 dB
output frequency 1
Ku-Band: 14.0 - 14.50 GHz
output power rated
16W
product family
MEDIBKU016S
RF SPECIFICATIONS
conversion gain
65 dB
input VSWR
1.5 : 1
lo frequency 1
13.05 GHz
output power saturated
16 W
output VSWR
1.25 : 1
spurious
-55 dBc max
ELECTRICAL SPECIFICATIONS
power requirements
36 - 72 V ; 48 V over IFL (optional)
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-30 to +55°C
weatherproofing
IP 65
PHYSICAL SPECIFICATIONS
cooling
Fan

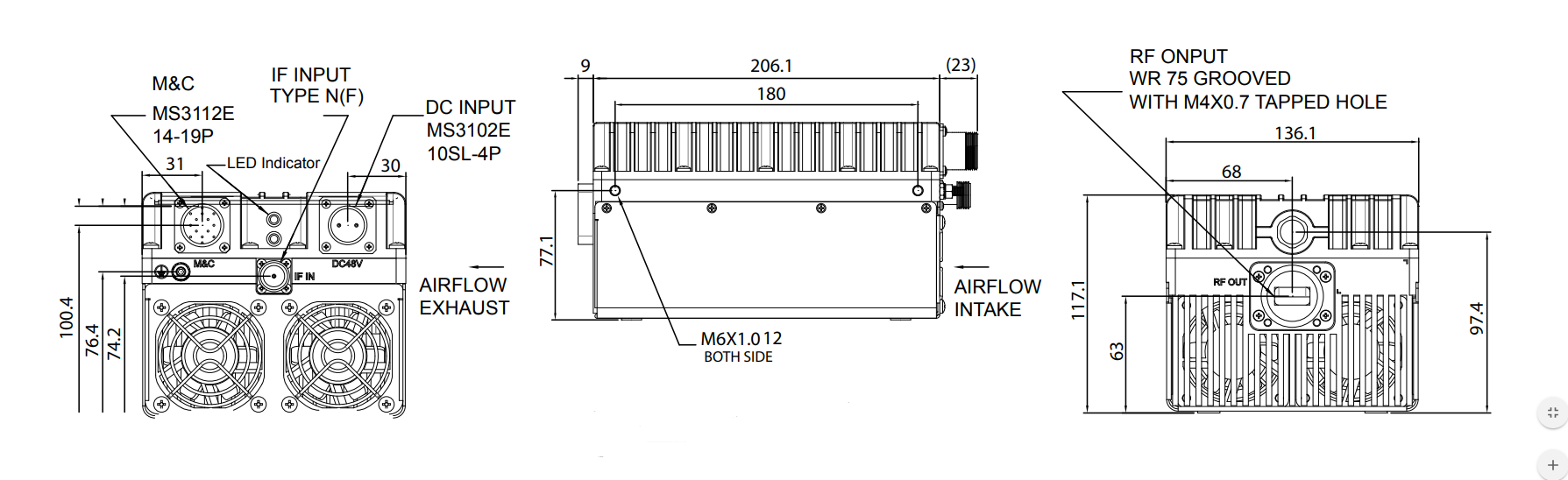

dimensions (LxWxH)
206 x 136 x 117 mm
INFORMATION
HS Code
8517690000
Country of Origin
CN
ECCN Number
EAR99
Shipping Package Dimensions
N/A
Shipping Package Weight
450g
MEDIBKU016S-Spec-Sheet.pdf
