Name: ULC-0-75-6
Brand: Norsat International Inc.
SKU: ULC-0-75-6
Price: 2600.00 USD
Availability: InStock

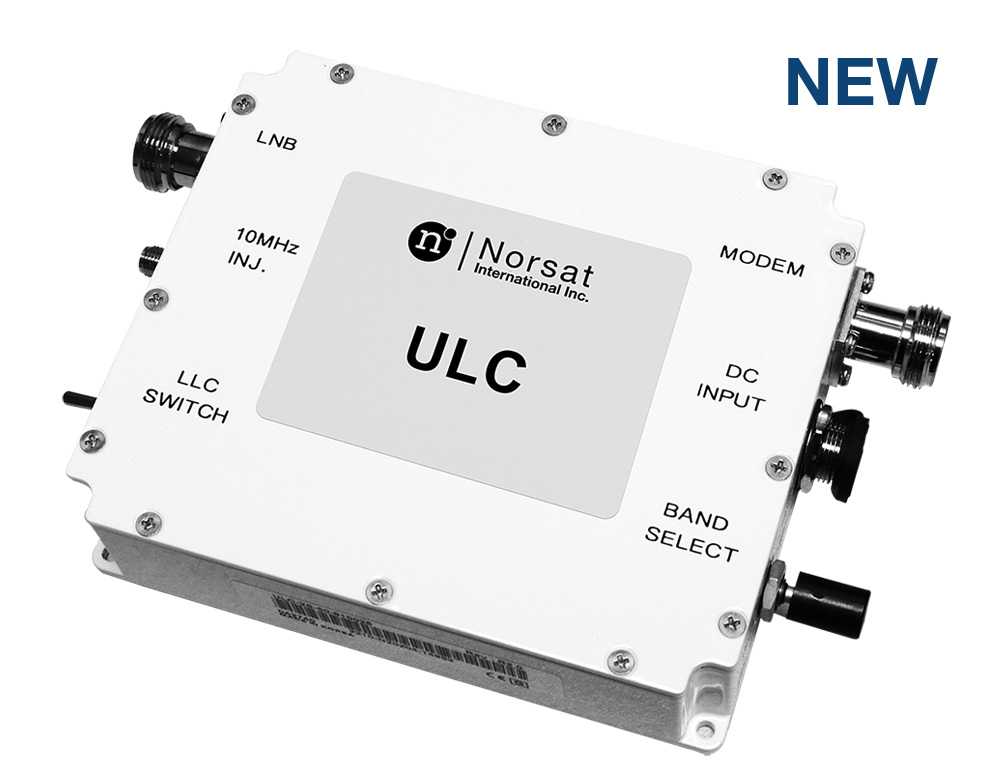

ULC-0-75-6

6-Band ULC Series

MSRP: $2,600.00

Quantity Available: Contact Sales

Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks

View Resellers Quantity

(Scroll to see specifications and documents)

View Datasheet

[{"id":41526430007479,"title":"No Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"No Reference","option2":"F: 75 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-0-75-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - No Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"No Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["No Reference","F: 75 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430040247,"title":"10 MHz Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"10 MHz Reference","option2":"F: 75 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-1-75-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"10 MHz Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["10 MHz Reference","F: 75 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":360000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430073015,"title":"10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"10 MHz Injection Port; SMA Connector","option2":"F: 75 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-2S-75-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["10 MHz Injection Port; SMA Connector","F: 75 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430105783,"title":"No Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"No Reference","option2":"N: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-0-50-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - No Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"No Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["No Reference","N: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430138551,"title":"10 MHz Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"10 MHz Reference","option2":"N: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-1-50-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"10 MHz Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["10 MHz Reference","N: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":360000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430171319,"title":"10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"10 MHz Injection Port; SMA Connector","option2":"N: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["10 MHz Injection Port; SMA Connector","N: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430204087,"title":"No Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"No Reference","option2":"SMA: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-0-50S-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - No Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"No Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["No Reference","SMA: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430236855,"title":"10 MHz Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"10 MHz Reference","option2":"SMA: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-1-50S-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"10 MHz Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["10 MHz Reference","SMA: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":360000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430269623,"title":"10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"10 MHz Injection Port; SMA Connector","option2":"SMA: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50S-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["10 MHz Injection Port; SMA Connector","SMA: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430302391,"title":"No Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"No Reference","option2":"F: 75 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-0-75-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - No Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"No Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["No Reference","F: 75 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430335159,"title":"10 MHz Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"10 MHz Reference","option2":"F: 75 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-1-75-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"10 MHz Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["10 MHz Reference","F: 75 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":360000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430367927,"title":"10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"10 MHz Injection Port; SMA Connector","option2":"F: 75 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-2S-75-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["10 MHz Injection Port; SMA Connector","F: 75 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430400695,"title":"No Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"No Reference","option2":"N: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-0-50-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - No Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"No Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["No Reference","N: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430433463,"title":"10 MHz Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"10 MHz Reference","option2":"N: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-1-50-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"10 MHz Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["10 MHz Reference","N: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":360000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430466231,"title":"10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"10 MHz Injection Port; SMA Connector","option2":"N: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["10 MHz Injection Port; SMA Connector","N: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430498999,"title":"No Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"No Reference","option2":"SMA: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-0-50S-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - No Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"No Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["No Reference","SMA: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430531767,"title":"10 MHz Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"10 MHz Reference","option2":"SMA: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-1-50S-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"10 MHz Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["10 MHz Reference","SMA: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":360000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430564535,"title":"10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"10 MHz Injection Port; SMA Connector","option2":"SMA: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50S-CL-6","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["10 MHz Injection Port; SMA Connector","SMA: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":260000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}}]

El controlador LNB universal de Norsat se utiliza como unidad de control LNB para LNB multibanda.

KEY SPECIFICATIONS
control signal	Switch Control & Line Length Compensation with Switch
input voltage	23 ~ 25 VDC (Power Supply Included)
reference signal	No Reference
required current	500 mA max.

INTERFACE SPECIFICATIONS
RF output connector	F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
dimension	100 x 120mm x 30 mm (exclude connector)
temperature operational	-40 to +60°C
weight	670 g

Volver a Componentes de microondas

INFORMATION
HS Code	8517700000
Country of Origin	KR
ECCN Number	EAR99
Shipping Package Dimensions	N/A
Shipping Package Weight	N/A

ENVIRONMENTAL SPECIFICATIONS
dimension	130mm x 120mm x 30 mm (exclude connector)
temperature operational	-40 to +60°C
weight	850 g

KEY SPECIFICATIONS
control signal	Control Interface Cable & Line Length Compensation with Switch
input voltage	23 ~ 25 VDC (Power Supply Included)
reference signal	No Reference
required current	500 mA max.
