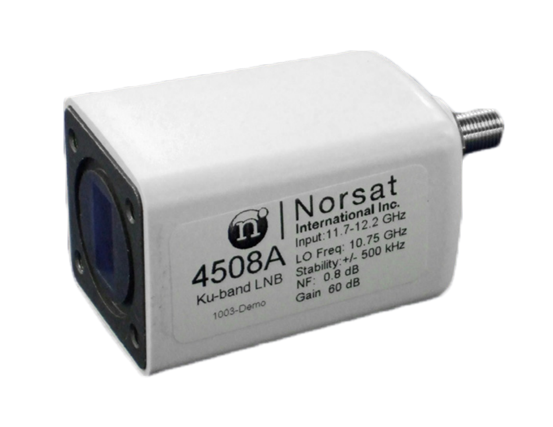

Name: LNB PLL de banda única de banda Ku 4000A
Brand: Norsat International Inc.
SKU: 4107AF
Price: 128.00 USD
Availability: InStock

LNB PLL de banda única de banda Ku 4000A

4107AF

LNB PLL de banda única de banda Ku 4000A

4000A Series

$128.00

Quantity Available: 50

Next Availability: 44 Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: 44 Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: 1 - 2 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

View Family Datasheet

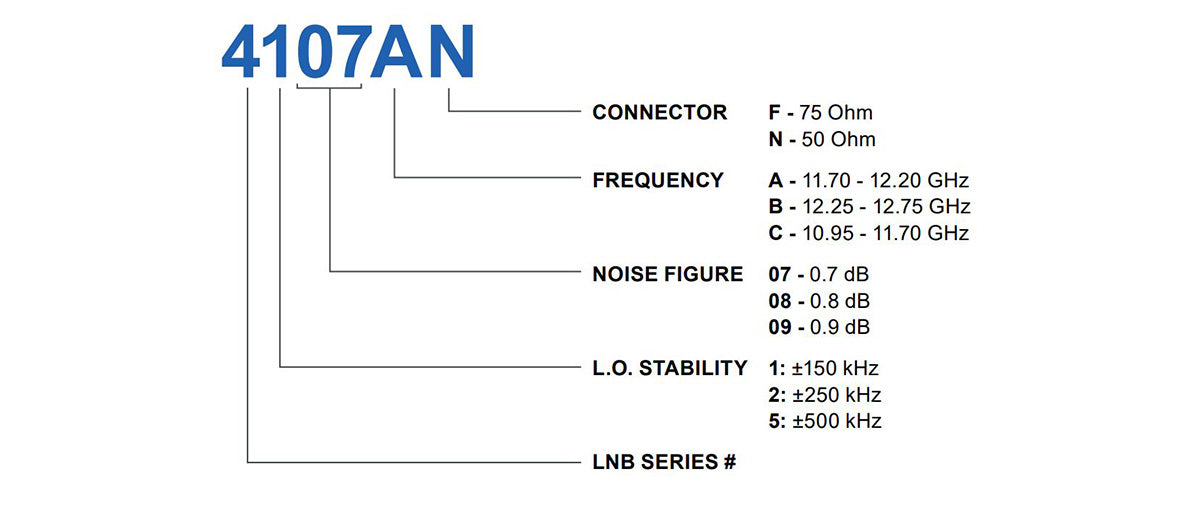

[{"id":41053146677431,"title":"1: ±150 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"1: ±150 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"4107AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 1: ±150 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"1: ±150 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["1: ±150 kHz","0.7 dB","F: 75 Ohm"],"price":12800,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"46677431","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053146710199,"title":"1: ±150 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"1: ±150 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"4108AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 1: ±150 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"1: ±150 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["1: ±150 kHz","0.8 dB","F: 75 Ohm"],"price":12400,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"46710199","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053146742967,"title":"1: ±150 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"1: ±150 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"4109AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 1: ±150 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"1: ±150 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["1: ±150 kHz","0.9 dB","F: 75 Ohm"],"price":11900,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"46742967","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053146775735,"title":"1: ±150 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"1: ±150 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"4107AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 1: ±150 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"1: ±150 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["1: ±150 kHz","0.7 dB","N: 50 Ohm"],"price":17200,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"46775735","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053146808503,"title":"1: ±150 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"1: ±150 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"4108AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 1: ±150 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"1: ±150 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["1: ±150 kHz","0.8 dB","N: 50 Ohm"],"price":16800,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"46808503","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053146841271,"title":"1: ±150 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"1: ±150 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"4109AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 1: ±150 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"1: ±150 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["1: ±150 kHz","0.9 dB","N: 50 Ohm"],"price":16300,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"46841271","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157130423,"title":"2: ±250 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"2: ±250 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"4207AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 2: ±250 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"2: ±250 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["2: ±250 kHz","0.7 dB","F: 75 Ohm"],"price":10600,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57130423","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157163191,"title":"5: ±500 kHz \/ 0.7 dB \/ F: 75 Ohm","option1":"5: ±500 kHz","option2":"0.7 dB","option3":"F: 75 Ohm","sku":"4507AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 5: ±500 kHz \/ 0.7 dB \/ F: 75 Ohm","public_title":"5: ±500 kHz \/ 0.7 dB \/ F: 75 Ohm","options":["5: ±500 kHz","0.7 dB","F: 75 Ohm"],"price":9500,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57163191","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157195959,"title":"2: ±250 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"2: ±250 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"4208AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 2: ±250 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"2: ±250 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["2: ±250 kHz","0.8 dB","F: 75 Ohm"],"price":10200,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57195959","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157228727,"title":"5: ±500 kHz \/ 0.8 dB \/ F: 75 Ohm","option1":"5: ±500 kHz","option2":"0.8 dB","option3":"F: 75 Ohm","sku":"4508AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 5: ±500 kHz \/ 0.8 dB \/ F: 75 Ohm","public_title":"5: ±500 kHz \/ 0.8 dB \/ F: 75 Ohm","options":["5: ±500 kHz","0.8 dB","F: 75 Ohm"],"price":9100,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57228727","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157261495,"title":"2: ±250 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"2: ±250 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"4209AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 2: ±250 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"2: ±250 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["2: ±250 kHz","0.9 dB","F: 75 Ohm"],"price":9700,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57261495","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157294263,"title":"5: ±500 kHz \/ 0.9 dB \/ F: 75 Ohm","option1":"5: ±500 kHz","option2":"0.9 dB","option3":"F: 75 Ohm","sku":"4509AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 5: ±500 kHz \/ 0.9 dB \/ F: 75 Ohm","public_title":"5: ±500 kHz \/ 0.9 dB \/ F: 75 Ohm","options":["5: ±500 kHz","0.9 dB","F: 75 Ohm"],"price":8600,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57294263","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157327031,"title":"2: ±250 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"2: ±250 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"4207AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 2: ±250 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"2: ±250 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["2: ±250 kHz","0.7 dB","N: 50 Ohm"],"price":15000,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57327031","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157359799,"title":"5: ±500 kHz \/ 0.7 dB \/ N: 50 Ohm","option1":"5: ±500 kHz","option2":"0.7 dB","option3":"N: 50 Ohm","sku":"4507AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 5: ±500 kHz \/ 0.7 dB \/ N: 50 Ohm","public_title":"5: ±500 kHz \/ 0.7 dB \/ N: 50 Ohm","options":["5: ±500 kHz","0.7 dB","N: 50 Ohm"],"price":13900,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57359799","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157392567,"title":"2: ±250 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"2: ±250 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"4208AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 2: ±250 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"2: ±250 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["2: ±250 kHz","0.8 dB","N: 50 Ohm"],"price":14600,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57392567","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157425335,"title":"5: ±500 kHz \/ 0.8 dB \/ N: 50 Ohm","option1":"5: ±500 kHz","option2":"0.8 dB","option3":"N: 50 Ohm","sku":"4508AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 5: ±500 kHz \/ 0.8 dB \/ N: 50 Ohm","public_title":"5: ±500 kHz \/ 0.8 dB \/ N: 50 Ohm","options":["5: ±500 kHz","0.8 dB","N: 50 Ohm"],"price":13500,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57425335","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157458103,"title":"2: ±250 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"2: ±250 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"4209AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 2: ±250 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"2: ±250 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["2: ±250 kHz","0.9 dB","N: 50 Ohm"],"price":14100,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57458103","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41053157490871,"title":"5: ±500 kHz \/ 0.9 dB \/ N: 50 Ohm","option1":"5: ±500 kHz","option2":"0.9 dB","option3":"N: 50 Ohm","sku":"4509AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 4000A - 5: ±500 kHz \/ 0.9 dB \/ N: 50 Ohm","public_title":"5: ±500 kHz \/ 0.9 dB \/ N: 50 Ohm","options":["5: ±500 kHz","0.9 dB","N: 50 Ohm"],"price":13000,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"57490871","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Ku estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como proveedor líder de la industria de LNB de alto rendimiento. Serie 4000A.

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	11.70 - 12.20 GHz
LO frequency 1	10.75 GHz
LO stability	±150 kHz
LO type	PLL
noise figure max	0.8 dB
noise figure typ	0.7 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	2.5 : 1 max.
output P1dB	+ 2 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	-90 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector

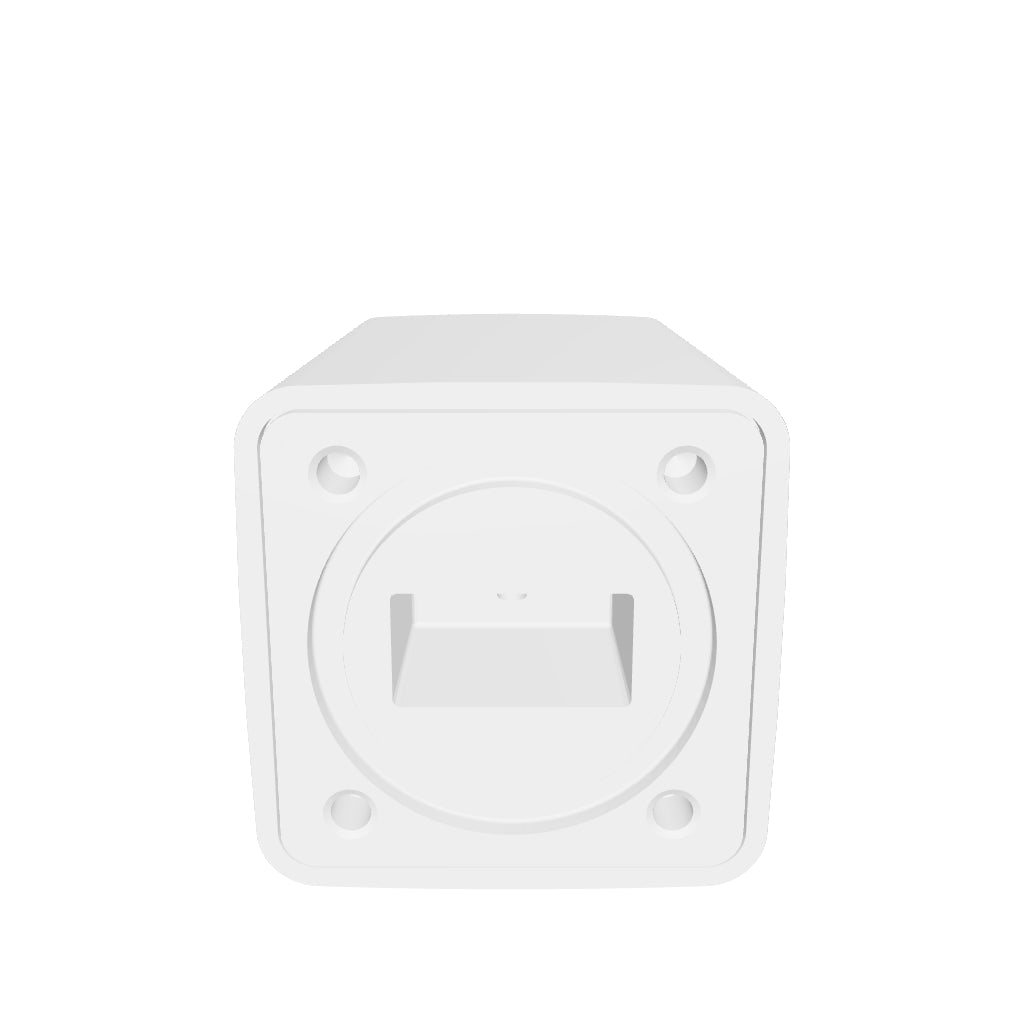

RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS

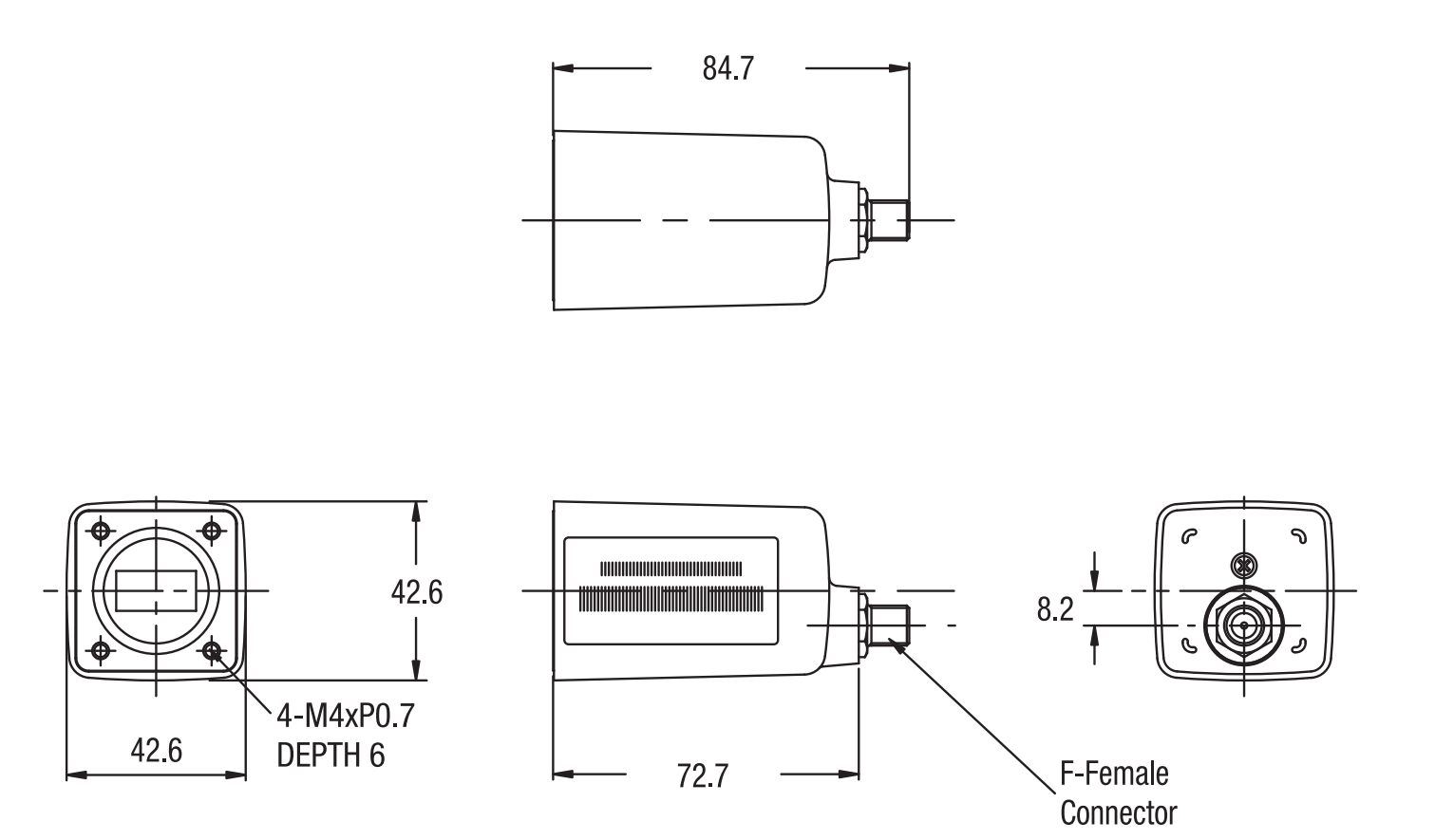

product dimensions (LxWxH)	85 x 43 x 43 mm
product weight	0.2 kg

Volver a Componentes de satélite

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	110 x 55 x 50 mm
Unit Package Weight	0.2 kg
