KEY SPECIFICATIONS
band
X-Band
input frequency band 1
X-Band: 7.25 - 7.75 GHz
noise figure
0.8 dB
RF SPECIFICATIONS
conversion gain
50 dB typ.
input VSWR
2.0 : 1
output VSWR
2.0 : 1
INTERFACE SPECIFICATIONS
RF input connector
CPR-112G
RF output connector
N-50 Ohm
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-40 to +70°C
temperature storage
-50 to +80°C
PHYSICAL SPECIFICATIONS
dimensions (LxWxH)
106 x 77 x 47 mm
KEY SPECIFICATIONS
band
X-Band
input frequency band 1
X-Band: 7.25 - 7.75 GHz
noise figure
0.8 dB
RF SPECIFICATIONS
conversion gain
50 dB typ.
input VSWR
2.0 : 1
output VSWR
2.0 : 1
INTERFACE SPECIFICATIONS
RF input connector
CPR-112G
RF output connector
S - SMA
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-40 to +70°C
temperature storage
-50 to +80°C
PHYSICAL SPECIFICATIONS

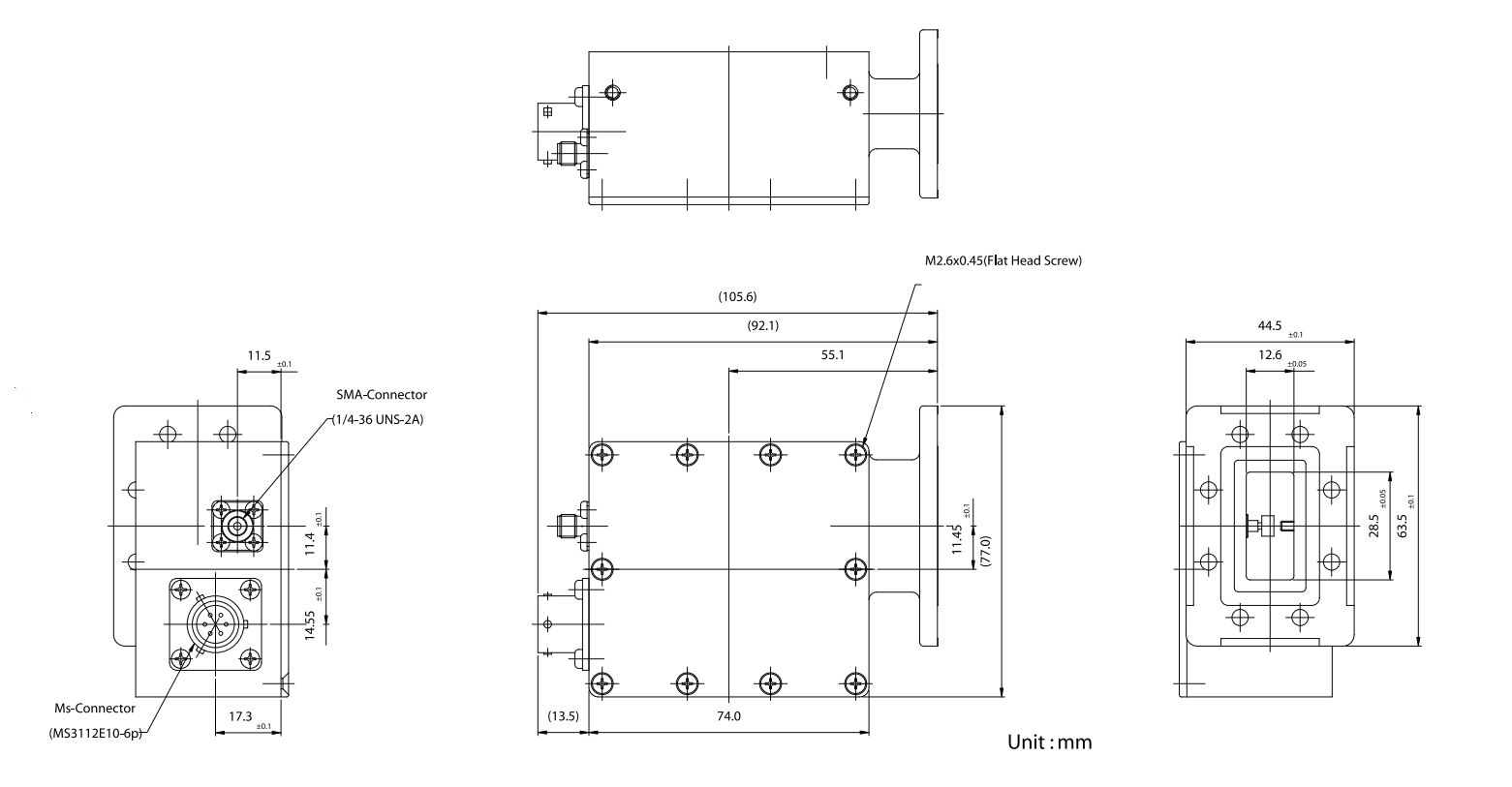

dimensions (LxWxH)
106 x 77 x 47 mm
INFORMATION
HS Code
8517700000
Country of Origin
KR
ECCN Number
EAR99
Shipping Package Dimensions
N/A
Shipping Package Weight
550g
LNA-X1000-Spec-Sheet.pdf
