2000 Dual-Band Ku-Band PLL LNB
2000 Dual-Band Ku-Band PLL LNB
2000 Dual-Band Ku-Band PLL LNB

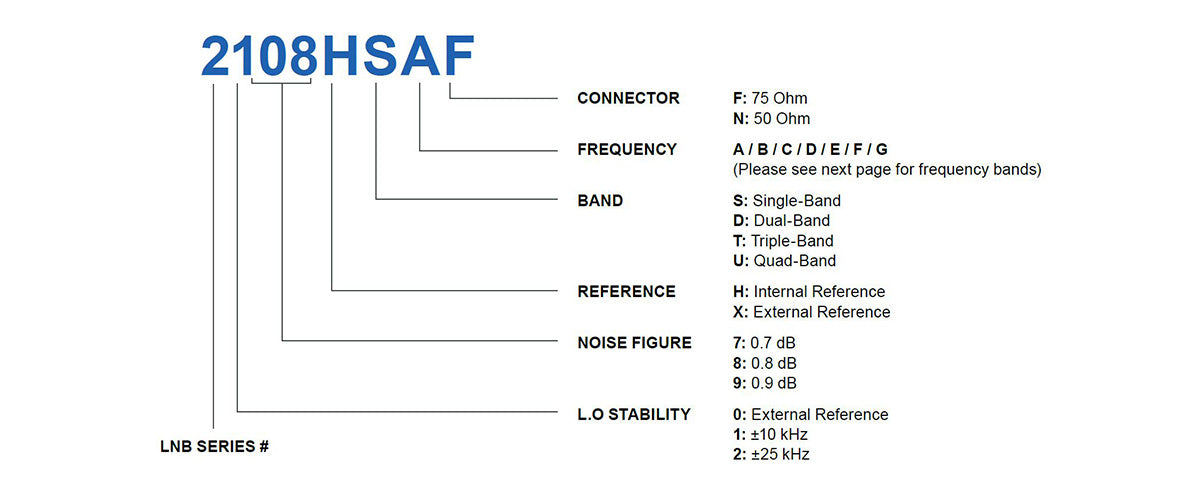

2007XDAF

2000 Dual-Band Ku-Band PLL LNB

2007 Series

Precio habitual MSRP: $706.74
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 Ku-Band: 10.95 - 11.7 GHz
input frequency band 2 Ku-Band: 11.7 - 12.75 GHz
L.O. stability External Reference
L.O. type PLL
noise figure 0.7 dB typ.
output frequency 1 L-Band: 950 - 1700 MHz
output frequency 2 L-Band: 950 - 2000 MHz
tone frequency 22 kHz ± 4 kHz
RF SPECIFICATIONS
conversion gain 60 dB typ.
Gain Flatness (over full band) ≤ 6 dB p-p
input VSWR 2.3 : 1 max.
L.O. frequency 1 10.00 GHz
L.O. frequency 2 10.75 GHz
output P1dB + 5 dBm min.
phase noise 100khz offset -93 dBc/Hz
phase noise 10khz offset -80 dBc/Hz
phase noise 1khz offset -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 350 mA Max
power requirements 12 - 24 V
power requirements tone Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10%
INTERFACE SPECIFICATIONS
RF input connector WR-75 waveguide grooved
RF output connector F-Connector (75 Ohm)
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
temperature operational -40 to +70˚C
temperature storage -50 to +80˚C
Weight 255 g
PHYSICAL SPECIFICATIONS
dimensions (LxWxH) 4.46 x 1.72 x 1.70 in
