KEY SPECIFICATIONS
band
C-Band
input frequency band 1
C-Band: 3.625 - 4.80 GHz
lo stability
+/- 500 kHz
lo type
DRO
noise figure
30K
output frequency 1
L-Band: 950 - 2125 MHz
product family
8000RI Series
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 70 dB max.
input VSWR
2.5 : 1
lo frequency 1
5.75 GHz
output VSWR
2.5 : 1
INTERFACE SPECIFICATIONS
RF input connector
CPR 229G waveguide grooved
RF output connector
F-75 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
Weight
450g

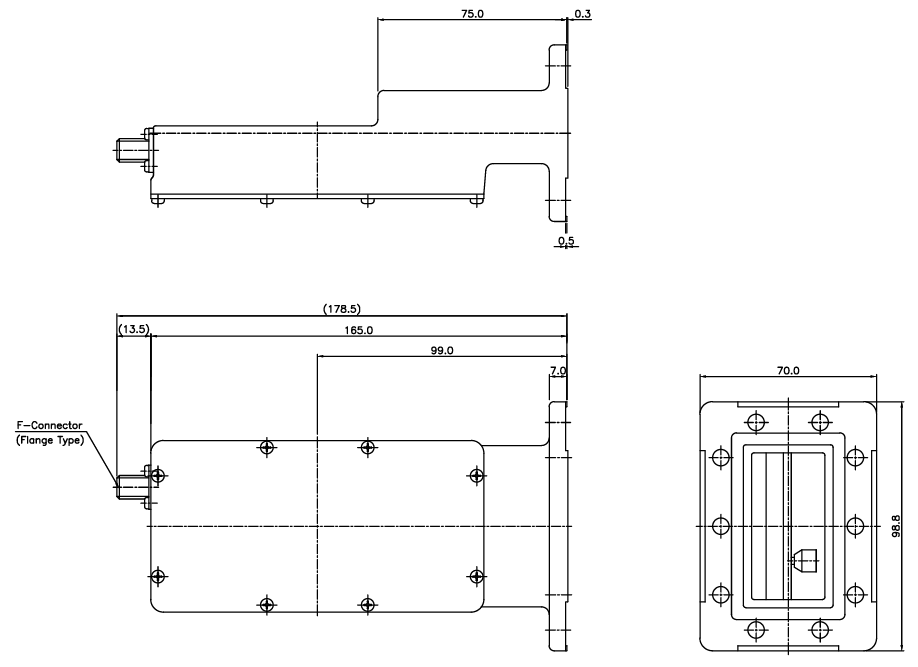

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)
180 x 100 x 70 mm
KEY SPECIFICATIONS
band
C-Band
input frequency band 1
C-Band: 3.625 - 4.80 GHz
lo stability
+/- 500 kHz
lo type
DRO
noise figure
30K
output frequency 1
L-Band: 950 - 2125 MHz
product family
8000RI Series
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 70 dB max.
input VSWR
2.5 : 1
lo frequency 1
5.75 GHz
output VSWR
2.5 : 1
INTERFACE SPECIFICATIONS
RF input connector
CPR 229G waveguide grooved
RF output connector
N-50 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-50 to +70°C
Weight
450g
PHYSICAL SPECIFICATIONS
dimensions (LxWxH)
180 x 100 x 70 mm
INFORMATION
HS Code
8517690000
Country of Origin
KR
ECCN Number
EAR99
Shipping Package Dimensions
180 x 100 x 70 mm
Shipping Package Weight
660g
8000RI-Spec-Sheet.pdf
