9000 Ka-Simultaneous Dual Band PLL LNB
9000 Ka-Simultaneous Dual Band PLL LNB

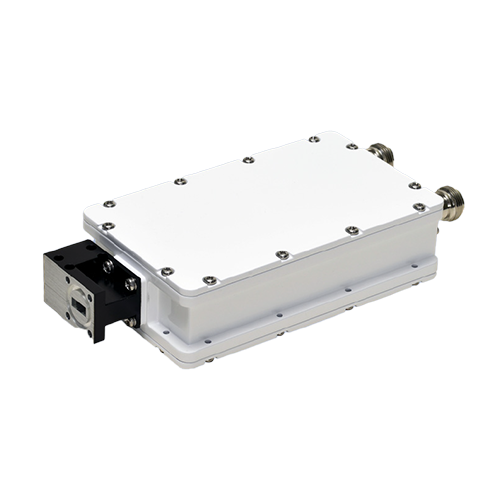

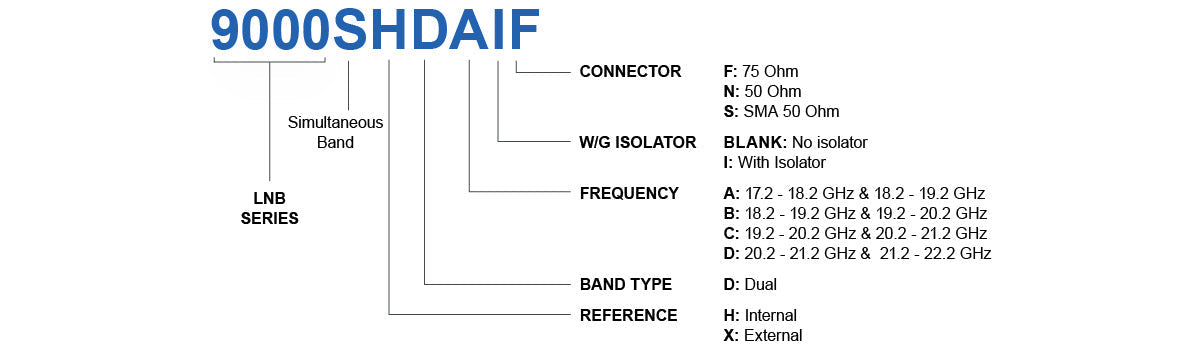

9000SHDAF

9000 Ka-Simultaneous Dual Band PLL LNB

9000 Series

Precio habitual
$4,078.43
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 17.20 - 18.20 GHz
input frequency band 2 18.20 - 19.20 GHz
LO frequency 1 16.25 GHz
LO frequency 2 17.25 GHz
LO stability ±10 kHz
noise figure max 1.8 dB
number of onboard LOs Simultaneous Dual Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55dB
conversion gain typ 60 dB
Gain Flatness (Over Any 36MHz) 1 dB p-p
Gain Flatness (over full band) 4 dB p-p
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB 5 dBm min.
output VSWR 2.2 : 1 max.
phase noise 100Hz offset max -65 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 1kHz offset max -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
IF connector F Connector
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
isolator No Isolator
RF input connector WR 42
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C
PHYSICAL SPECIFICATIONS

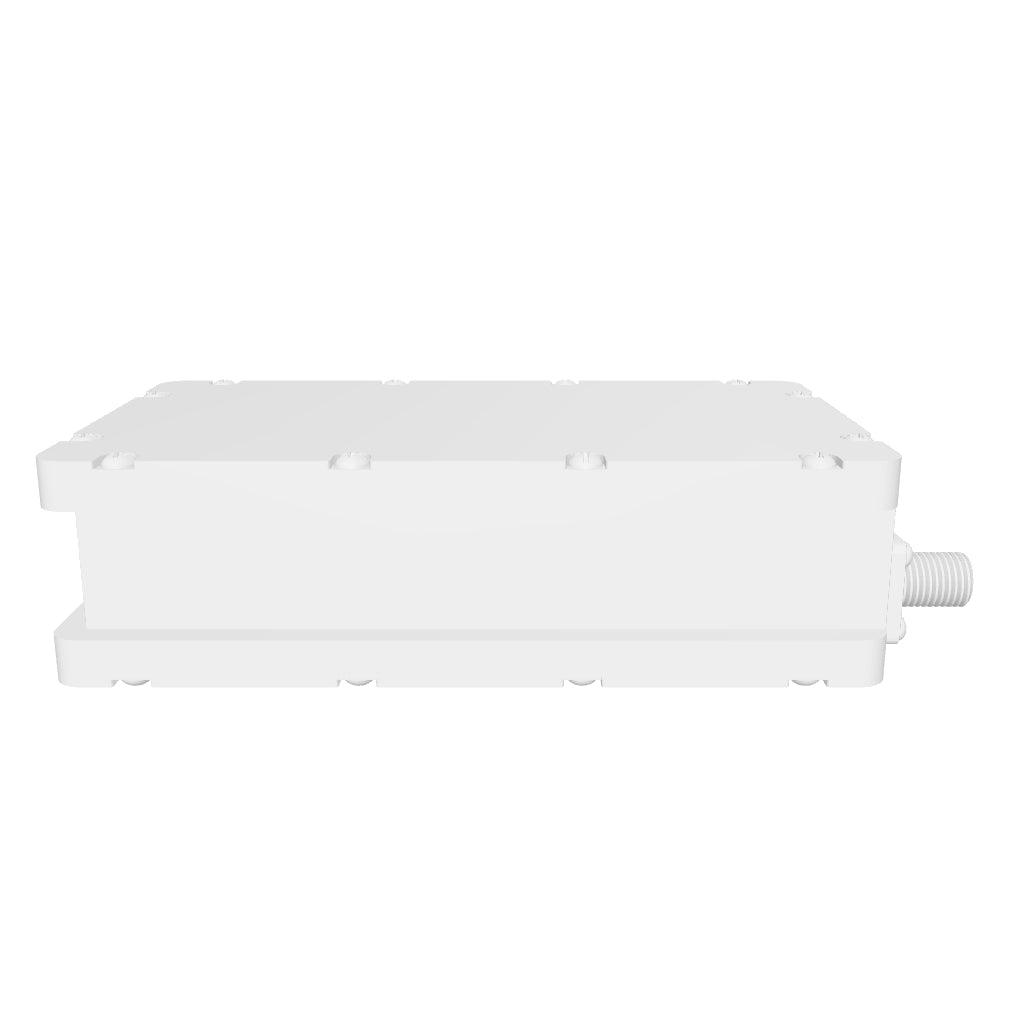

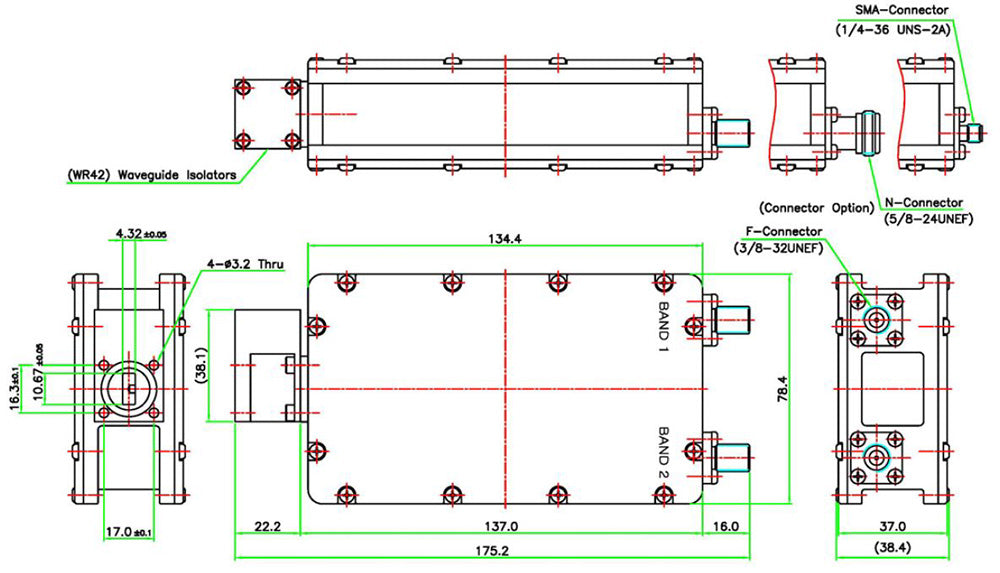

product dimensions (LxWxH) 38.4 x 78.4 x 159.2 mm
product weight 0.75 kg
