ANCHOR 1.8m Ku-Band Earth Station Antenna
ANCHOR 1.8m Ka-Band Earth Station Antenna

ESES180KU2

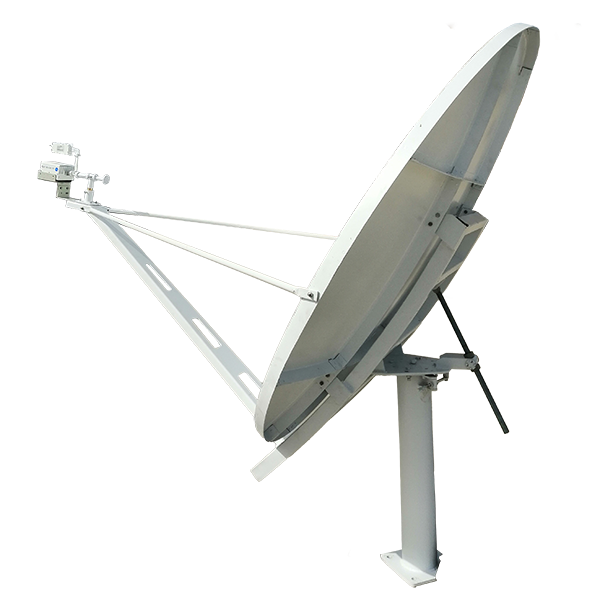

ANCHOR 1.8m Ku-Band Earth Station Antenna

Anchor

Precio habitual
$4,740.74
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales
Ex Works: China

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



KEY SPECIFICATIONS
band Ku-Band
ANTENNA SPECIFICATIONS
Antenna Aperture 1.8m
antenna drive mode manual structure antenna
antenna type Single Offset
number of ports 2-ports
polarization Linear
Rx axis ratio ≤35 dB
sidelobe 29 - 25 logθ(1°≤θ<20°)
Tx axis ratio ≤35 dB
RF SPECIFICATIONS
noise temperature elevation 10° 43 K
noise temperature elevation 20° 36 K
noise temperature elevation 40° 32 K
port isolation Rx-Tx 85 dB
Rx feed insertion loss ≤0.2 dB
Rx frequency 10.70 ‐ 12.75 GHz
rx gain 45.22 dBi @ 12.5GHz
Rx VSWR 1.25 : 1
Tx feed insertion loss ≤0.2 dB
Tx frequency 13.75 ‐ 14.50 GHz
tx gain 46.6 dBi @ 12.25GHz
Tx VSWR 1.25 : 1
ELECTRICAL SPECIFICATIONS
power capacity 2 KW
INTERFACE SPECIFICATIONS
Rx interface WR-75
Tx interface WR-75
ENVIRONMENTAL SPECIFICATIONS
humidity 1.0
ice load Icing 13mm: normal work; Icing 25mm: no damage
seismic capacity horizontal 0.3 G
seismic capacity vertical 0.1 G
temperature operational -30 - 50℃
windspeed operational 72 km/h
windspeed survival 216 km/h
PHYSICAL SPECIFICATIONS
motion range AZ 0° - 360° (continuous)
motion range EL 5° - 90°
motion range POL ±90°
product dimensions (LxWxH) Case 1 (reflector): 2050 x 1950 x 520mm; Case 2 (kingpost): 1155 x 450 x 535 mm;
RMS ≤0.5 mm
structure EL Over AZ
