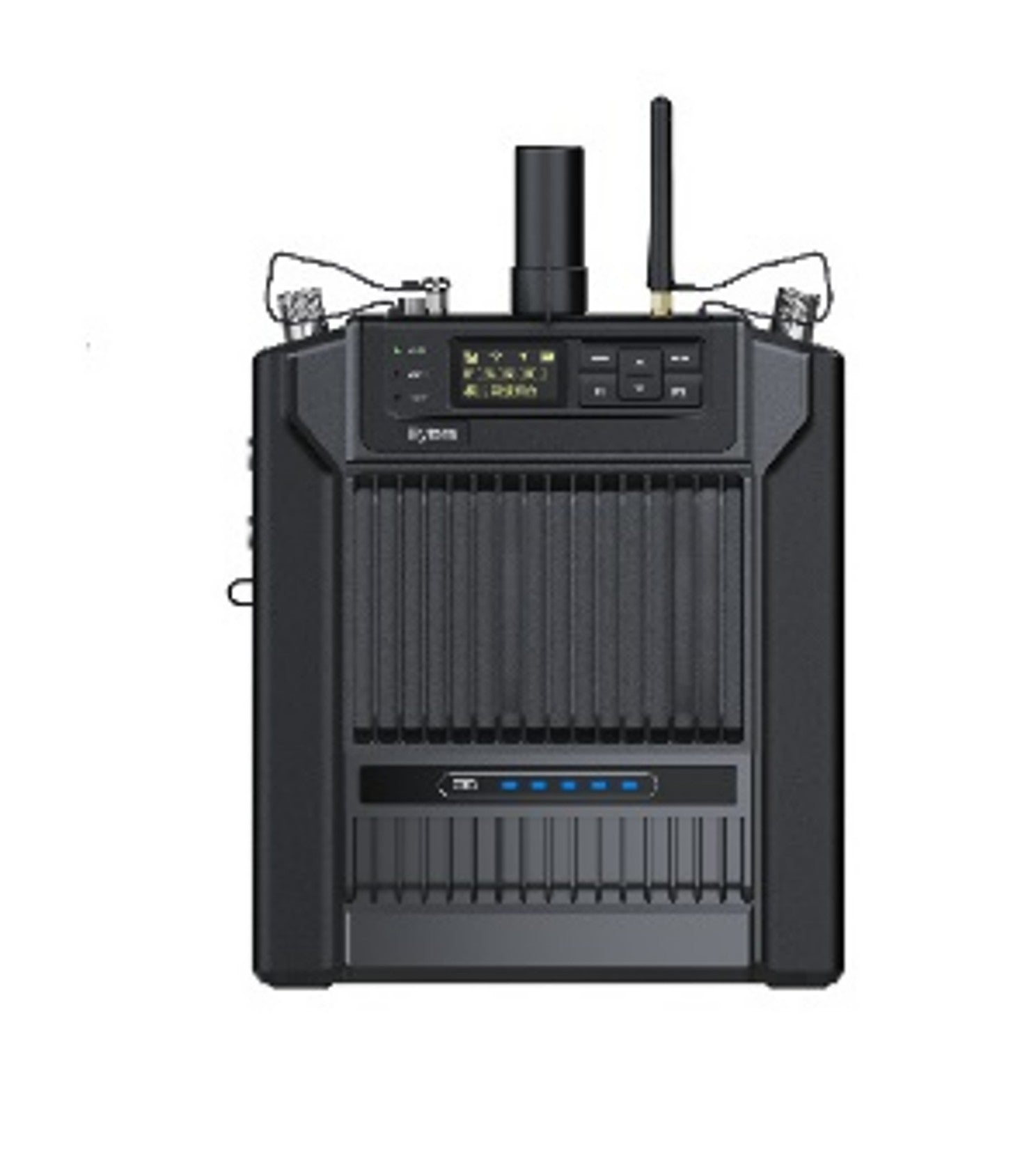

Name: E-mesh580P - iMesh Portable Backpack
Brand: Norsat International Inc.
SKU: E-mesh580P-580MHz
Price: 52780.00 USD
Availability: InStock

E-mesh580P-580MHz

E-mesh580P - iMesh Portable Backpack

Broadband Product

$52,780.00

Quantity Available: 0

Next Availability: Not Applicable

Next Availability Lead Time: Contact Sales

Ex Works: China

(Scroll to see specifications and documents)

[{"id":51694252753263,"title":"580 MHz","option1":"580 MHz","option2":null,"option3":null,"sku":"E-mesh580P-580MHz","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"E-mesh580P - iMesh Portable Backpack - 580 MHz","public_title":"580 MHz","options":["580 MHz"],"price":5278000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51694252786031,"title":"1.4 GHz","option1":"1.4 GHz","option2":null,"option3":null,"sku":"E-mesh580P-1.4GHz","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"E-mesh580P - iMesh Portable Backpack - 1.4 GHz","public_title":"1.4 GHz","options":["1.4 GHz"],"price":5278000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

GENERAL
band width	5MHz, 10MHz, 20MHz
battery	144 Wh
battery life	> 14 hours (conventional services)
bluetooth	Yes
dimensions (HxWxD)	211 x 239.9 x 70.7 mm (without the plug)
display	OLED (non-touchscreen)
frequency range	580 MHz
node capacity	32
notification method	LED indicator, OLED display, beep alert
operational voltage	+12 to +24 V DC
weight	< 3.5 kg (with the battery)

GPS
GNSS	YES

RECEIVER
digital sensitivity	≤-105dBm@10MHz
RF modulation	OFDM
RF path	2T2R(2 Independent RF Chains)

TRANSMITTER
RF power output high	2 x 5 W (typical)

ENVIRONMENTAL
dust and water ingress	IP67 Standard
humidity	5% - 100%RH
operating temperature	-30°C to +55°C

INFORMATION
HS Code	8517611090
Country of Origin	Made in China
Ex Works	China
ECCN Number	3A991.b.1.a
Warranty	3 years
Unit Package Dimensions	354 x 276 x 210 mm
Unit Package Weight	4.01 kg
