ELEMENT BUC de banda Ka de 16 W
ELEMENT BUC de banda Ka de 16 W
ELEMENT BUC de banda Ka de 16 W

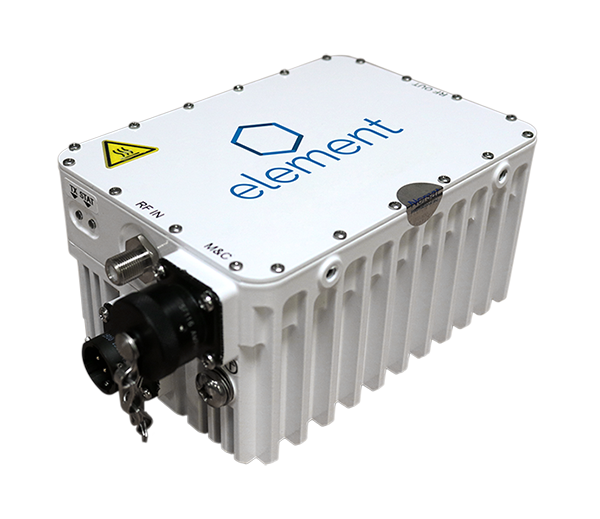

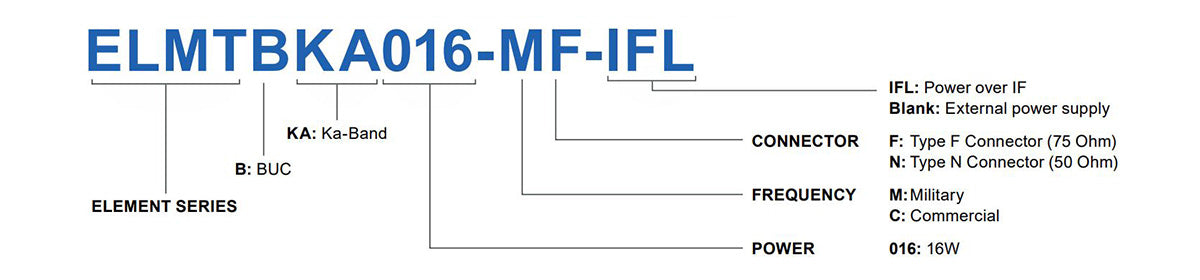

ELMTBKA016-CF-IFL

ELEMENT BUC de banda Ka de 16 W

ELMTBKA016 Series

Precio habitual
$8,960.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



Las soluciones de comunicación satelital de Norsat son reconocidas por su alta calidad, confiabilidad e innovación. La serie Ka ELEMENT ofrece tamaño y peso pequeños con una variedad de opciones de frecuencia que la hacen ideal para aplicaciones VSAT.

KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1950 MHz
LO frequency 1 28.05 GHz
output frequency band 1 29.0 - 30.0 GHz
Product Revision C
RF SPECIFICATIONS
Gain Flatness (over any 40MHz) ≤ 1.0 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
linear gain max 70 dB
linear gain min 60 dB
linear gain typ 65 dB
linear power plin 39 dBm min.
noise power density -70 dBm/Hz in Tx, -157 dBm/Hz in Rx
output P1dB 42 dBm min.
output power psat 42 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band ≤ -55 dBc
output VSWR 2.0 : 1 max.
phase noise 100Hz offset max -73 dBc/Hz
phase noise 100kHz offset max -93 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 1kHz offset max -73 dBc/Hz
phase noise 1MHz offset max -103 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 120W max.
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, PT02E-12-4P
power consumption 140W max.
power requirements +28 to +72V DC
protection rating IP55
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF output connector WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 8 - 100% condensing
temperature operational -40 to +60°C
temperature storage -50 to +70°C
PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket, Mating Connectors for Power and M&C

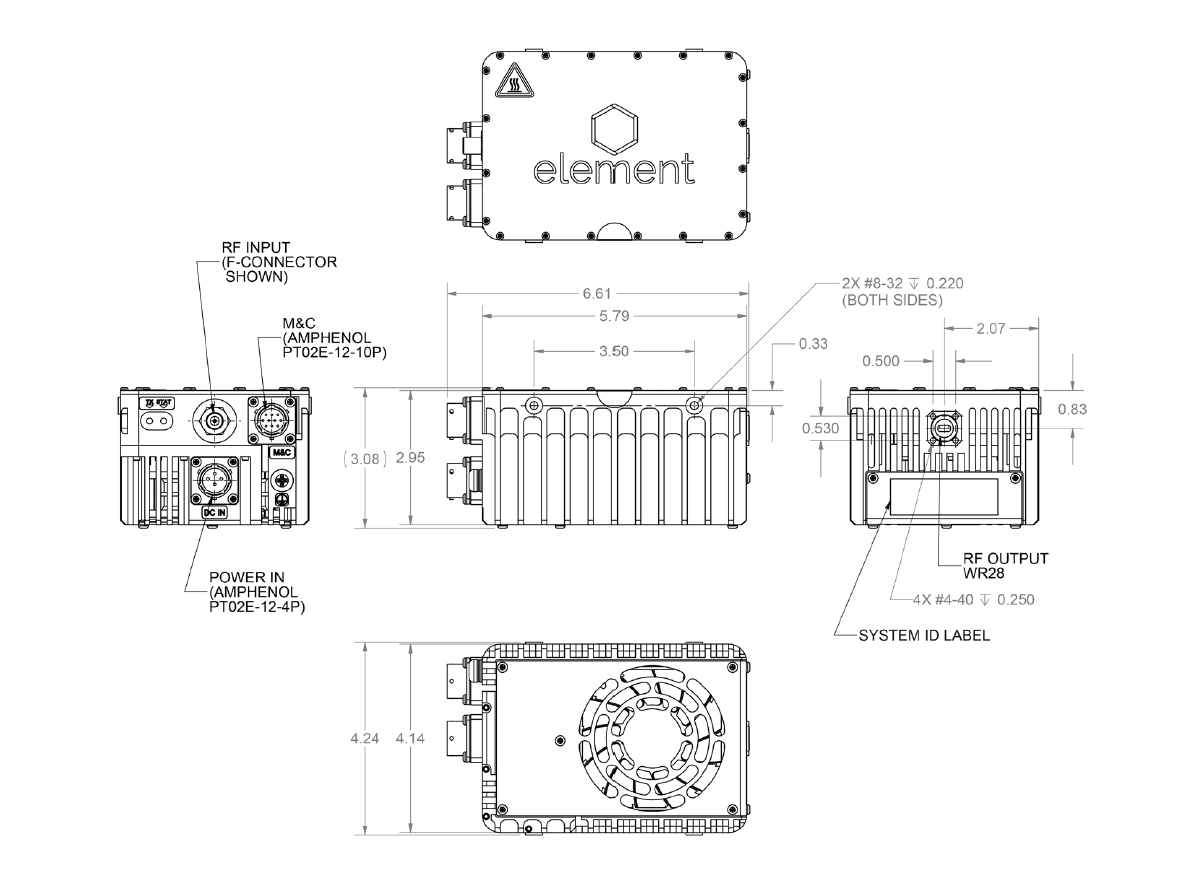

product dimensions (LxWxH) 168 x 108 x 78 mm
product weight 1.5 kg
ACCESSORIES
db9 to usb adaptor USB-RS485
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS300-AT1-(NA/UK/EU/IEC/CN/AU)
