KEY SPECIFICATIONS
frequency
L-Band: 950 - 2150 MHz
noise figure
5 dB max.
Product Revision
E
RF SPECIFICATIONS
conversion gain
6 dB min. to 35 dB max.
Gain Flatness (over full band)
≤ 4 dB p-p
input VSWR
2.2 : 1 max.
output P1dB
+ 2 dBm min.
output VSWR
2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption
175 mA max.
input requirement
-85 to -40 dBm (nominal); -30 dBm max. -5 dBm (no damage for duration 5 seconds max.)
INTERFACE SPECIFICATIONS
RF input connector
N: 50 Ohm
RF output connector
N: 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-30 to +50˚C
temperature storage
-40 to +70˚C

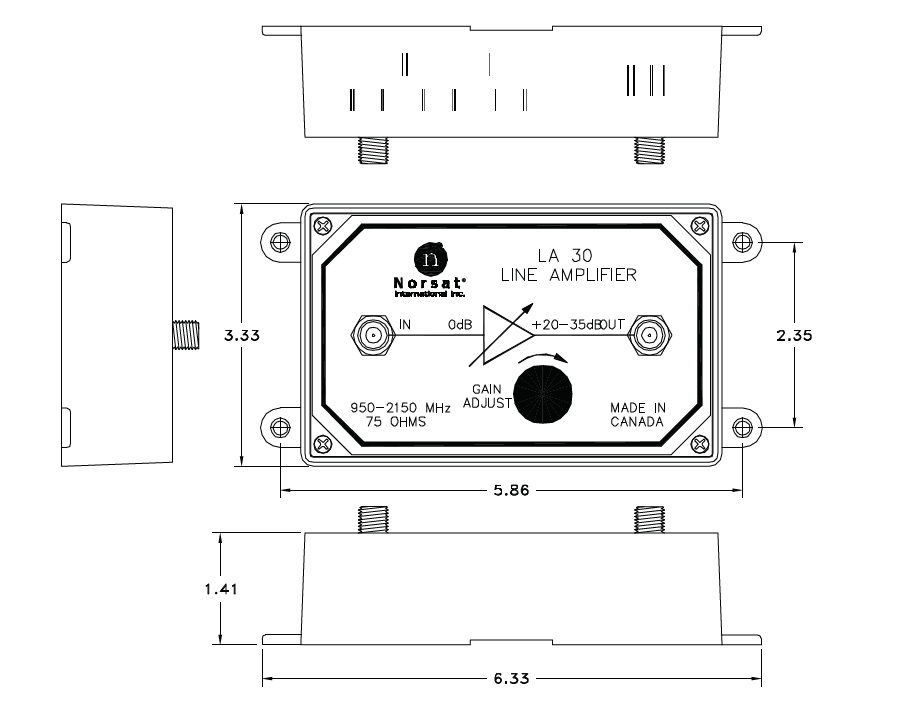

PHYSICAL SPECIFICATIONS
product height
51 mm
product length
161 mm
product weight
0.5 kg
product width
85 mm
KEY SPECIFICATIONS
frequency
L-Band: 950 - 2150 MHz
noise figure
5 dB max.
Product Revision
B
RF SPECIFICATIONS
conversion gain
6 dB min. to 35 dB max.
Gain Flatness (over full band)
≤ 4 dB p-p
input VSWR
2.2 : 1 max.
output P1dB
+ 2 dBm min.
output VSWR
2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption
175 mA max.
input requirement
-85 to -40 dBm (nominal); -30 dBm max. -5 dBm (no damage for duration 5 seconds max.)
INTERFACE SPECIFICATIONS
RF input connector
F: 75 Ohm
RF output connector
F: 75 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-30 to +50˚C
temperature storage
-40 to +70˚C
PHYSICAL SPECIFICATIONS
product height
51 mm
product length
161 mm
product weight
0.5 kg
product width
85 mm
Please log in
Please log in
Please log in
INFORMATION
HS Code
8517690000
Country of Origin
Made in Canada
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Warranty
3 years
Unit Package Dimensions
195 mm x 100 mm x 60 mm
Unit Package Weight
0.5 kg
