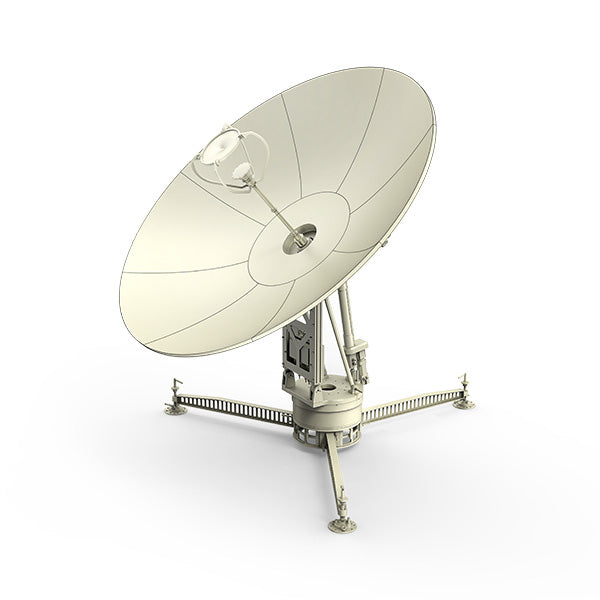

Name: WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward
Brand: Norsat International Inc.
SKU: WFA240KAF
Price: 145750.00 USD
Availability: InStock

WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward

WFA240KAF

WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":51747508486511,"title":"Ka-Band","option1":"Ka-Band","option2":null,"option3":null,"sku":"WFA240KAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward - Ka-Band","public_title":"Ka-Band","options":["Ka-Band"],"price":14575000,"weight":0,"compare_at_price":14575000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51747508519279,"title":"Ku-Band","option1":"Ku-Band","option2":null,"option3":null,"sku":"WFA240KUF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward - Ku-Band","public_title":"Ku-Band","options":["Ku-Band"],"price":13750000,"weight":0,"compare_at_price":13750000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51747508552047,"title":"X-Band","option1":"X-Band","option2":null,"option3":null,"sku":"WFA240XF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward - X-Band","public_title":"X-Band","options":["X-Band"],"price":13750000,"weight":0,"compare_at_price":13750000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51747508584815,"title":"C-Band","option1":"C-Band","option2":null,"option3":null,"sku":"WFA240CF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward - C-Band","public_title":"C-Band","options":["C-Band"],"price":13750000,"weight":0,"compare_at_price":13750000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51747508617583,"title":"Multi-Band","option1":"Multi-Band","option2":null,"option3":null,"sku":"WFAQ240F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WAYFARER 2.4m Auto Flyaway Antenna - Feed Forward - Multi-Band","public_title":"Multi-Band","options":["Multi-Band"],"price":15125000,"weight":0,"compare_at_price":15125000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
antenna aperture	2.4 m
antenna category	Auto Flyaway
band	Ka-Band
number of onboard Los	Single-Band
Product Revision	A

ANTENNA SPECIFICATIONS
antenna type	Feed Forward
cross polarization isolation	25 dB
motion range AZ	±220°
motion range EL	0° - 90°
polarization	Circular
sidelobe	≤-14dB

RF SPECIFICATIONS
port isolation Rx-Tx	≥85dB
port isolation Tx-Rx	≥40dB
power capacity	≤1000 W
Rx frequency	17.70 - 21.20 GHz
rx gain	51.2+20lg(f/20)
Rx interface	WR42
Rx VSWR	≤ 1.5 : 1
Tx frequency	29.00 - 31.00 GHz
tx gain	54.8+20lg(f/30)
Tx interface	WR28
Tx VSWR	≤ 1.5 : 1

ENVIRONMENTAL SPECIFICATIONS
humidity	95%（20°C）
IP rating	IP65
temperature operational	-40°C to +60°C
temperature storage	-60°C to +70°C
windspeed operational	13m/s
windspeed survival	20m/s

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8529109090
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
