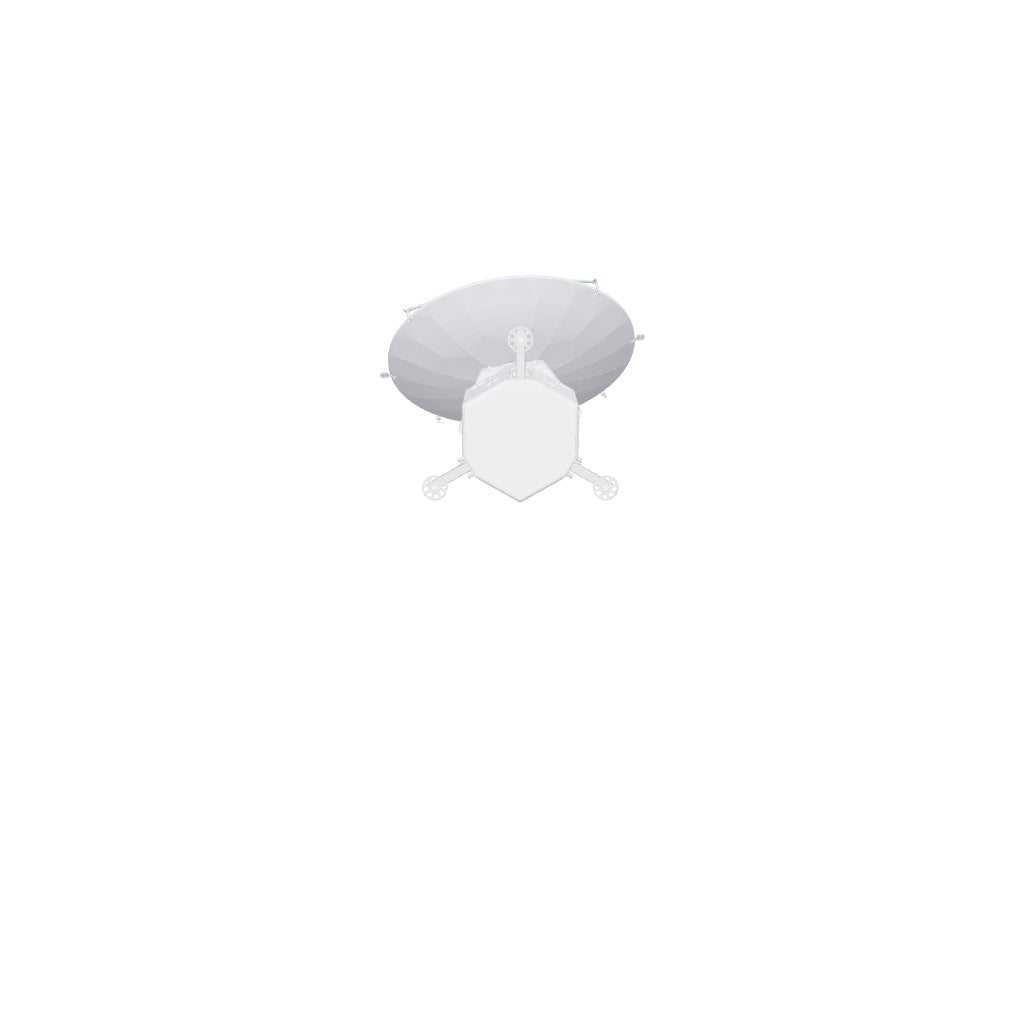

![WAYFARER 2.4m Box Automatically Transportable Antenna - Feed Forward]()
![WAYFARER 2.4m Box Automatically Transportable Antenna - Feed Forward]()
KEY SPECIFICATIONS |
antenna category |
On the Move |
band |
Ka-Band |
number of onboard Los |
Single-Band |
ANTENNA SPECIFICATIONS |
antenna aperture |
2.4m |
antenna type |
Feed Forward |
cross polarization isolation |
25 dB |
motion range AZ |
±180° |
motion range EL |
0° - 90° |
polarization |
Circular |
sidelobe |
≤-14dB |
RF SPECIFICATIONS |
port isolation Rx-Tx |
≥85dB |
port isolation Tx-Rx |
≥40dB |
power capacity |
≤1000W |
Rx frequency |
17.70 - 21.20 GHz |
rx gain |
51.2+20lg(f/20) |
Rx interface |
WR42 |
Rx VSWR |
≤ 1.5 : 1 |
Tx frequency |
29.00 - 31.00 GHz |
tx gain |
54.8+20lg(f/30) |
Tx interface |
WR28 |
Tx VSWR |
≤ 1.5 : 1 |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
95%(20°C) |
IP rating |
IP65 |
temperature operational |
-40°C to +60°C |
temperature storage |
-60°C to +70°C |
windspeed operational |
13m/s |
windspeed survival |
20m/s |
PHYSICAL SPECIFICATIONS |
product weight |
191.6 kg |
KEY SPECIFICATIONS |
antenna category |
On the Move |
band |
Ka-Band |
number of onboard Los |
Single-Band |
ANTENNA SPECIFICATIONS |
antenna aperture |
2.4m |
antenna type |
Feed Forward |
cross polarization isolation |
30 dB |
motion range AZ |
±180° |
motion range EL |
0° - 90° |
motion range POL |
±90° |
polarization |
Linear |
sidelobe |
≤-14dB |
RF SPECIFICATIONS |
port isolation Rx-Tx |
≥85dB |
port isolation Tx-Rx |
≥40dB |
power capacity |
≤1000W |
Rx frequency |
10.95 - 12.75 GHz |
rx gain |
47+20lg(f/12.25) |
Rx interface |
WR75 |
Rx VSWR |
≤ 1.35 : 1 |
Tx frequency |
13.75 - 14.50 GHz |
tx gain |
48+20lg(f/14.25) |
Tx interface |
WR75 |
Tx VSWR |
≤ 1.35 : 1 |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
95%(20°C) |
IP rating |
IP65 |
temperature operational |
-40°C to +60°C |
temperature storage |
-60°C to +70°C |
windspeed operational |
13m/s |
windspeed survival |
20m/s |
PHYSICAL SPECIFICATIONS |
product weight |
191.6 kg |
KEY SPECIFICATIONS |
antenna category |
On the Move |
band |
Ka-Band |
number of onboard Los |
Single-Band |
ANTENNA SPECIFICATIONS |
antenna aperture |
2.4m |
antenna type |
Feed Forward |
cross polarization isolation |
25 dB |
motion range AZ |
±180° |
motion range EL |
0° - 90° |
polarization |
Circular |
sidelobe |
≤-14dB |
RF SPECIFICATIONS |
port isolation Rx-Tx |
≥85dB |
port isolation Tx-Rx |
≥40dB |
power capacity |
≤1000W |
Rx frequency |
7.25 - 7.75 GHz |
rx gain |
43+20lg(f/7.5) |
Rx interface |
WR112 |
Rx VSWR |
≤ 1.35 : 1 |
Tx frequency |
7.90 - 8.40 GHz |
tx gain |
44+20lg(f/8.15) |
Tx interface |
WR112 |
Tx VSWR |
≤ 1.35 : 1 |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
95%(20°C) |
IP rating |
IP65 |
temperature operational |
-40°C to +60°C |
temperature storage |
-60°C to +70°C |
windspeed operational |
13m/s |
windspeed survival |
20m/s |
PHYSICAL SPECIFICATIONS |
product weight |
191.6 kg |
KEY SPECIFICATIONS |
antenna category |
On the Move |
band |
Ka-Band |
number of onboard Los |
Single-Band |
ANTENNA SPECIFICATIONS |
antenna aperture |
2.4m |
antenna type |
Feed Forward |
cross polarization isolation |
30 dB |
motion range AZ |
±180° |
motion range EL |
0° - 90° |
motion range POL |
±90° |
polarization |
Linear |
sidelobe |
≤-14dB |
RF SPECIFICATIONS |
port isolation Rx-Tx |
≥85dB |
port isolation Tx-Rx |
≥40dB |
power capacity |
≤1000W |
Rx frequency |
3.40 - 4.20 GHz |
rx gain |
37+20lg(f/3.8) |
Rx interface |
WR229 |
Rx VSWR |
≤ 1.35 : 1 |
Tx frequency |
5.85 - 6.725 GHz |
tx gain |
41+20lg(f/6.3) |
Tx interface |
WR137 |
Tx VSWR |
≤ 1.35 : 1 |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
95%(20°C) |
IP rating |
IP65 |
temperature operational |
-40°C to +60°C |
temperature storage |
-60°C to +70°C |
windspeed operational |
13m/s |
windspeed survival |
20m/s |
PHYSICAL SPECIFICATIONS |
product weight |
191.6 kg |
KEY SPECIFICATIONS |
antenna category |
On the Move |
band |
Ku-Band & Ka-Band & X-Band & C-Band |
number of onboard Los |
Multi-Band |
ANTENNA SPECIFICATIONS |
antenna aperture |
2.4m |
antenna type |
Feed Forward |
motion range AZ |
±180° |
motion range EL |
0° - 90° |
polarization |
Linear&Circular |
sidelobe |
≤-14dB |
RF SPECIFICATIONS |
port isolation Rx-Tx |
≥85dB |
port isolation Tx-Rx |
≥40dB |
power capacity |
≤1000W |
ENVIRONMENTAL SPECIFICATIONS |
humidity |
95%(20°C) |
IP rating |
IP65 |
temperature operational |
-40°C to +60°C |
temperature storage |
-60°C to +70°C |
windspeed operational |
13m/s |
windspeed survival |
20m/s |
PHYSICAL SPECIFICATIONS |
product weight |
191.6 kg |
Please log in to view additional documents.
Please log in to view additional documents.
Please log in to download the files.
INFORMATION |
HS Code |
8529109090 |
Country of Origin |
Made in China |
Ex Works |
China |
ECCN Number |
EAR99 |
Warranty |
1 year |
Unit Package Dimensions |
- |
Unit Package Weight |
234.8 kg |
