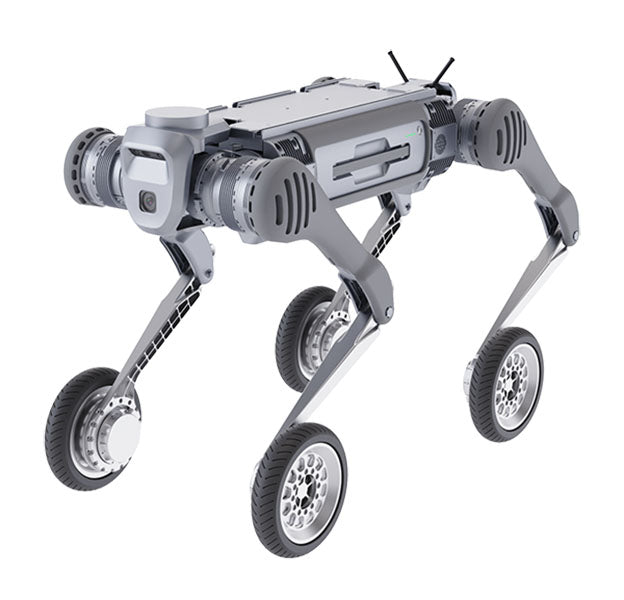

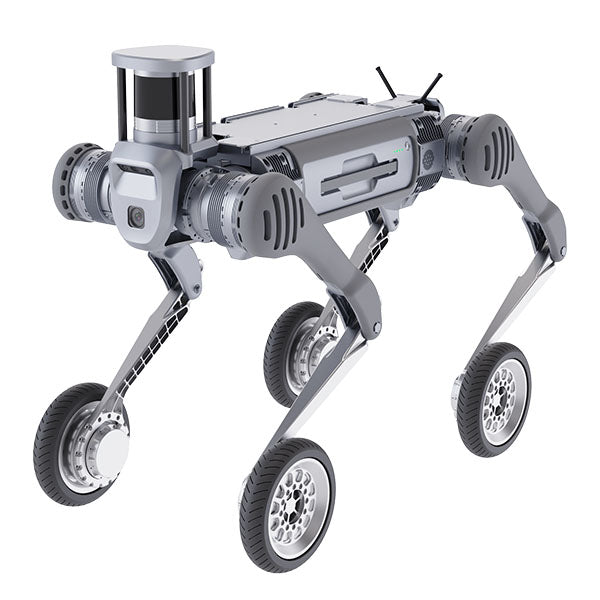

Go Further with Higher Efficiency - Quadruped Robot
Go Further with Higher Efficiency - Quadruped Robot

GQR0440-W

Go Further with Higher Efficiency - Quadruped Robot

GROUND GUARDIAN

Sale price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!



KEY SPECIFICATIONS
climbing ability Climb up and down stairs of 40cm in forward direction
climbing angle > 45°
continuous stair climbing Stairs of 20-25 cm
maximum horizontal pulling force 15 km/h
maximum wheel speed 50 rad/s
maximum wheel torque 40 N.m
standing load 120 kg max.
walking load > 40 kg
Product Revision A
ELECTRICAL SPECIFICATIONS
battery capacity >2 kwh
battery voltage 58 V
endurance ability Maximum endurance of 25km with 40kg load; Maximum endurance without load > 4h, and the mileage ≈70km
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -20℃ to 55℃
PHYSICAL SPECIFICATIONS
control and perception Standard configuration: Intel Core i5(Platform Function) ,Intel Core i7(User Development); Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)
lying prone height 450 mm
lying prone length 950 mm
lying prone width 550 mm
product weight 85 kg (battery included)
standing height 758 mm
standing length 1098 mm
standing width 550 mm
wheel diameter 225 mm
