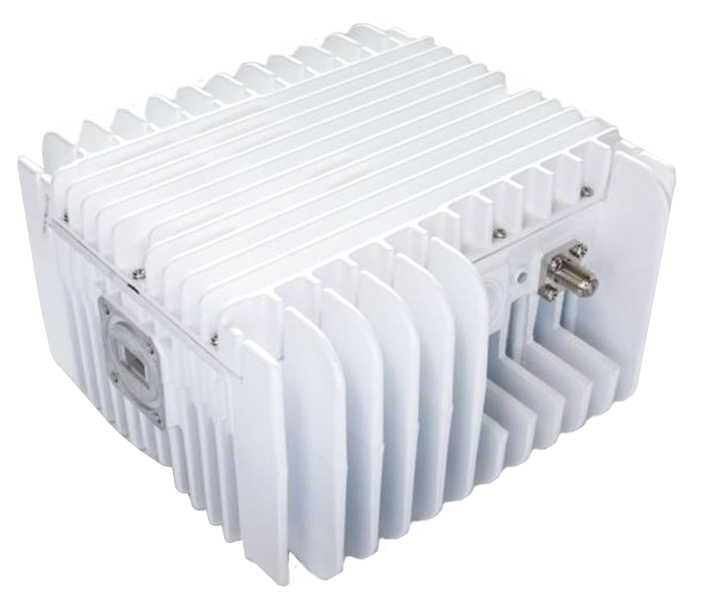

Name: ELEMENT 8W Ku-Band MINIBUC
Brand: Norsat International Inc.
SKU: ELMTBKU008-SF
Price: 4506.17 USD
Availability: InStock

ELMTBKU008-SF

ELEMENT 8W Ku-Band MINIBUC

ELMTBKU008 Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":42199898947767,"title":"S: 14.00 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC via IFL","option1":"S: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - S: 14.00 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC via IFL","public_title":"S: 14.00 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC via IFL","options":["S: 14.00 - 14.50 GHz","F-Connector","+18V to +60V DC via IFL"],"price":450617,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962518199,"title":"S: 14.00 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC via IFL","option1":"S: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - S: 14.00 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC via IFL","public_title":"S: 14.00 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC via IFL","options":["S: 14.00 - 14.50 GHz","N-Connector","+18V to +60V DC via IFL"],"price":450617,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962550967,"title":"E: 13.75 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC via IFL","option1":"E: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-EF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - E: 13.75 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC via IFL","public_title":"E: 13.75 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC via IFL","options":["E: 13.75 - 14.50 GHz","F-Connector","+18V to +60V DC via IFL"],"price":413580,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962583735,"title":"E: 13.75 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC via IFL","option1":"E: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-EN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - E: 13.75 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC via IFL","public_title":"E: 13.75 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC via IFL","options":["E: 13.75 - 14.50 GHz","N-Connector","+18V to +60V DC via IFL"],"price":413580,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962616503,"title":"A: 12.75 - 13.25 GHz \/ N-Connector \/ +18V to +60V DC via IFL","option1":"A: 12.75 - 13.25 GHz","option2":"N-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - A: 12.75 - 13.25 GHz \/ N-Connector \/ +18V to +60V DC via IFL","public_title":"A: 12.75 - 13.25 GHz \/ N-Connector \/ +18V to +60V DC via IFL","options":["A: 12.75 - 13.25 GHz","N-Connector","+18V to +60V DC via IFL"],"price":631250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962649271,"title":"A: 12.75 - 13.25 GHz \/ F-Connector \/ +18V to +60V DC via IFL","option1":"A: 12.75 - 13.25 GHz","option2":"F-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - A: 12.75 - 13.25 GHz \/ F-Connector \/ +18V to +60V DC via IFL","public_title":"A: 12.75 - 13.25 GHz \/ F-Connector \/ +18V to +60V DC via IFL","options":["A: 12.75 - 13.25 GHz","F-Connector","+18V to +60V DC via IFL"],"price":631250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962682039,"title":"D: 14.50 - 14.80 GHz \/ N-Connector \/ +18V to +60V DC via IFL","option1":"D: 14.50 - 14.80 GHz","option2":"N-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-DN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - D: 14.50 - 14.80 GHz \/ N-Connector \/ +18V to +60V DC via IFL","public_title":"D: 14.50 - 14.80 GHz \/ N-Connector \/ +18V to +60V DC via IFL","options":["D: 14.50 - 14.80 GHz","N-Connector","+18V to +60V DC via IFL"],"price":531250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962714807,"title":"D: 14.50 - 14.80 GHz \/ F-Connector \/ +18V to +60V DC via IFL","option1":"D: 14.50 - 14.80 GHz","option2":"F-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-DF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - D: 14.50 - 14.80 GHz \/ F-Connector \/ +18V to +60V DC via IFL","public_title":"D: 14.50 - 14.80 GHz \/ F-Connector \/ +18V to +60V DC via IFL","options":["D: 14.50 - 14.80 GHz","F-Connector","+18V to +60V DC via IFL"],"price":531250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962747575,"title":"C: 13.75 - 14.25 GHz \/ N-Connector \/ +18V to +60V DC via IFL","option1":"C: 13.75 - 14.25 GHz","option2":"N-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-CN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - C: 13.75 - 14.25 GHz \/ N-Connector \/ +18V to +60V DC via IFL","public_title":"C: 13.75 - 14.25 GHz \/ N-Connector \/ +18V to +60V DC via IFL","options":["C: 13.75 - 14.25 GHz","N-Connector","+18V to +60V DC via IFL"],"price":456250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962780343,"title":"C: 13.75 - 14.25 GHz \/ F-Connector \/ +18V to +60V DC via IFL","option1":"C: 13.75 - 14.25 GHz","option2":"F-Connector","option3":"+18V to +60V DC via IFL","sku":"ELMTBKU008-CF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - C: 13.75 - 14.25 GHz \/ F-Connector \/ +18V to +60V DC via IFL","public_title":"C: 13.75 - 14.25 GHz \/ F-Connector \/ +18V to +60V DC via IFL","options":["C: 13.75 - 14.25 GHz","F-Connector","+18V to +60V DC via IFL"],"price":456250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962813111,"title":"S: 14.00 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","option1":"S: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-SF-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - S: 14.00 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","public_title":"S: 14.00 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","options":["S: 14.00 - 14.50 GHz","N-Connector","+18V to +60V DC MS Connector"],"price":456250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962845879,"title":"S: 14.00 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","option1":"S: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-SN-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - S: 14.00 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","public_title":"S: 14.00 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","options":["S: 14.00 - 14.50 GHz","F-Connector","+18V to +60V DC MS Connector"],"price":456250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962878647,"title":"E: 13.75 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","option1":"E: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-EF-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - E: 13.75 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","public_title":"E: 13.75 - 14.50 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","options":["E: 13.75 - 14.50 GHz","N-Connector","+18V to +60V DC MS Connector"],"price":418750,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962911415,"title":"E: 13.75 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","option1":"E: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-EN-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - E: 13.75 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","public_title":"E: 13.75 - 14.50 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","options":["E: 13.75 - 14.50 GHz","F-Connector","+18V to +60V DC MS Connector"],"price":418750,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346962976951,"title":"A: 12.75 - 13.25 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","option1":"A: 12.75 - 13.25 GHz","option2":"N-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-AN-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - A: 12.75 - 13.25 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","public_title":"A: 12.75 - 13.25 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","options":["A: 12.75 - 13.25 GHz","N-Connector","+18V to +60V DC MS Connector"],"price":631250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346963009719,"title":"A: 12.75 - 13.25 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","option1":"A: 12.75 - 13.25 GHz","option2":"F-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-AF-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - A: 12.75 - 13.25 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","public_title":"A: 12.75 - 13.25 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","options":["A: 12.75 - 13.25 GHz","F-Connector","+18V to +60V DC MS Connector"],"price":631250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346963042487,"title":"D: 14.50 - 14.80 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","option1":"D: 14.50 - 14.80 GHz","option2":"N-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-DN-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - D: 14.50 - 14.80 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","public_title":"D: 14.50 - 14.80 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","options":["D: 14.50 - 14.80 GHz","N-Connector","+18V to +60V DC MS Connector"],"price":531250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346963075255,"title":"D: 14.50 - 14.80 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","option1":"D: 14.50 - 14.80 GHz","option2":"F-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-DF-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - D: 14.50 - 14.80 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","public_title":"D: 14.50 - 14.80 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","options":["D: 14.50 - 14.80 GHz","F-Connector","+18V to +60V DC MS Connector"],"price":531250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346963108023,"title":"C: 13.75 - 14.25 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","option1":"C: 13.75 - 14.25 GHz","option2":"N-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-CN-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - C: 13.75 - 14.25 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","public_title":"C: 13.75 - 14.25 GHz \/ N-Connector \/ +18V to +60V DC MS Connector","options":["C: 13.75 - 14.25 GHz","N-Connector","+18V to +60V DC MS Connector"],"price":456250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42346963140791,"title":"C: 13.75 - 14.25 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","option1":"C: 13.75 - 14.25 GHz","option2":"F-Connector","option3":"+18V to +60V DC MS Connector","sku":"ELMTBKU008-CF-MS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 8W Ku-Band MINIBUC - C: 13.75 - 14.25 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","public_title":"C: 13.75 - 14.25 GHz \/ F-Connector \/ +18V to +60V DC MS Connector","options":["C: 13.75 - 14.25 GHz","F-Connector","+18V to +60V DC MS Connector"],"price":456250,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1450 MHz
LO frequency 1	13.05 GHz
output frequency band 1	14.00 - 14.50 GHz
output power rated	8W
Product Revision	B

RF SPECIFICATIONS
Gain Flatness (over 54MHz)	1.5 dB
Gain Flatness (over full band)	≤ 4 dB p-p
Gain Flatness (over temperature)	≤ 4 dB p-p
input VSWR	2.0 : 1 max.
linear gain max	70 dB
linear gain min	60 dB
linear gain typ	65 dB
output P1dB	39 dBm min.
output Psat	39.5 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band	≤ -50 dBc
output VSWR	2.0 : 1 max.
phase noise 100Hz offset max	-60 dBc/Hz
phase noise 100kHz offset max	-90 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
input power	via IFL
power consumption	75W max.
power requirements	+18 to +60V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
output connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	0-100% condensing
IP rating	IP 67
temperature operational	-40°C to +55°C

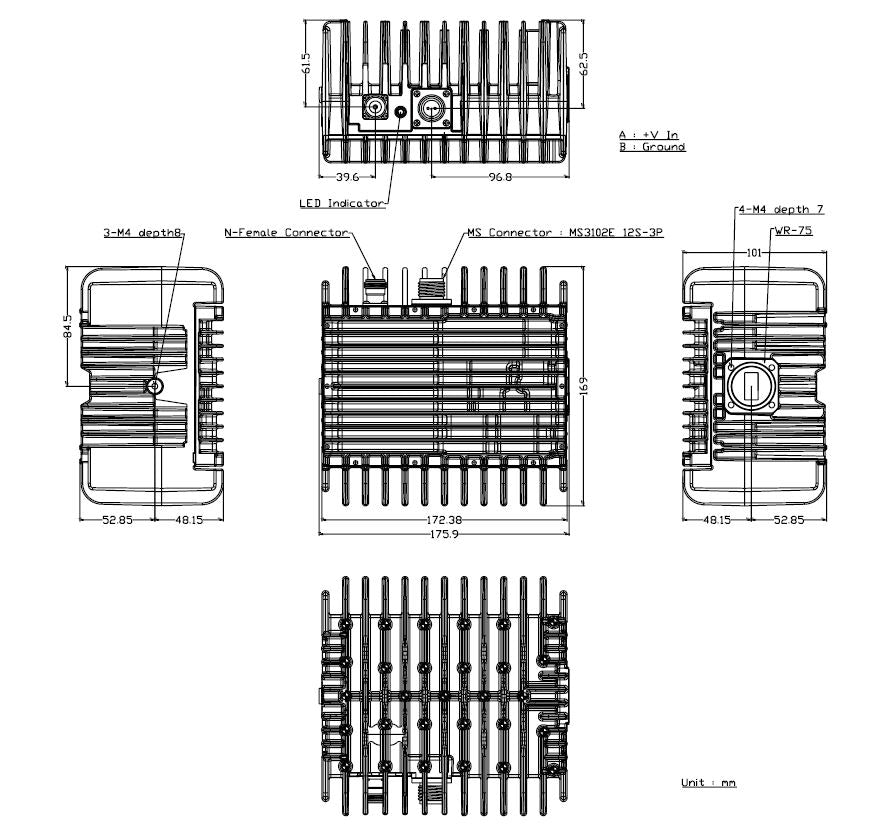

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket
product height	101 mm
product length	175.9 mm
product weight	2.7 kg
product width	169 mm

Customer Reviews

5.0 Based on 1 Reviews

5 ★

100%

4 ★

3 ★

2 ★

1 ★

Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

12/03/2024

Richard O.

United Kingdom

lightweight and versatile

The compact size and weight makes the installation of the 8W BUC easy, even on small antennas

ELEMENT 8W Ku-Band MINIBUC

Volver a Componentes de satélite

INTERFACE SPECIFICATIONS
IF connector	N-Connector
output connector	WR-75 waveguide grooved

ELECTRICAL SPECIFICATIONS
input power	via MS Connector
power consumption	75W max.
power requirements	+18 to +60V DC

INFORMATION
HS Code	8543700000
Country of Origin	Made in Korea
Ex Works	Korea
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	4.0 kg
COMPLIANCE
	Yes
	Yes
	Yes
