Name: 1000 Ku-Band Cuatribanda PLL LNB
Brand: Norsat International Inc.
SKU: 1208HUF
Price: 1056.00 USD
Availability: InStock

1208HUF

1000 Ku-Band Cuatribanda PLL LNB

1000HU Series

MSRP: $1,056.00

Quantity Available: 22

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

View Resellers Quantity

For more information, click on the Company's link below:

Satcom Resources: 0

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

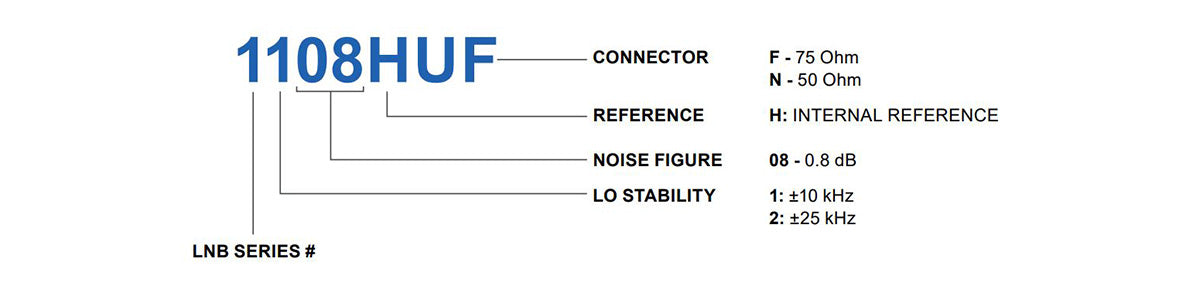

[{"id":41065888153783,"title":"±25 kHz \/ F: 75 Ohm","option1":"±25 kHz","option2":"F: 75 Ohm","option3":null,"sku":"1208HUF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Cuatribanda PLL LNB - ±25 kHz \/ F: 75 Ohm","public_title":"±25 kHz \/ F: 75 Ohm","options":["±25 kHz","F: 75 Ohm"],"price":105600,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41206620717239,"title":"±10 kHz \/ F: 75 Ohm","option1":"±10 kHz","option2":"F: 75 Ohm","option3":null,"sku":"1108HUF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Cuatribanda PLL LNB - ±10 kHz \/ F: 75 Ohm","public_title":"±10 kHz \/ F: 75 Ohm","options":["±10 kHz","F: 75 Ohm"],"price":107800,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41206620750007,"title":"±10 kHz \/ N: 50 Ohm","option1":"±10 kHz","option2":"N: 50 Ohm","option3":null,"sku":"1108HUN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Cuatribanda PLL LNB - ±10 kHz \/ N: 50 Ohm","public_title":"±10 kHz \/ N: 50 Ohm","options":["±10 kHz","N: 50 Ohm"],"price":112200,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41206620782775,"title":"±25 kHz \/ N: 50 Ohm","option1":"±25 kHz","option2":"N: 50 Ohm","option3":null,"sku":"1208HUN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"1000 Ku-Band Cuatribanda PLL LNB - ±25 kHz \/ N: 50 Ohm","public_title":"±25 kHz \/ N: 50 Ohm","options":["±25 kHz","N: 50 Ohm"],"price":110000,"weight":450000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Ku estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como proveedor líder de la industria de LNB de alto rendimiento. Serie 1000HU.

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	Ku-Band: 10.70 - 11.70 GHz
input frequency band 2	Ku-Band: 10.95 - 11.70 GHz
input frequency band 3	Ku-Band: 11.7 - 12.75 GHz
input frequency band 4	Ku-Band: 12.25 - 12.75 GHz
L.O. stability	+/- 25 kHz
L.O. type	PLL
noise figure	0.8 dB typ., 1.0 dB max.
output frequency 1	L-Band: 950 - 1950 MHz
output frequency 2	L-Band: 950 - 1700 MHz
output frequency 3	L-Band: 950 - 2000 MHz
output frequency 4	L-Band: 950 - 1450 MHz
tone frequency	22 kHz ± 4 kHz

RF SPECIFICATIONS
control signal 1	13 V
control signal 2	13 V / 22 KHz Tone
control signal 3	18 V
control signal 4	18 V / 22 KHz Tone
conversion gain	60 dB typ., 55 dB min., 65 dB max.
Gain Flatness (over full band)	5 dB p-p
input VSWR	2.5 : 1 max.
L.O. frequency 1	9.75 GHz
L.O. frequency 2	10.00 GHz
L.O. frequency 3	10.75 GHz
L.O. frequency 4	11.30 GHz
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100khz offset	-95 dBc/Hz
phase noise 10khz offset	-80 dBc/Hz
phase noise 1khz offset	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current drain	350 mA
power requirements	12 - 24 V

INTERFACE SPECIFICATIONS

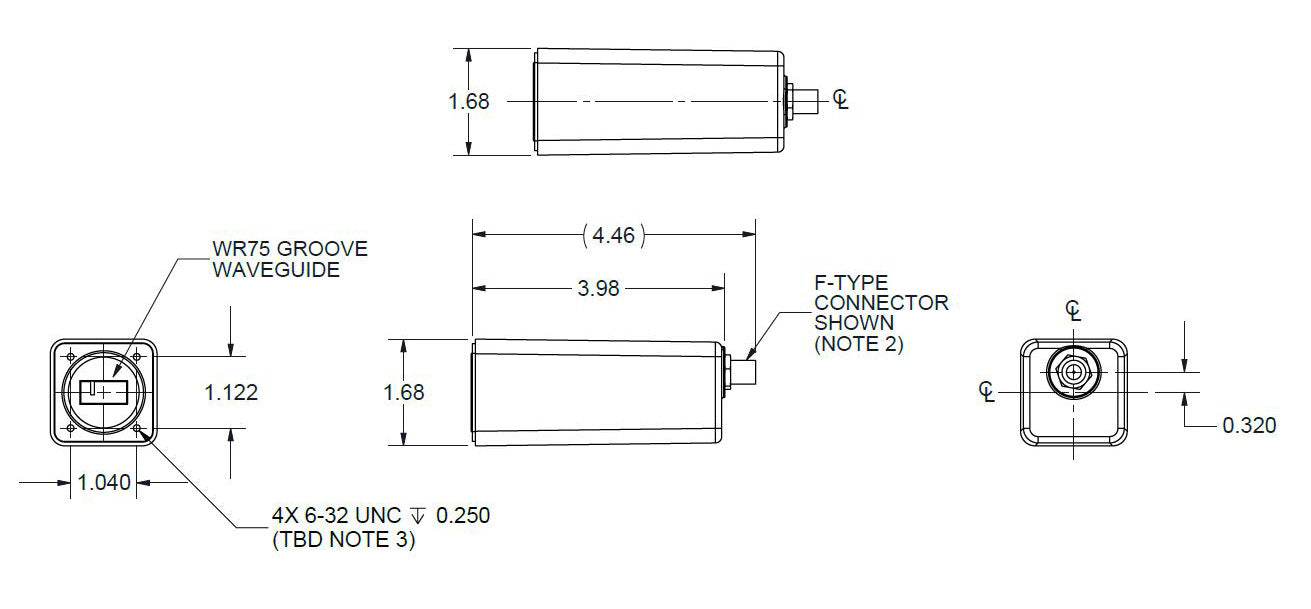

RF input connector	WR-75 waveguide grooved
RF output connector	F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C
Weight	450 g max.

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)	128 x 60 x 42 mm

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	Ku-Band: 10.70 - 11.70 GHz
input frequency band 2	Ku-Band: 10.95 - 11.70 GHz
input frequency band 3	Ku-Band: 11.7 - 12.75 GHz
input frequency band 4	Ku-Band: 12.25 - 12.75 GHz
L.O. stability	+/- 10 kHz
L.O. type	PLL
noise figure	0.8 dB typ., 1.0 dB max.
output frequency 1	L-Band: 950 - 1950 MHz
output frequency 2	L-Band: 950 - 1700 MHz
output frequency 3	L-Band: 950 - 2000 MHz
output frequency 4	L-Band: 950 - 1450 MHz
tone frequency	22 kHz ± 4 kHz

RF SPECIFICATIONS
control signal 1	13 V
control signal 2	13 V / 22 KHz Tone
control signal 3	18 V
control signal 4	18 V / 22 KHz Tone
conversion gain	60 dB typ., 55 dB min., 65 dB max.
Gain Flatness (over full band)	5 dB p-p
input VSWR	2.5 : 1 max.
L.O. frequency 1	9.75 GHz
L.O. frequency 2	10.00 GHz
L.O. frequency 3	10.75 GHz
L.O. frequency 4	11.30 GHz
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100khz offset	-95 dBc/Hz
phase noise 10khz offset	-80 dBc/Hz
phase noise 1khz offset	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current drain	350 mA
power requirements	12 - 24 V

INTERFACE SPECIFICATIONS

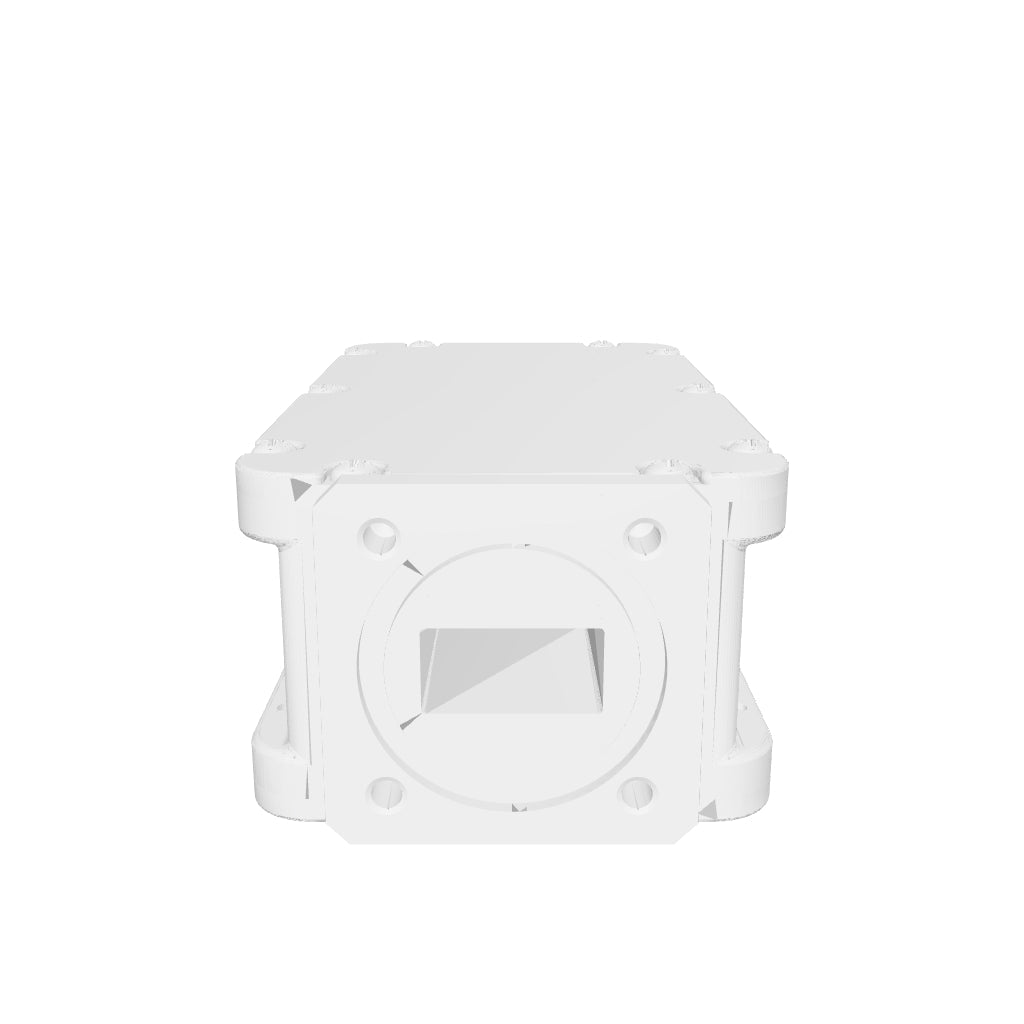

RF input connector	WR-75 waveguide grooved
RF output connector	F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C
Weight	450 g max.

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)	128 x 60 x 42 mm

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	Ku-Band: 10.70 - 11.70 GHz
input frequency band 2	Ku-Band: 10.95 - 11.70 GHz
input frequency band 3	Ku-Band: 11.7 - 12.75 GHz
input frequency band 4	Ku-Band: 12.25 - 12.75 GHz
L.O. stability	+/- 10 kHz
L.O. type	PLL
noise figure	0.8 dB typ., 1.0 dB max.
output frequency 1	L-Band: 950 - 1950 MHz
output frequency 2	L-Band: 950 - 1700 MHz
output frequency 3	L-Band: 950 - 2000 MHz
output frequency 4	L-Band: 950 - 1450 MHz
tone frequency	22 kHz ± 4 kHz

RF SPECIFICATIONS
control signal 1	13 V
control signal 2	13 V / 22 KHz Tone
control signal 3	18 V
control signal 4	18 V / 22 KHz Tone
conversion gain	60 dB typ., 55 dB min., 65 dB max.
Gain Flatness (over full band)	5 dB p-p
input VSWR	2.5 : 1 max.
L.O. frequency 1	9.75 GHz
L.O. frequency 2	10.00 GHz
L.O. frequency 3	10.75 GHz
L.O. frequency 4	11.30 GHz
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100khz offset	-95 dBc/Hz
phase noise 10khz offset	-80 dBc/Hz
phase noise 1khz offset	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current drain	350 mA
power requirements	12 - 24 V

INTERFACE SPECIFICATIONS
RF input connector	WR-75 waveguide grooved
RF output connector	N-50 Ohm

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C
Weight	450 g max.

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)	128 x 60 x 42 mm

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	Ku-Band: 10.70 - 11.70 GHz
input frequency band 2	Ku-Band: 10.95 - 11.70 GHz
input frequency band 3	Ku-Band: 11.7 - 12.75 GHz
input frequency band 4	Ku-Band: 12.25 - 12.75 GHz
L.O. stability	+/- 25 kHz
L.O. type	PLL
noise figure	0.8 dB typ., 1.0 dB max.
output frequency 1	L-Band: 950 - 1950 MHz
output frequency 2	L-Band: 950 - 1700 MHz
output frequency 3	L-Band: 950 - 2000 MHz
output frequency 4	L-Band: 950 - 1450 MHz
tone frequency	22 kHz ± 4 kHz

RF SPECIFICATIONS
control signal 1	13 V
control signal 2	13 V / 22 KHz Tone
control signal 3	18 V
control signal 4	18 V / 22 KHz Tone
conversion gain	60 dB typ., 55 dB min., 65 dB max.
Gain Flatness (over full band)	5 dB p-p
input VSWR	2.5 : 1 max.
L.O. frequency 1	9.75 GHz
L.O. frequency 2	10.00 GHz
L.O. frequency 3	10.75 GHz
L.O. frequency 4	11.30 GHz
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100khz offset	-95 dBc/Hz
phase noise 10khz offset	-80 dBc/Hz
phase noise 1khz offset	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current drain	350 mA
power requirements	12 - 24 V

INTERFACE SPECIFICATIONS
RF input connector	WR-75 waveguide grooved
RF output connector	N-50 Ohm

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C
Weight	450 g max.

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)	128 x 60 x 42 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
ECCN Number	EAR99
Shipping Package Dimensions	140 x 95 x 65 mm
Shipping Package Weight	460g
