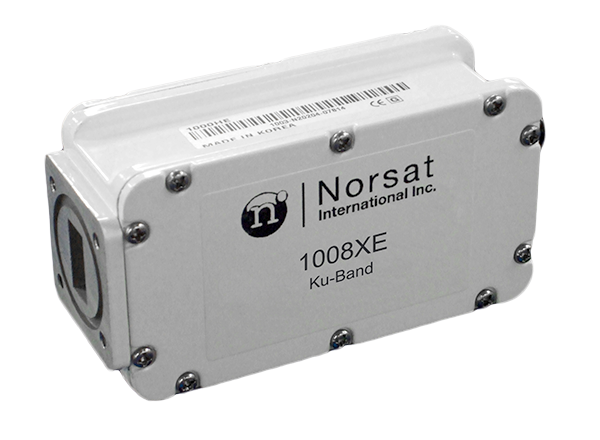

Name: 1000 Ku-Band Single Band EXT REF LNB
Brand: Norsat International Inc.
SKU: 1008XEF
Price: 1650.00 USD
Availability: InStock

1008XEF

1000 Ku-Band Single Band EXT REF LNB

1000XE Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

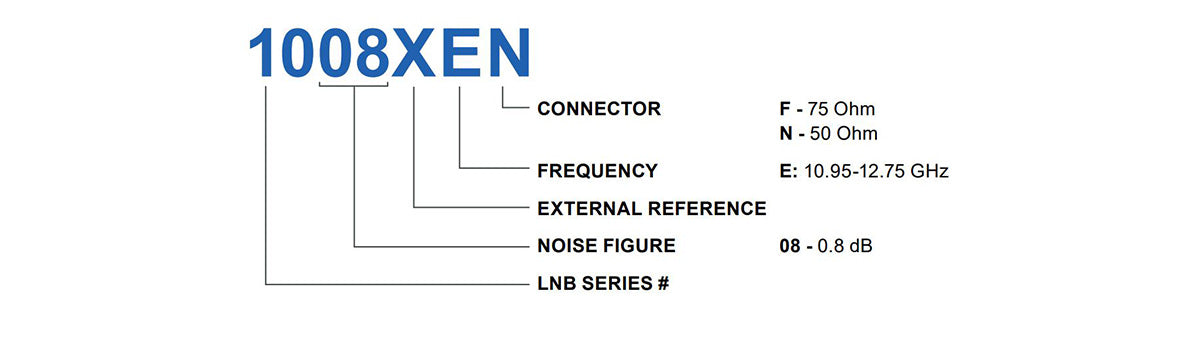

[{"id":41064285438135,"title":"F: 75 Ohm","option1":"F: 75 Ohm","option2":null,"option3":null,"sku":"1008XEF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - F: 75 Ohm","public_title":"F: 75 Ohm","options":["F: 75 Ohm"],"price":165000,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064285470903,"title":"N: 50 Ohm","option1":"N: 50 Ohm","option2":null,"option3":null,"sku":"1008XEN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Single Band EXT REF LNB - N: 50 Ohm","public_title":"N: 50 Ohm","options":["N: 50 Ohm"],"price":169400,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Ku estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como proveedor líder de la industria de LNB de alto rendimiento. Serie 1000XE.

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	10.95 - 12.75 GHz
LO frequency 1	10.00 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.0 dB
noise figure typ	0.8 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 2750 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness (over full band)	≤ 6 dB p-p
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

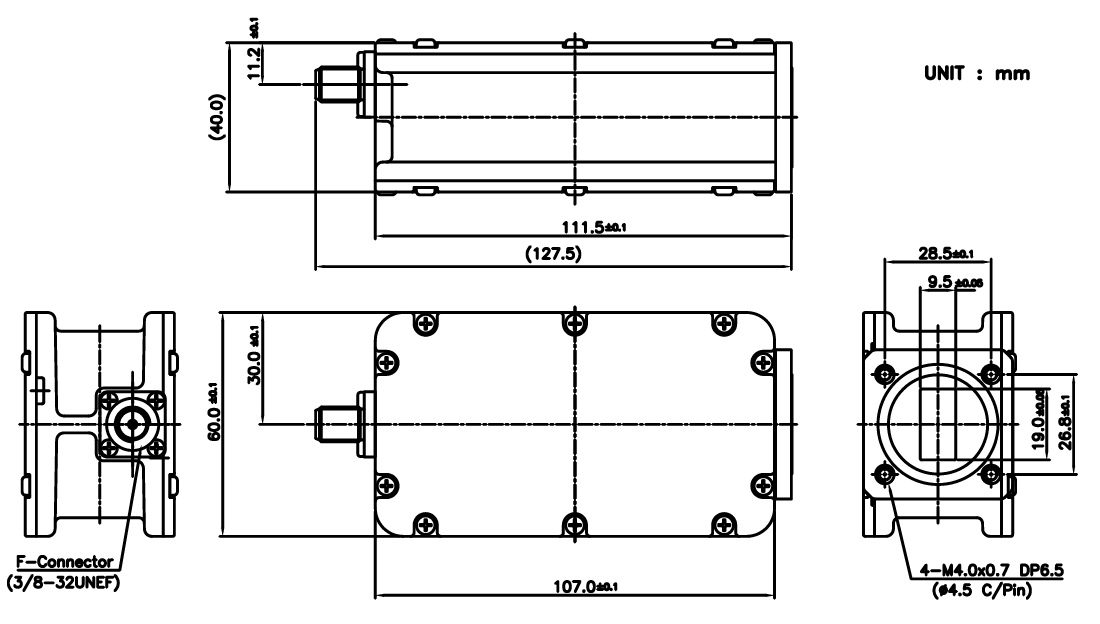

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	130 mm
product weight	0.4 kg
product width	60 mm

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	10.95 - 12.75 GHz
LO frequency 1	10.00 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.0 dB
noise figure typ	0.8 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 2750 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness (over full band)	≤ 6 dB p-p
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	300 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	130 mm
product weight	0.4 kg
product width	60 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	145 mm x 95 mm x 65 mm
Unit Package Weight	-
COMPLIANCE
	Yes
	Yes
	Yes
