Name: LNB PLL de banda única de banda Ku 1000
Brand: Norsat International Inc.

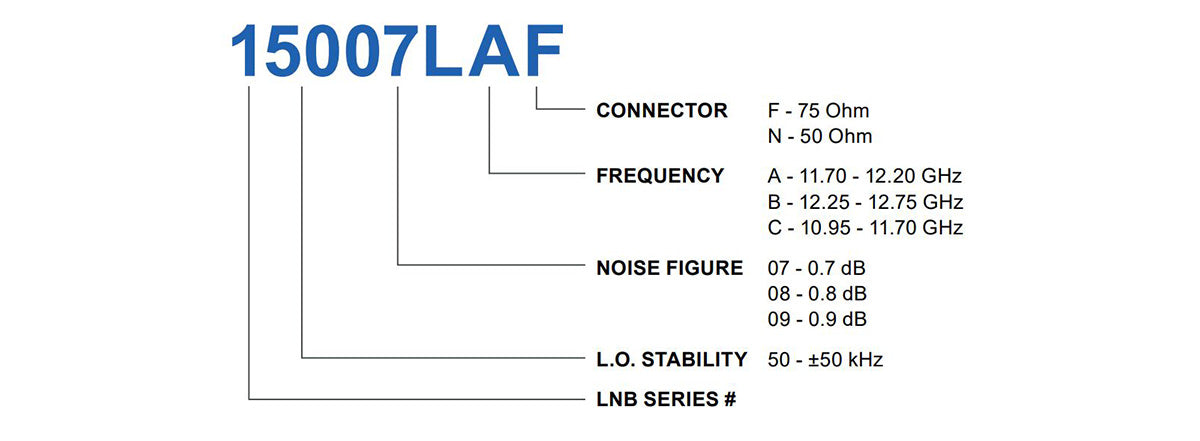

SKU: 15007LAN
Price: 363.00 USD
Availability: InStock

15007LAN

LNB PLL de banda única de banda Ku 1000

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41066143744183,"title":"0.7 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","option1":"0.7 dB","option2":"A: 11.70 - 12.20 GHz","option3":"N: 50 Ohm","sku":"15007LAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.7 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","public_title":"0.7 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","options":["0.7 dB","A: 11.70 - 12.20 GHz","N: 50 Ohm"],"price":36300,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066143776951,"title":"0.7 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","option1":"0.7 dB","option2":"A: 11.70 - 12.20 GHz","option3":"F: 75 Ohm","sku":"15007LAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.7 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","public_title":"0.7 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","options":["0.7 dB","A: 11.70 - 12.20 GHz","F: 75 Ohm"],"price":31900,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066143809719,"title":"0.7 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","option1":"0.7 dB","option2":"B: 12.25 - 12.75 GHz","option3":"N: 50 Ohm","sku":"15007LBN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.7 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","public_title":"0.7 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","options":["0.7 dB","B: 12.25 - 12.75 GHz","N: 50 Ohm"],"price":36300,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066143842487,"title":"0.7 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","option1":"0.7 dB","option2":"B: 12.25 - 12.75 GHz","option3":"F: 75 Ohm","sku":"15007LBF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.7 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","public_title":"0.7 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","options":["0.7 dB","B: 12.25 - 12.75 GHz","F: 75 Ohm"],"price":31900,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066143875255,"title":"0.7 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","option1":"0.7 dB","option2":"C: 10.95 - 11.70 GHz","option3":"N: 50 Ohm","sku":"15007LCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.7 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","public_title":"0.7 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","options":["0.7 dB","C: 10.95 - 11.70 GHz","N: 50 Ohm"],"price":36300,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066143908023,"title":"0.7 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","option1":"0.7 dB","option2":"C: 10.95 - 11.70 GHz","option3":"F: 75 Ohm","sku":"15007LCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.7 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","public_title":"0.7 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","options":["0.7 dB","C: 10.95 - 11.70 GHz","F: 75 Ohm"],"price":31900,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066143940791,"title":"0.8 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","option1":"0.8 dB","option2":"A: 11.70 - 12.20 GHz","option3":"N: 50 Ohm","sku":"15008LAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.8 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","public_title":"0.8 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","options":["0.8 dB","A: 11.70 - 12.20 GHz","N: 50 Ohm"],"price":35200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144006327,"title":"0.8 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","option1":"0.8 dB","option2":"B: 12.25 - 12.75 GHz","option3":"N: 50 Ohm","sku":"15008LBN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.8 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","public_title":"0.8 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","options":["0.8 dB","B: 12.25 - 12.75 GHz","N: 50 Ohm"],"price":35200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144039095,"title":"0.8 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","option1":"0.8 dB","option2":"B: 12.25 - 12.75 GHz","option3":"F: 75 Ohm","sku":"15008LBF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.8 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","public_title":"0.8 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","options":["0.8 dB","B: 12.25 - 12.75 GHz","F: 75 Ohm"],"price":30800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144071863,"title":"0.8 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","option1":"0.8 dB","option2":"C: 10.95 - 11.70 GHz","option3":"N: 50 Ohm","sku":"15008LCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.8 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","public_title":"0.8 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","options":["0.8 dB","C: 10.95 - 11.70 GHz","N: 50 Ohm"],"price":35200,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144104631,"title":"0.8 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","option1":"0.8 dB","option2":"C: 10.95 - 11.70 GHz","option3":"F: 75 Ohm","sku":"15008LCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.8 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","public_title":"0.8 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","options":["0.8 dB","C: 10.95 - 11.70 GHz","F: 75 Ohm"],"price":30800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144137399,"title":"0.9 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","option1":"0.9 dB","option2":"A: 11.70 - 12.20 GHz","option3":"N: 50 Ohm","sku":"15009LAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.9 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","public_title":"0.9 dB \/ A: 11.70 - 12.20 GHz \/ N: 50 Ohm","options":["0.9 dB","A: 11.70 - 12.20 GHz","N: 50 Ohm"],"price":34100,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144170167,"title":"0.9 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","option1":"0.9 dB","option2":"A: 11.70 - 12.20 GHz","option3":"F: 75 Ohm","sku":"15009LAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.9 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","public_title":"0.9 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","options":["0.9 dB","A: 11.70 - 12.20 GHz","F: 75 Ohm"],"price":29700,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144202935,"title":"0.9 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","option1":"0.9 dB","option2":"B: 12.25 - 12.75 GHz","option3":"N: 50 Ohm","sku":"15009LBN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.9 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","public_title":"0.9 dB \/ B: 12.25 - 12.75 GHz \/ N: 50 Ohm","options":["0.9 dB","B: 12.25 - 12.75 GHz","N: 50 Ohm"],"price":34100,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144235703,"title":"0.9 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","option1":"0.9 dB","option2":"B: 12.25 - 12.75 GHz","option3":"F: 75 Ohm","sku":"15009LBF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.9 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","public_title":"0.9 dB \/ B: 12.25 - 12.75 GHz \/ F: 75 Ohm","options":["0.9 dB","B: 12.25 - 12.75 GHz","F: 75 Ohm"],"price":29700,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144268471,"title":"0.9 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","option1":"0.9 dB","option2":"C: 10.95 - 11.70 GHz","option3":"N: 50 Ohm","sku":"15009LCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.9 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","public_title":"0.9 dB \/ C: 10.95 - 11.70 GHz \/ N: 50 Ohm","options":["0.9 dB","C: 10.95 - 11.70 GHz","N: 50 Ohm"],"price":29700,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41066144301239,"title":"0.9 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","option1":"0.9 dB","option2":"C: 10.95 - 11.70 GHz","option3":"F: 75 Ohm","sku":"15009LCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.9 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","public_title":"0.9 dB \/ C: 10.95 - 11.70 GHz \/ F: 75 Ohm","options":["0.9 dB","C: 10.95 - 11.70 GHz","F: 75 Ohm"],"price":34100,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41289398255799,"title":"0.8 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","option1":"0.8 dB","option2":"A: 11.70 - 12.20 GHz","option3":"F: 75 Ohm","sku":"15008LAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda Ku 1000 - 0.8 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","public_title":"0.8 dB \/ A: 11.70 - 12.20 GHz \/ F: 75 Ohm","options":["0.8 dB","A: 11.70 - 12.20 GHz","F: 75 Ohm"],"price":30800,"weight":300,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Ku estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como proveedor líder de la industria de LNB de alto rendimiento. Serie 15000L.

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	11.70 - 12.20 GHz
LO frequency 1	10.75 GHz
LO stability	±50 kHz
LO type	PLL
noise figure max	0.8 dB
noise figure typ	0.7 dB
number of onboard LOs	Single-Band
output frequency band 1	950 - 1450 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
input VSWR	2.0 : 1 max.
output VSWR	2.0 : 1 max.

ELECTRICAL SPECIFICATIONS
current consumption	170 mA
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector

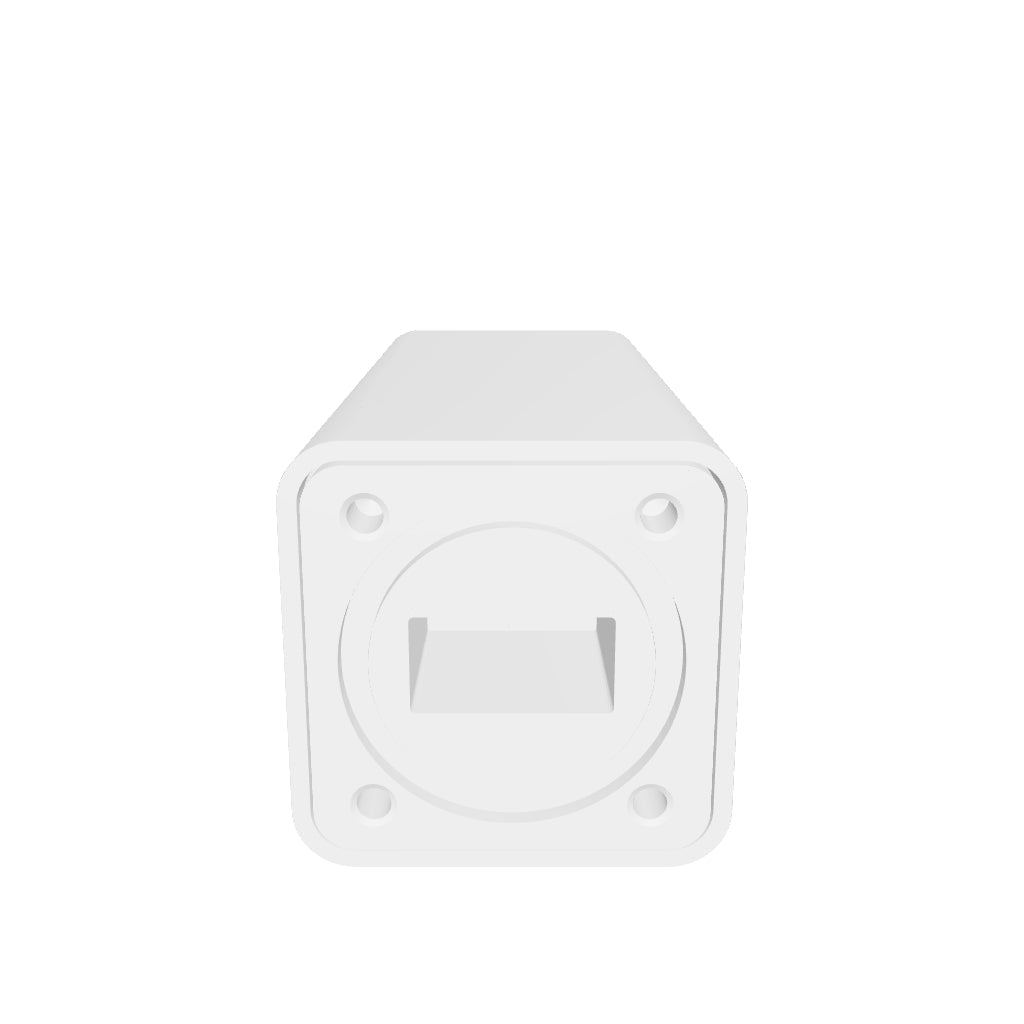

RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 95%
temperature operational	-40 to +60°C

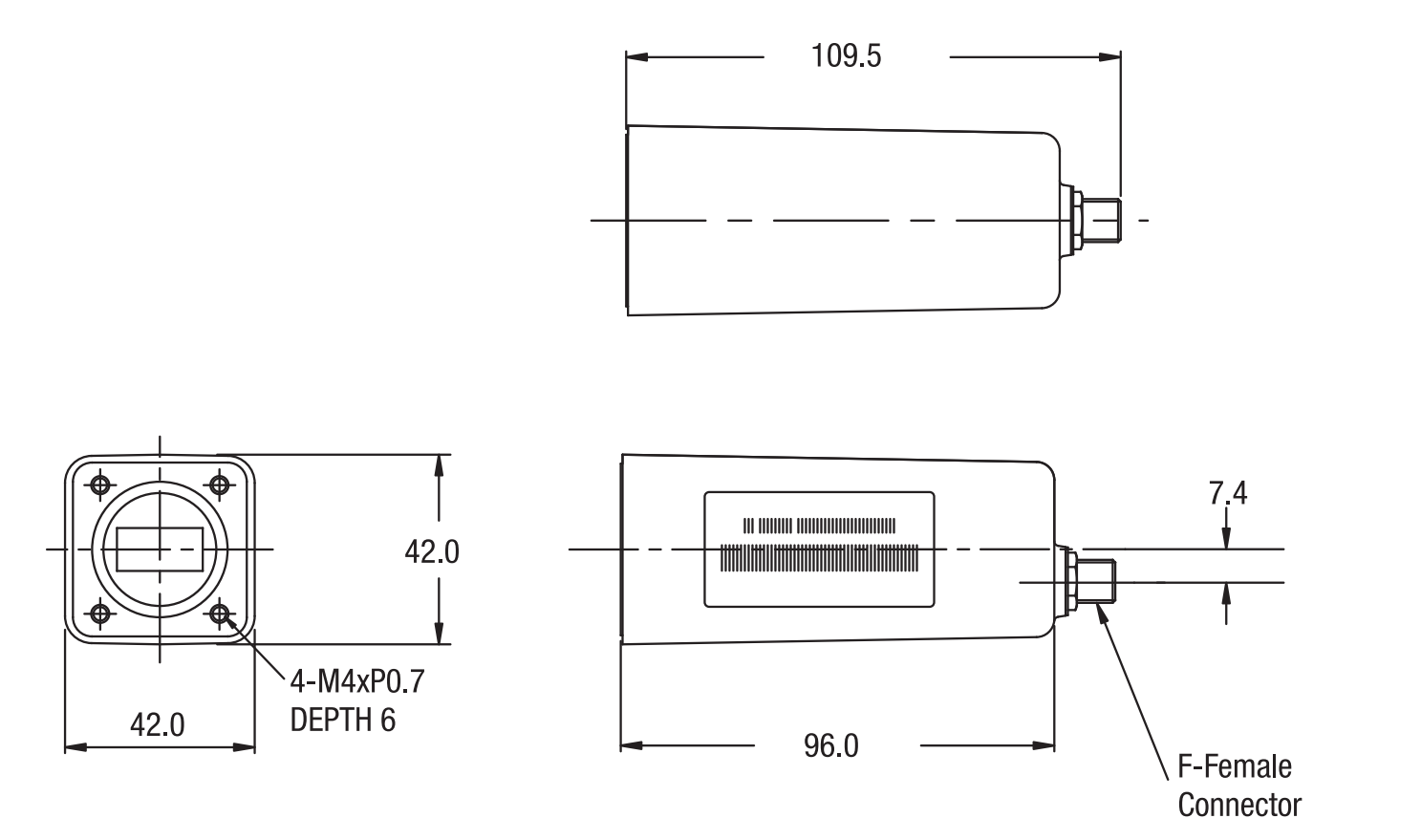

PHYSICAL SPECIFICATIONS
product height	42 mm
product length	110 mm
product weight	0.3 kg
product width	42 mm

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-75 waveguide grooved

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	140 mm x 50 mm x 50 mm
Unit Package Weight	-
COMPLIANCE
	Yes
	Yes
	Yes
