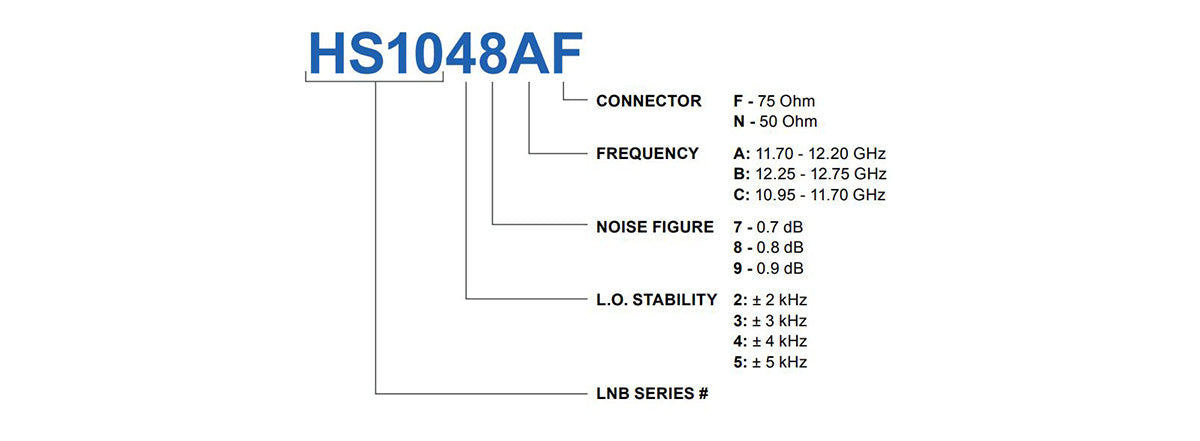

KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±2 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C

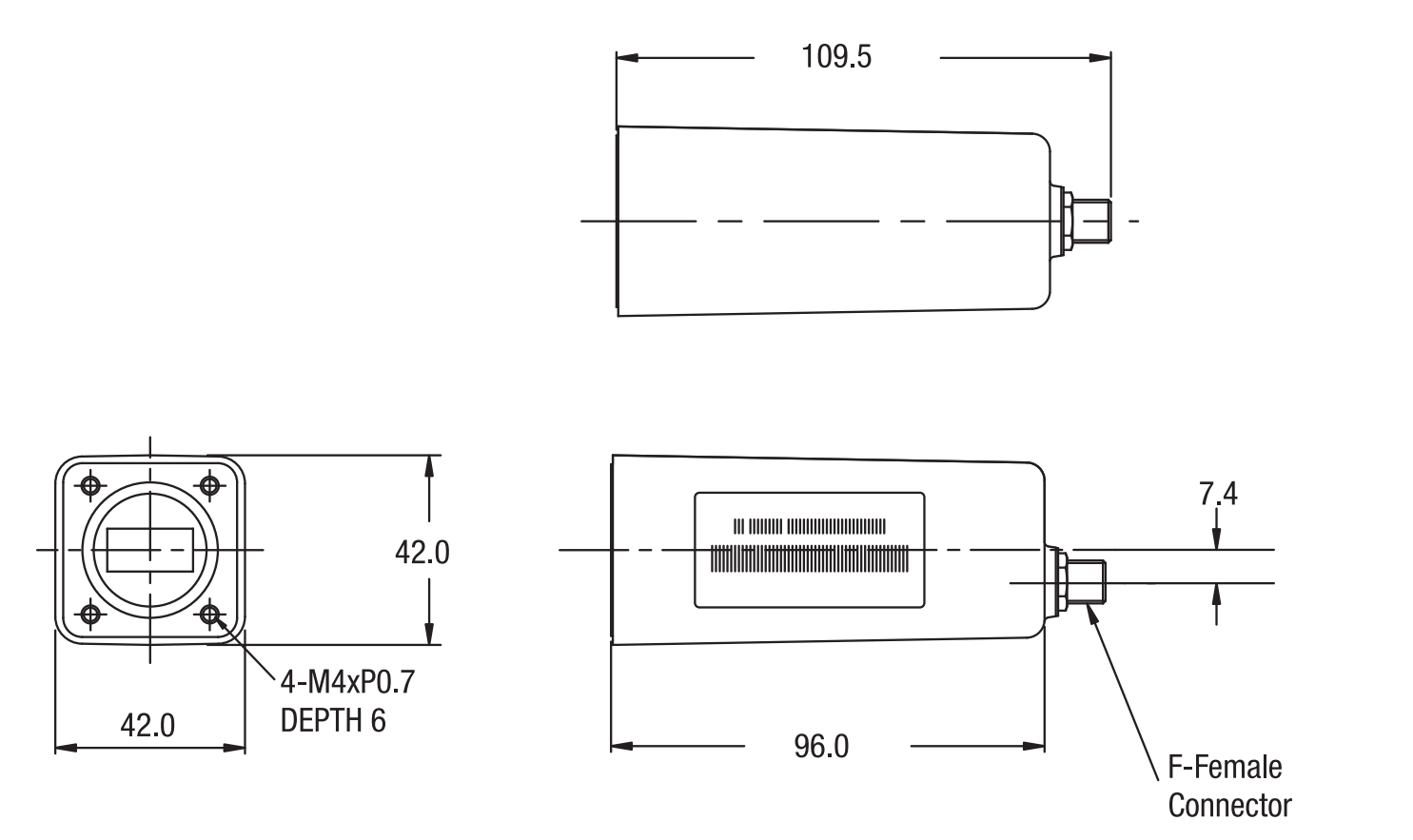

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±2 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±2 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±3 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±3 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±3 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±3 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±3 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±3 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±4 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±4 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±4 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±4 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±4 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±4 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±5 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±5 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±5 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±5 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±5 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±5 kHz
LO type
PLL
noise figure max
1.0 dB
noise figure typ
0.9 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±2 kHz
LO type
PLL
noise figure max
0.9 dB
noise figure typ
0.8 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±2 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
C
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
10.95 - 11.70 GHz
LO frequency 1
10.00 GHz
LO stability
±2 kHz
LO type
PLL
noise figure max
0.8 dB
noise figure typ
0.7 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1700 MHz
Product Revision
D
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
60 dB
Gain Flatness (over full band)
≤ 5 dB p-p
input VSWR
2.5 : 1 max.
output P1dB
+ 4 dBm min.
output VSWR
2.2 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-75 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA max.
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
F-Connector
RF input connector
WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
temperature storage
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
110 x 42 x 42 mm
product weight
0.3 kg
INFORMATION
HS Code
8517690000
Country of Origin
Made in Korea
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
140 x 50 x 50 mm
Unit Package Weight
-
COMPLIANCE
Yes
Yes
Yes
