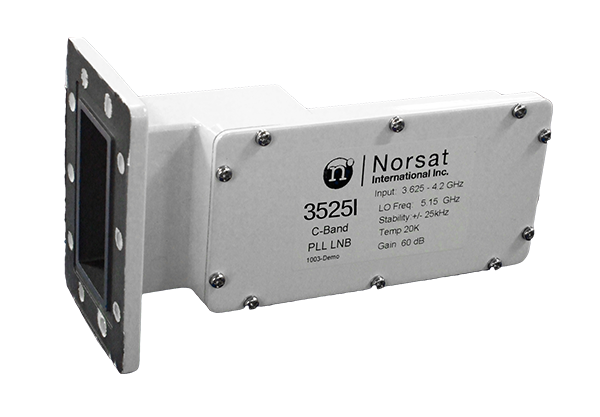

Name: LNB PLL de banda única de banda C 3000I
Brand: Norsat International Inc.
SKU: 3225IF
Price: 315.00 USD
Availability: InStock

3225IF

LNB PLL de banda única de banda C 3000I

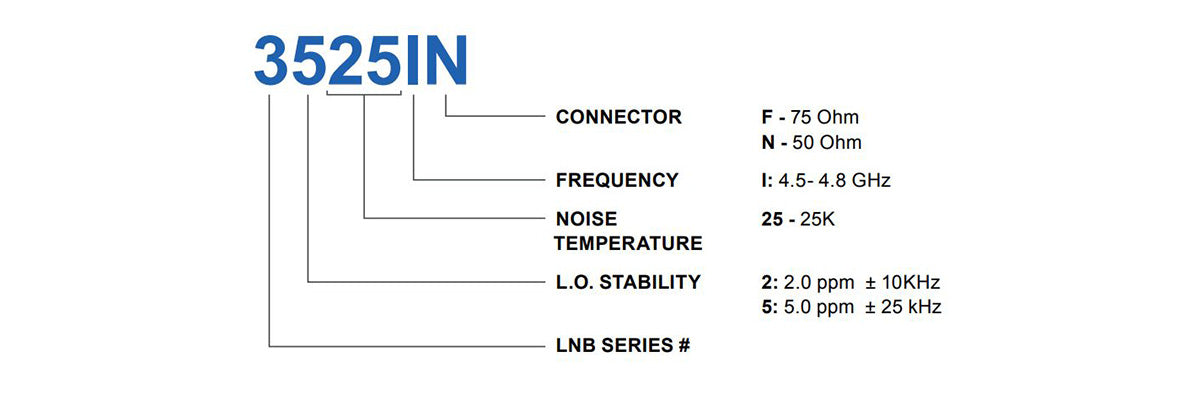

3000I Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41049894158519,"title":"2: ±10 kHz \/ F: 75 Ohm","option1":"2: ±10 kHz","option2":"F: 75 Ohm","option3":null,"sku":"3225IF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000I - 2: ±10 kHz \/ F: 75 Ohm","public_title":"2: ±10 kHz \/ F: 75 Ohm","options":["2: ±10 kHz","F: 75 Ohm"],"price":31500,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"94158519","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049894191287,"title":"5: ± 25 kHz \/ F: 75 Ohm","option1":"5: ± 25 kHz","option2":"F: 75 Ohm","option3":null,"sku":"3525IF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000I - 5: ± 25 kHz \/ F: 75 Ohm","public_title":"5: ± 25 kHz \/ F: 75 Ohm","options":["5: ± 25 kHz","F: 75 Ohm"],"price":30400,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"94191287","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049894224055,"title":"2: ±10 kHz \/ N: 50 Ohm","option1":"2: ±10 kHz","option2":"N: 50 Ohm","option3":null,"sku":"3225IN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000I - 2: ±10 kHz \/ N: 50 Ohm","public_title":"2: ±10 kHz \/ N: 50 Ohm","options":["2: ±10 kHz","N: 50 Ohm"],"price":35900,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"94224055","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049894256823,"title":"5: ± 25 kHz \/ N: 50 Ohm","option1":"5: ± 25 kHz","option2":"N: 50 Ohm","option3":null,"sku":"3525IN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000I - 5: ± 25 kHz \/ N: 50 Ohm","public_title":"5: ± 25 kHz \/ N: 50 Ohm","options":["5: ± 25 kHz","N: 50 Ohm"],"price":34800,"weight":680,"compare_at_price":null,"inventory_management":"shopify","barcode":"94256823","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda C estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como proveedor líder en la industria de LNB de alto rendimiento. Serie 3000I.

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	30K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	2.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-73 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 100kHz offset max	-93 dBc/Hz

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

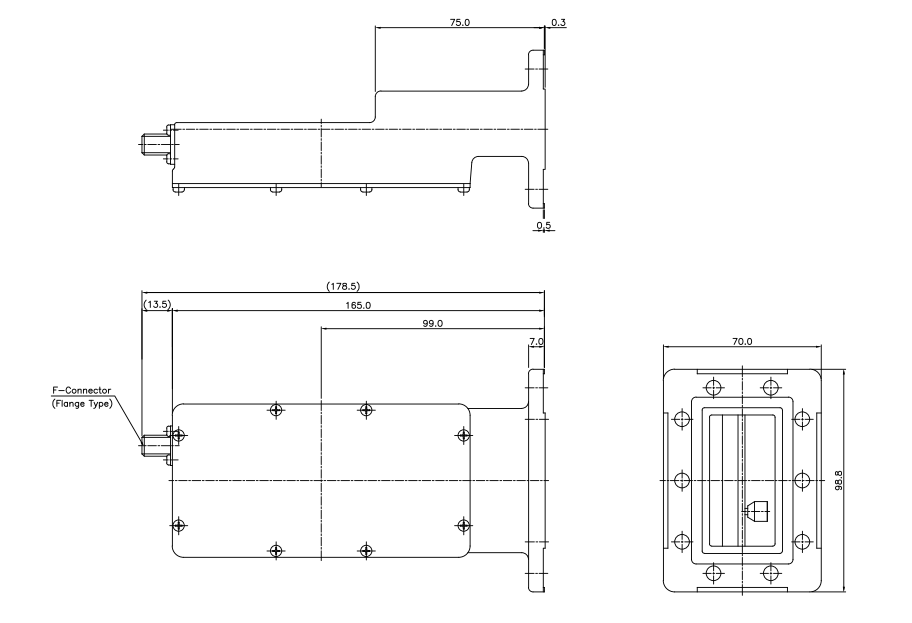

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.575 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	30K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	2.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-73 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 100kHz offset max	-93 dBc/Hz

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.575 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	30K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	2.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-73 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 100kHz offset max	-93 dBc/Hz

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.575 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	30K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	A

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	65 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	2.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 1kHz offset max	-73 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 100kHz offset max	-93 dBc/Hz

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.575 kg
product width	100 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	190 mm x 115 mm x 80 mm
Unit Package Weight	0.68 kg
