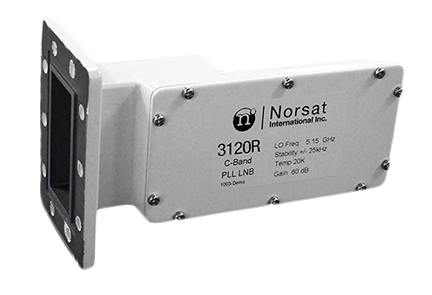

Name: LNB PLL de banda única de banda C 3000R
Brand: Norsat International Inc.
SKU: 3120RF
Price: 440.00 USD
Availability: InStock

3120RF

LNB PLL de banda única de banda C 3000R

3000R Series

MSRP: $440.00

Quantity Available: 53

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: In Stock Next Availability Lead Time: In Stock

View Resellers Quantity

For more information, click on the Company's link below:

Beijing Pace: 22

For more information, click on the Company's link below:

Viking Satcom: 86

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41049907003575,"title":"± 10KHz \/ 20K \/ F: 75 Ohm","option1":"± 10KHz","option2":"20K","option3":"F: 75 Ohm","sku":"3120RF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 10KHz \/ 20K \/ F: 75 Ohm","public_title":"± 10KHz \/ 20K \/ F: 75 Ohm","options":["± 10KHz","20K","F: 75 Ohm"],"price":44000,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":"07003575","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049907036343,"title":"± 10KHz \/ 20K \/ N: 50 Ohm","option1":"± 10KHz","option2":"20K","option3":"N: 50 Ohm","sku":"3120RN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 10KHz \/ 20K \/ N: 50 Ohm","public_title":"± 10KHz \/ 20K \/ N: 50 Ohm","options":["± 10KHz","20K","N: 50 Ohm"],"price":48400,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":"07036343","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049907101879,"title":"± 25 kHz \/ 20K \/ N: 50 Ohm","option1":"± 25 kHz","option2":"20K","option3":"N: 50 Ohm","sku":"3220RN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 25 kHz \/ 20K \/ N: 50 Ohm","public_title":"± 25 kHz \/ 20K \/ N: 50 Ohm","options":["± 25 kHz","20K","N: 50 Ohm"],"price":47300,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":"07101879","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049959071927,"title":"± 10KHz \/ 25K \/ F: 75 Ohm","option1":"± 10KHz","option2":"25K","option3":"F: 75 Ohm","sku":"3125RF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 10KHz \/ 25K \/ F: 75 Ohm","public_title":"± 10KHz \/ 25K \/ F: 75 Ohm","options":["± 10KHz","25K","F: 75 Ohm"],"price":41800,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":"59071927","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049959104695,"title":"± 10KHz \/ 25K \/ N: 50 Ohm","option1":"± 10KHz","option2":"25K","option3":"N: 50 Ohm","sku":"3125RN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 10KHz \/ 25K \/ N: 50 Ohm","public_title":"± 10KHz \/ 25K \/ N: 50 Ohm","options":["± 10KHz","25K","N: 50 Ohm"],"price":46200,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":"59104695","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049959137463,"title":"± 25 kHz \/ 25K \/ F: 75 Ohm","option1":"± 25 kHz","option2":"25K","option3":"F: 75 Ohm","sku":"3225RF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 25 kHz \/ 25K \/ F: 75 Ohm","public_title":"± 25 kHz \/ 25K \/ F: 75 Ohm","options":["± 25 kHz","25K","F: 75 Ohm"],"price":40700,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":"59137463","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41049959170231,"title":"± 25 kHz \/ 25K \/ N: 50 Ohm","option1":"± 25 kHz","option2":"25K","option3":"N: 50 Ohm","sku":"3225RN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 25 kHz \/ 25K \/ N: 50 Ohm","public_title":"± 25 kHz \/ 25K \/ N: 50 Ohm","options":["± 25 kHz","25K","N: 50 Ohm"],"price":45100,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":"59170231","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41275005173943,"title":"± 25 kHz \/ 20K \/ F: 75 Ohm","option1":"± 25 kHz","option2":"20K","option3":"F: 75 Ohm","sku":"3220RF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 3000R - ± 25 kHz \/ 20K \/ F: 75 Ohm","public_title":"± 25 kHz \/ 20K \/ F: 75 Ohm","options":["± 25 kHz","20K","F: 75 Ohm"],"price":42900,"weight":575,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda C estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como proveedor líder en la industria de LNB de alto rendimiento. Serie 3000R.

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	3.70 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	±5 kHz
LO type	PLL
noise figure max	25K
noise figure typ	20K
of onboard los	Single-band
output frequency band 1	950 - 1450 MHz

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	2.5 : 1 max.
output P1dB	+ 8 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-93 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 1kHz offset max	-73 dBc/Hz

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS

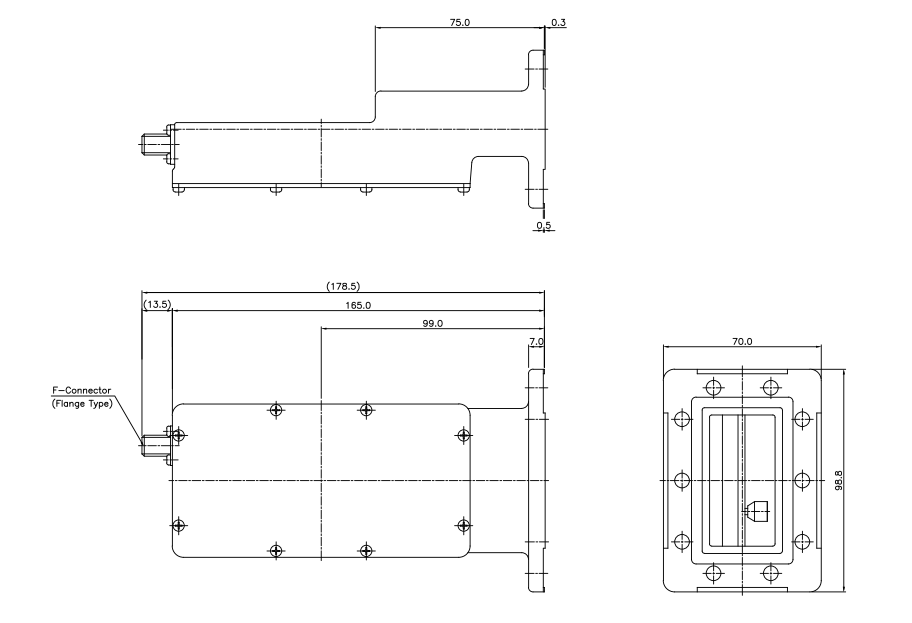

product dimensions (LxWxH)	180 x 100 x 70 mm
product weight	575 g (20.28 oz)

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Korea
ECCN Number	EAR99
Unit Package Dimensions	190 x 115 x 80 mm
Unit Package Weight	680g

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved
