KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS

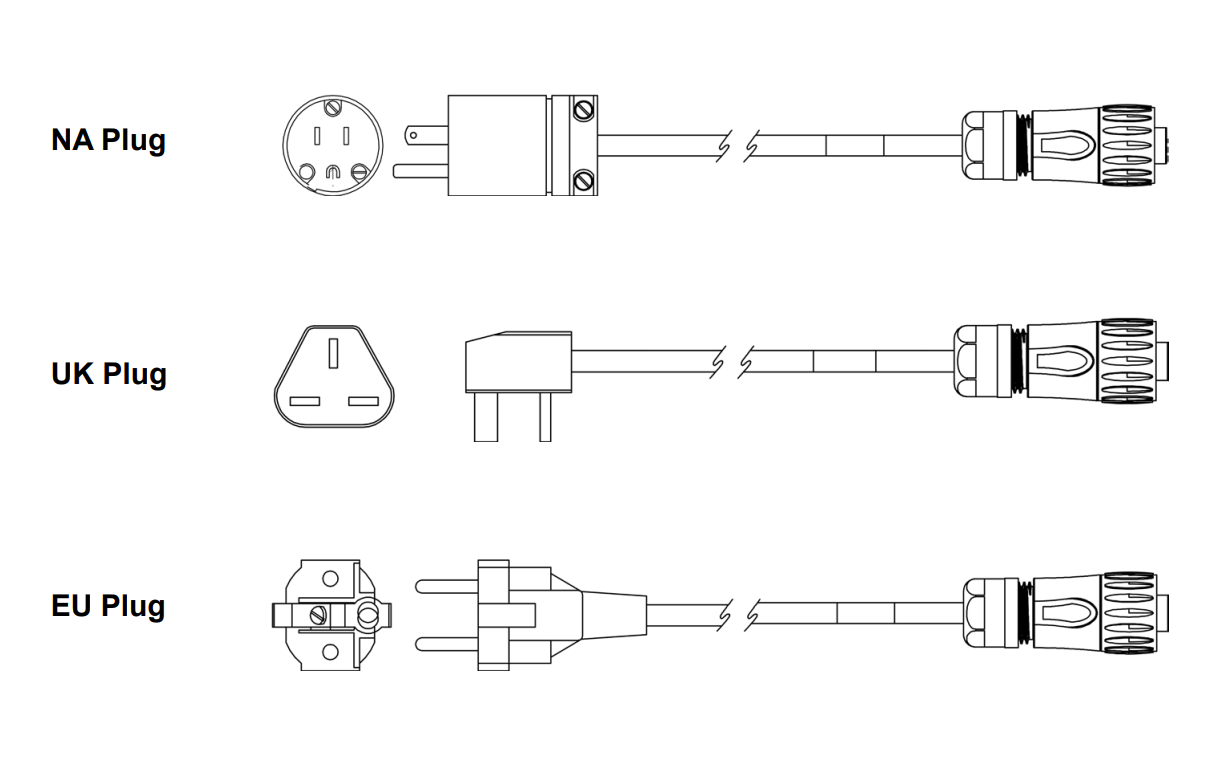

AC input cable
5m (16.5 ft), North America (NEMA 5/15)
DC output cable
2m (6 ft) Socket reference: PTO6E-12-4S-476
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), North America (NEMA 5/15)
DC output cable
2m (6 ft) Socket reference: AC06E22-22S-472
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), United Kingdom (BS 1363)
DC output cable
2m (6 ft) Socket reference: PTO6E-12-4S-476
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), United Kingdom (BS 1363)
DC output cable
2m (6 ft) Socket reference: AC06E22-22S-472
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), Europe (CEE 7/7)
DC output cable
2m (6 ft) Socket reference: PTO6E-12-4S-476
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), Europe (CEE 7/7)
DC output cable
2m (6 ft) Socket reference: AC06E22-22S-472
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS

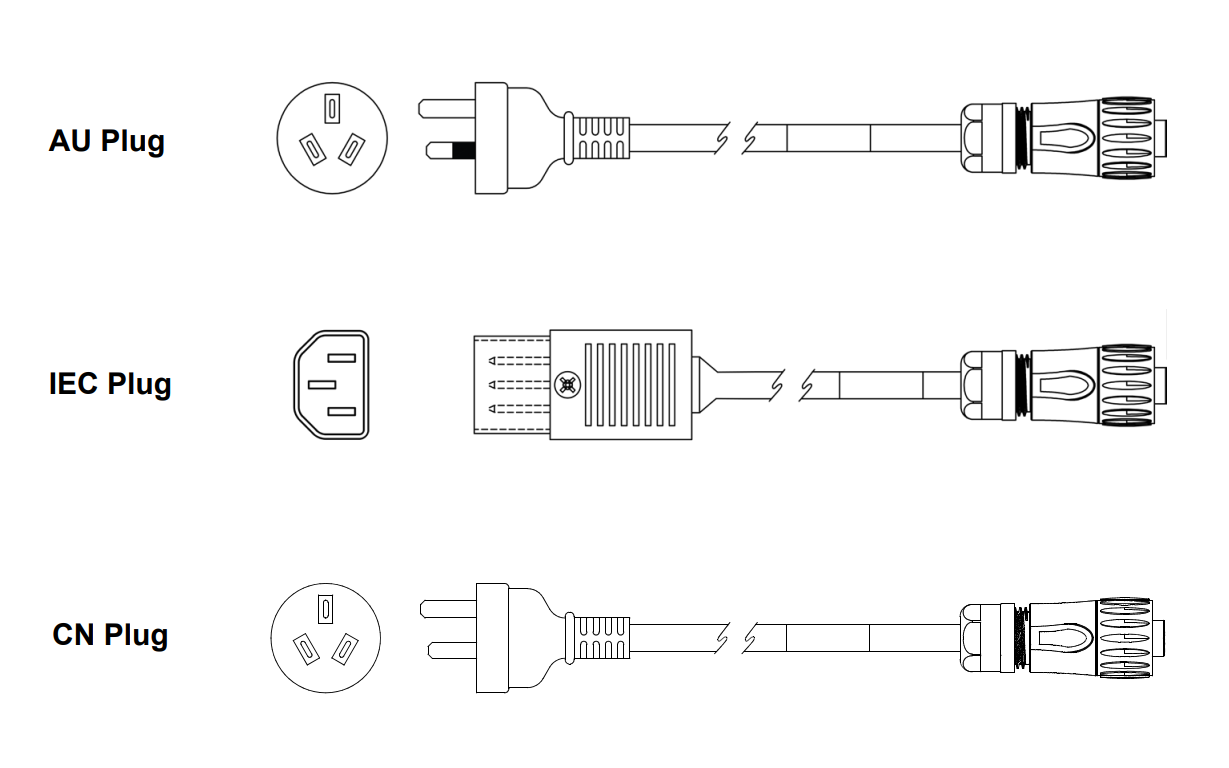

AC input cable
5m (16.5 ft), Australia (AS/NZS 3112)
DC output cable
2m (6 ft) Socket reference: PTO6E-12-4S-476
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), Australia (AS/NZS 3112)
DC output cable
2m (6 ft) Socket reference: AC06E22-22S-472
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), IEC (60320 C14)
DC output cable
2m (6 ft) Socket reference: PTO6E-12-4S-476
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), IEC (60320 C14)
DC output cable
2m (6 ft) Socket reference: AC06E22-22S-472
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), China (Type I)
DC output cable
2m (6 ft) Socket reference: PTO6E-12-4S-476
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
KEY SPECIFICATIONS
color
Silver
input frequency band 1
47 - 63 Hz
output power rated
600W
RF SPECIFICATIONS
output VSWR
2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
input voltage
90 - 300 VAC
output voltage
+48 V
output voltage accuracy
+/- 5% of output voltage
output voltage ripple noise
1.0V Peak-to-Peak
rated current
6.25 A
INTERFACE SPECIFICATIONS
AC input cable
5m (16.5 ft), China (Type I)
DC output cable
2m (6 ft) Socket reference: AC06E22-22S-472
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-35 to +70°C
temperature storage
-40 to +85˚C
PHYSICAL SPECIFICATIONS
cooling
Passive / Fanless
product dimensions (LxWxH)
280 x 144 x 48.5 mm
product weight
3.9 kg (8.59 lb)
INFORMATION
HS Code
8517690000
Country of Origin
Made in China
Ex Works
China
ECCN Number
EAR99
Unit Package Dimensions
280 x 144 x 48.5 mm
Unit Package Weight
-
Open here
PS600-AT-Spec-Sheet.pdf
