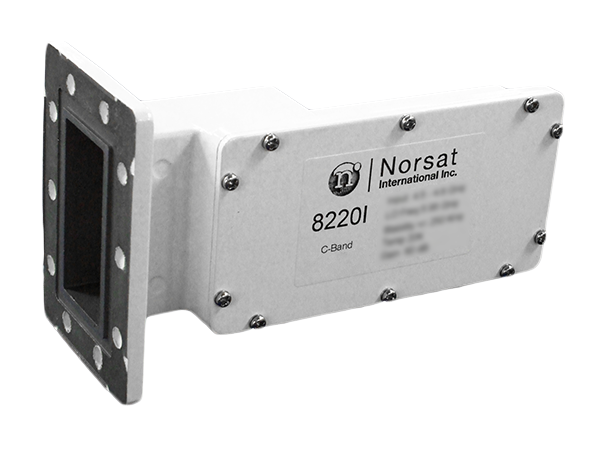

Name: LNB PLL de banda única de banda C 8000I
Brand: Norsat International Inc.
SKU: 8520IF
Availability: InStock

8520IF

LNB PLL de banda única de banda C 8000I

Superceded by 5000R Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

[{"id":41051543404727,"title":"20 K \/ F: 75 Ohm","option1":"20 K","option2":"F: 75 Ohm","option3":null,"sku":"8520IF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 8000I - 20 K \/ F: 75 Ohm","public_title":"20 K \/ F: 75 Ohm","options":["20 K","F: 75 Ohm"],"price":0,"weight":584,"compare_at_price":null,"inventory_management":"shopify","barcode":"43404727","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41051543437495,"title":"20 K \/ N: 50 Ohm","option1":"20 K","option2":"N: 50 Ohm","option3":null,"sku":"8520IN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 8000I - 20 K \/ N: 50 Ohm","public_title":"20 K \/ N: 50 Ohm","options":["20 K","N: 50 Ohm"],"price":0,"weight":584,"compare_at_price":null,"inventory_management":"shopify","barcode":"43437495","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41051543470263,"title":"25 K \/ F: 75 Ohm","option1":"25 K","option2":"F: 75 Ohm","option3":null,"sku":"8525IF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 8000I - 25 K \/ F: 75 Ohm","public_title":"25 K \/ F: 75 Ohm","options":["25 K","F: 75 Ohm"],"price":0,"weight":584,"compare_at_price":null,"inventory_management":"shopify","barcode":"43470263","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41051543503031,"title":"25 K \/ N: 50 Ohm","option1":"25 K","option2":"N: 50 Ohm","option3":null,"sku":"8525IN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 8000I - 25 K \/ N: 50 Ohm","public_title":"25 K \/ N: 50 Ohm","options":["25 K","N: 50 Ohm"],"price":0,"weight":584,"compare_at_price":null,"inventory_management":"shopify","barcode":"43503031","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41051543535799,"title":"30 K \/ F: 75 Ohm","option1":"30 K","option2":"F: 75 Ohm","option3":null,"sku":"8530IF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 8000I - 30 K \/ F: 75 Ohm","public_title":"30 K \/ F: 75 Ohm","options":["30 K","F: 75 Ohm"],"price":0,"weight":584,"compare_at_price":null,"inventory_management":"shopify","barcode":"43535799","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41051543568567,"title":"30 K \/ N: 50 Ohm","option1":"30 K","option2":"N: 50 Ohm","option3":null,"sku":"8530IN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda única de banda C 8000I - 30 K \/ N: 50 Ohm","public_title":"30 K \/ N: 50 Ohm","options":["30 K","N: 50 Ohm"],"price":0,"weight":584,"compare_at_price":null,"inventory_management":"shopify","barcode":"43568567","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda C estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como proveedor líder en la industria de LNB de alto rendimiento. Serie 8000I.

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±500 kHz
LO type	PLL
noise figure max	24K
noise figure typ	20K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	D

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	62 dB
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

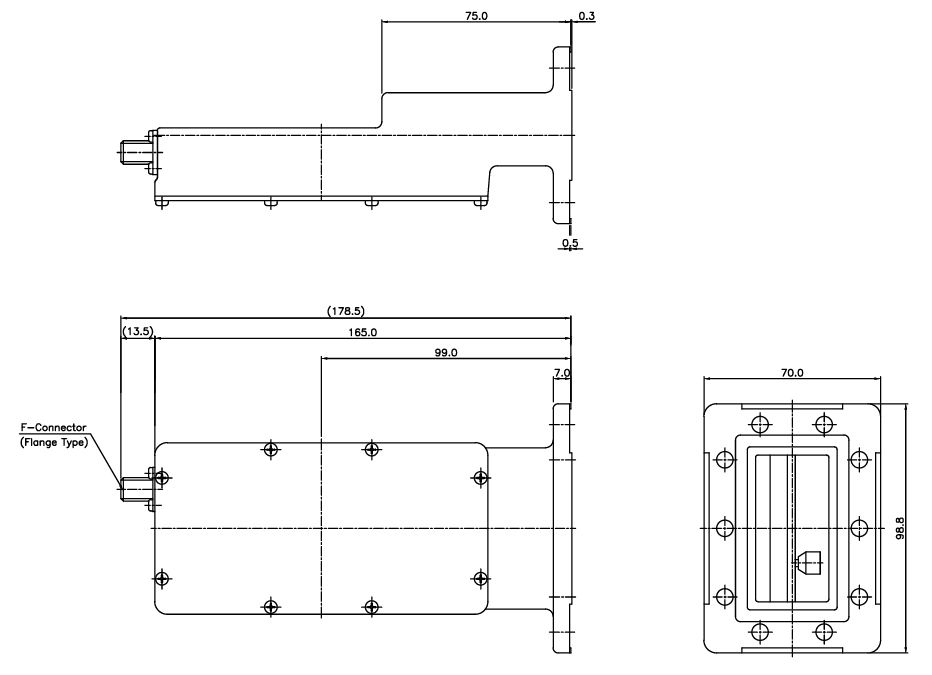

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.45 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±500 kHz
LO type	PLL
noise figure max	24K
noise figure typ	20K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	62 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.45 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±500 kHz
LO type	PLL
noise figure max	28K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	62 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.45 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±500 kHz
LO type	PLL
noise figure max	28K
noise figure typ	25K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	62 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.45 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±500 kHz
LO type	PLL
noise figure max	32K
noise figure typ	30K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	62 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.45 kg
product width	100 mm

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	4.50 - 4.80 GHz
LO frequency 1	5.95 GHz
LO stability	±500 kHz
LO type	PLL
noise figure max	32K
noise figure typ	30K
number of onboard LOs	Single-Band
output frequency band 1	1150 - 1450 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	70 dB
conversion gain min	55 dB
conversion gain typ	62 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	250 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	CPR 229G waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	180 mm
product weight	0.45 kg
product width	100 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	190 mm x 115 mm x 77 mm
Unit Package Weight	0.584 kg
COMPLIANCE
	Yes
	Yes
	Yes
