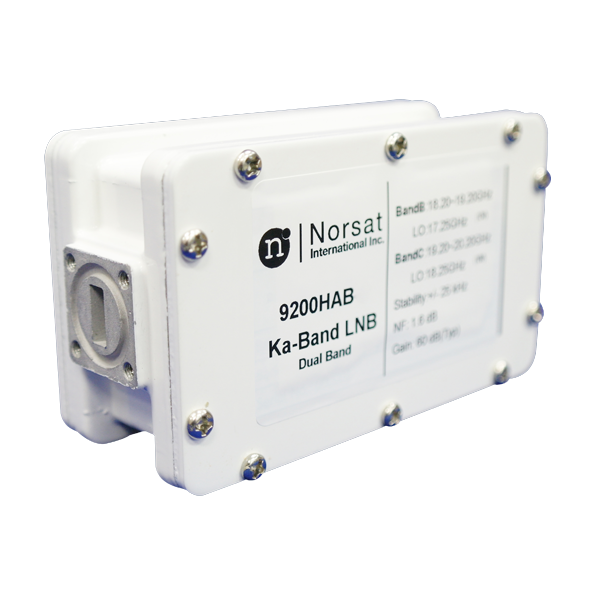

Name: LNB PLL de banda Ka de doble banda 9000
Brand: Norsat International Inc.
SKU: 9200HABN
Price: 1610.00 USD
Availability: InStock

9200HABN

LNB PLL de banda Ka de doble banda 9000

9000HAD Series

MSRP: $1,610.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: Contact Sales Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: In Stock Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: Contact Sales Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41135656534199,"title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ No \/ N: 50 Ohm","option1":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HABN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ No \/ N: 50 Ohm","public_title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ No \/ N: 50 Ohm","options":["AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","No","N: 50 Ohm"],"price":161000,"weight":400000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41135656566967,"title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ No \/ F: 75 Ohm","option1":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HABF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ No \/ F: 75 Ohm","public_title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ No \/ F: 75 Ohm","options":["AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","No","F: 75 Ohm"],"price":157500,"weight":400000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41135656599735,"title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","option1":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HBCN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","public_title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ No \/ N: 50 Ohm","options":["BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","No","N: 50 Ohm"],"price":161000,"weight":420,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41135656632503,"title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","option1":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HBCF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","public_title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ No \/ F: 75 Ohm","options":["BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","No","F: 75 Ohm"],"price":157500,"weight":420,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41135656665271,"title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","option1":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","option2":"No","option3":"N: 50 Ohm","sku":"9200HCDN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","public_title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ No \/ N: 50 Ohm","options":["CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","No","N: 50 Ohm"],"price":161000,"weight":420,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41135656698039,"title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","option1":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","option2":"No","option3":"F: 75 Ohm","sku":"9200HCDF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","public_title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ No \/ F: 75 Ohm","options":["CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","No","F: 75 Ohm"],"price":157500,"weight":420,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125417443511,"title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","option1":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HIABN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","options":["AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","Yes","N: 50 Ohm"],"price":206000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125417541815,"title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","option1":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HIABF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","options":["AB: 18.2 - 19.2  \u0026 19.2 - 21.2 GHz","Yes","F: 75 Ohm"],"price":202500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125417410743,"title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","option1":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HIBCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ Yes \/ N: 50 Ohm","options":["BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","Yes","N: 50 Ohm"],"price":206000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125417509047,"title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","option1":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HIBCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz \/ Yes \/ F: 75 Ohm","options":["BC: 19.2 - 20.2 \u0026 20.2 - 21.2 GHz","Yes","F: 75 Ohm"],"price":202500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125417377975,"title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","option1":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","option2":"Yes","option3":"N: 50 Ohm","sku":"9200HICDN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","public_title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ Yes \/ N: 50 Ohm","options":["CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","Yes","N: 50 Ohm"],"price":206000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43125417476279,"title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","option1":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","option2":"Yes","option3":"F: 75 Ohm","sku":"9200HICDF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de doble banda 9000 - CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","public_title":"CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz \/ Yes \/ F: 75 Ohm","options":["CD:  20.2 - 21.2 \u0026 21.2 - 22.2 GHz","Yes","F: 75 Ohm"],"price":202500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Ka estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como el proveedor líder de la industria de LNB de alto rendimiento.

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	18.20 - 19.20 GHz
input frequency band 2	19.20 - 20.20 GHz
LO frequency 1	17.25 GHz
LO frequency 2	18.25 GHz
LO stability	±25 kHz
LO type	PLL
noise figure max	1.6 dB
noise figure typ	1.3 dB
of onboard los	Dual-band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-78 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
isolator	No Isolator
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	118 x 60 x 45 mm
product weight	420 g (14.82 oz)

INTERFACE SPECIFICATIONS
IF connector	F-Connector
isolator	No Isolator
RF input connector	WR-42 waveguide grooved

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	120 x 60 x 45 mm
product weight	420 g (14.82 oz)

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Korea
ECCN Number	EAR99
Unit Package Dimensions	118 x 60 x 45 mm
Unit Package Weight	400g
