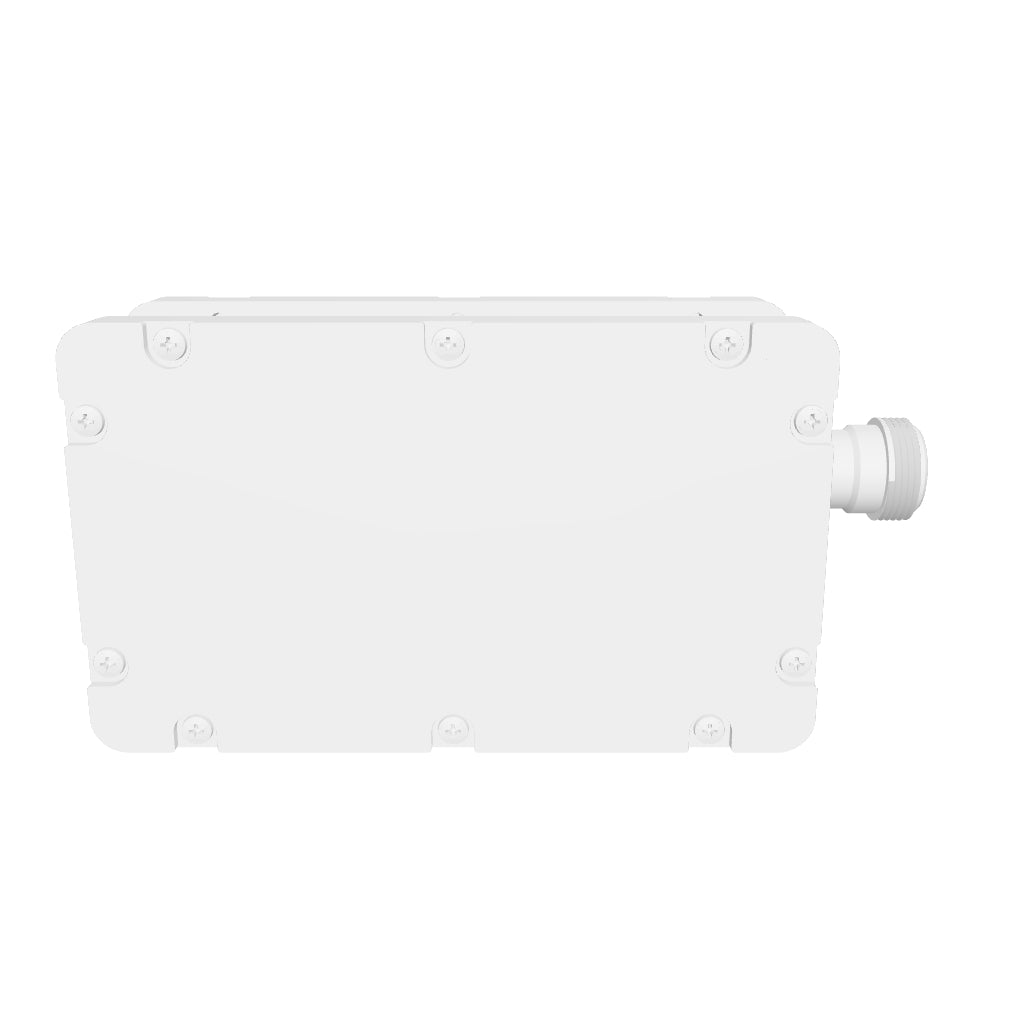

Name: LNB PLL de banda Ka de modo dual 9000
Brand: Norsat International Inc.
SKU: 9000HX-O3B-AF
Price: 792.00 USD
Availability: InStock

9000HX-O3B-AF

LNB PLL de banda Ka de modo dual 9000

9000HX-O3B Series

$792.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: 0 Next Availability: Not Applicable Next Availability: 0

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

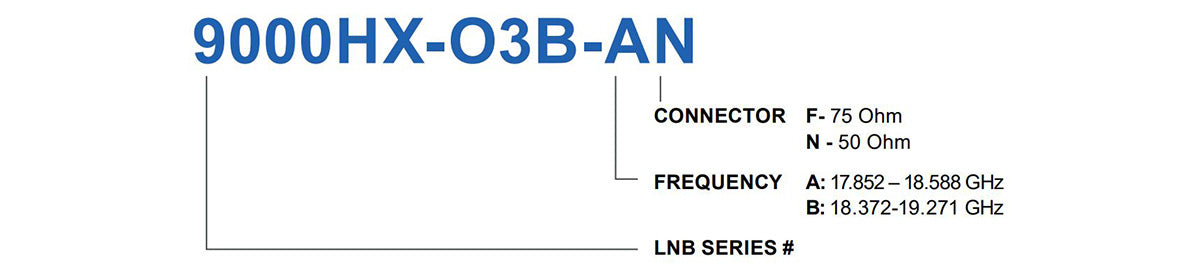

[{"id":41058758557879,"title":"A: 17.852 – 18.588 GHz \/ F: 75 Ohm","option1":"A: 17.852 – 18.588 GHz","option2":"F: 75 Ohm","option3":null,"sku":"9000HX-O3B-AF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de modo dual 9000 - A: 17.852 – 18.588 GHz \/ F: 75 Ohm","public_title":"A: 17.852 – 18.588 GHz \/ F: 75 Ohm","options":["A: 17.852 – 18.588 GHz","F: 75 Ohm"],"price":79200,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058758590647,"title":"A: 17.852 – 18.588 GHz \/ N: 50 Ohm","option1":"A: 17.852 – 18.588 GHz","option2":"N: 50 Ohm","option3":null,"sku":"9000HX-O3B-AN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de modo dual 9000 - A: 17.852 – 18.588 GHz \/ N: 50 Ohm","public_title":"A: 17.852 – 18.588 GHz \/ N: 50 Ohm","options":["A: 17.852 – 18.588 GHz","N: 50 Ohm"],"price":79200,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058758623415,"title":"B: 18.372-19.271 GHz \/ F: 75 Ohm","option1":"B: 18.372-19.271 GHz","option2":"F: 75 Ohm","option3":null,"sku":"9000HX-O3B-BF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de modo dual 9000 - B: 18.372-19.271 GHz \/ F: 75 Ohm","public_title":"B: 18.372-19.271 GHz \/ F: 75 Ohm","options":["B: 18.372-19.271 GHz","F: 75 Ohm"],"price":79200,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058758656183,"title":"B: 18.372-19.271 GHz \/ N: 50 Ohm","option1":"B: 18.372-19.271 GHz","option2":"N: 50 Ohm","option3":null,"sku":"9000HX-O3B-BN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"LNB PLL de banda Ka de modo dual 9000 - B: 18.372-19.271 GHz \/ N: 50 Ohm","public_title":"B: 18.372-19.271 GHz \/ N: 50 Ohm","options":["B: 18.372-19.271 GHz","N: 50 Ohm"],"price":79200,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los bloques de bajo ruido (LNB) de Norsat brindan recepción de señal para comunicaciones satelitales en todo el mundo. Ofrecemos un rendimiento y una fiabilidad superiores en el factor de forma más pequeño posible. Todos nuestros LNB de banda Ka estándar están respaldados por una garantía de 3 años y casi cuarenta años de experiencia como el proveedor líder de la industria de LNB de alto rendimiento. Serie 9000HX-O3B.

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	17.852 - 18.588 GHz
LO frequency 1	16.80 GHz
LO stability	±25 KHz in PLL
LO type	Auto-Reference
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Single-Band
output frequency band 1	1052 - 1788 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 3 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+11 to +26V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	140 x 66 x 39 mm
product weight	0.5 kg

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	17.852 - 18.588 GHz
LO frequency 1	16.80 GHz
LO stability	±25 KHz in PLL
LO type	Auto-Reference
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Single-Band
output frequency band 1	1052 - 1788 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 3 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+11 to +26V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	140 x 66 x 39 mm
product weight	0.5 kg

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	18.372 - 19.271 GHz
LO frequency 1	17.40 GHz
LO stability	±25 KHz in PLL
LO type	Auto-Reference
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Single-Band
output frequency band 1	972 - 1871 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 3 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+11 to +26V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	140 x 66 x 39 mm
product weight	0.5 kg

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 10 to 0 dBm
input frequency band 1	18.372 - 19.271 GHz
LO frequency 1	17.40 GHz
LO stability	±25 KHz in PLL
LO type	Auto-Reference
noise figure max	1.6 dB
noise figure typ	1.3 dB
number of onboard LOs	Single-Band
output frequency band 1	972 - 1871 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 3 dB p-p max.
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+11 to +26V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	140 x 66 x 39 mm
product weight	0.5 kg

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 100 x 70 mm
Unit Package Weight	0.5 kg
