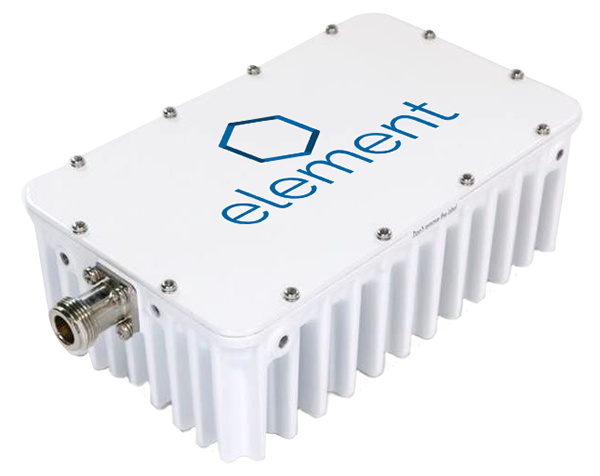

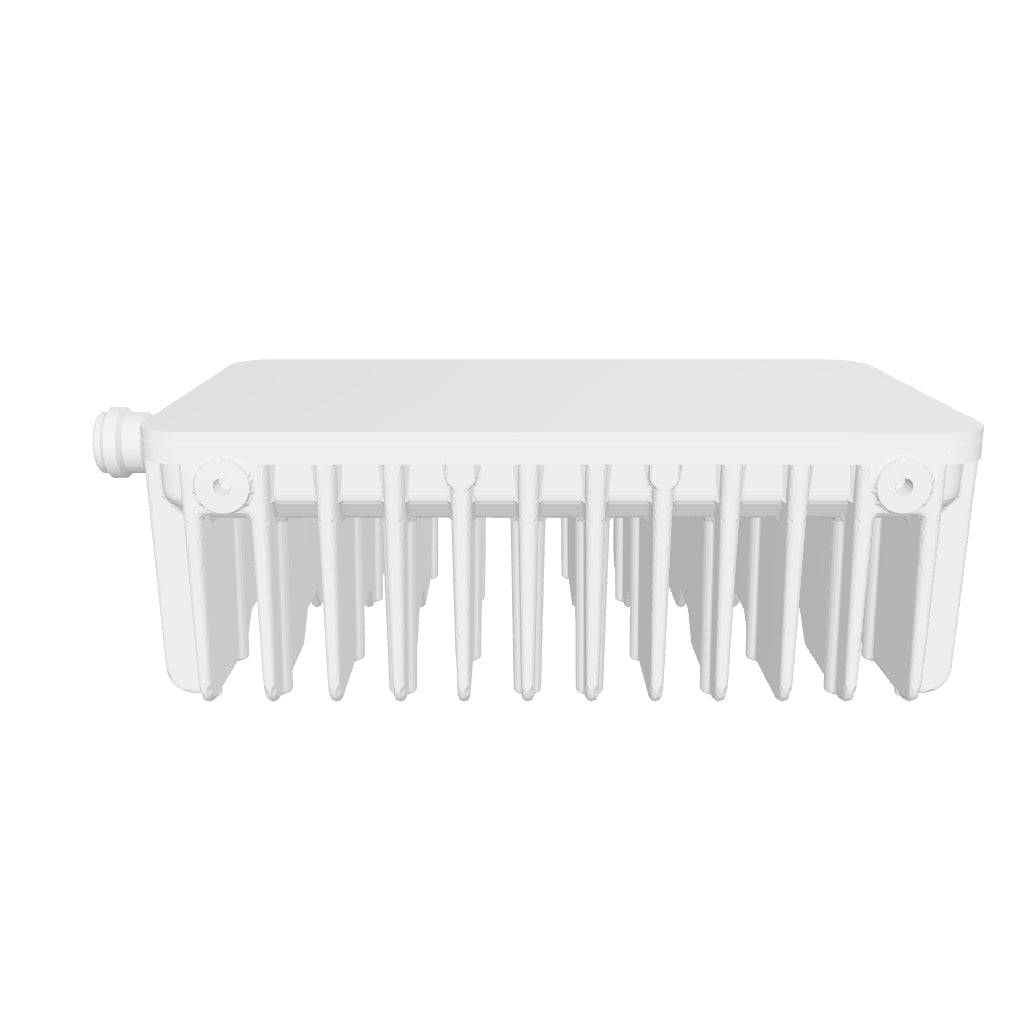

ELEMENT 6W Ku-Band MINIBUC
ELEMENT 6W Ku-Band MINIBUC
ELEMENT 6W Ku-Band MINIBUC

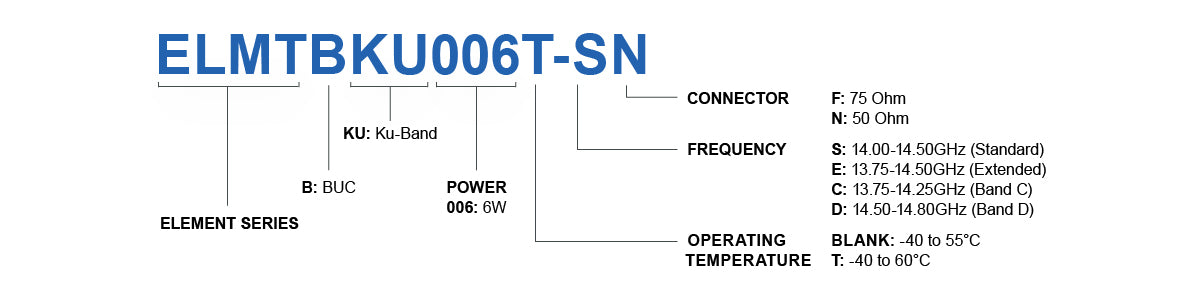

ELMTBKU006-EF

ELEMENT 6W Ku-Band MINIBUC

ELMTBKU006 Series

Precio habitual
$1,580.25
/
Quantity Available: 0
Minimum Quantity Order: 5
Next Availability: Not Applicable
Next Availability Lead Time: 4 - 6 Weeks
Ex Works: Korea

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



KEY SPECIFICATIONS
band Ku-Band
band type E: Extended
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 6W
Product Revision D
RF SPECIFICATIONS
Gain Flatness (over any 40MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
Gain Flatness (over temperature) ≤ 4.0 dB p-p
input VSWR 2.0 : 1 max.
linear gain max 65 dB
linear gain min 55 dB
linear gain typ 60 dB
output P1dB 37.8 dBm min.
output power psat 38.3 dBm min.
output spurious in band ≤ -60 dBc
output spurious out of band ≤ -50 dBc
output VSWR 2.0 : 1 max.
phase noise 100Hz offset max -60 dBc/Hz
phase noise 100kHz offset max -90 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 1kHz offset max -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 48W max.
power requirements +15 to +30V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF output connector WR75G
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 100% condensing
temperature operational -40 to +55°C
PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket

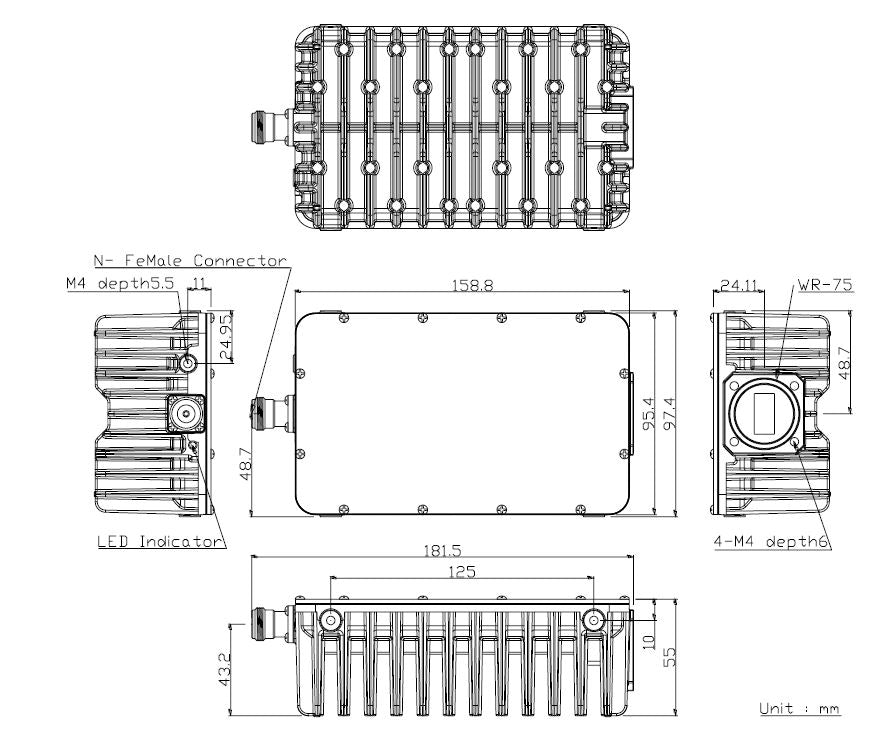

product dimensions (LxWxH) 158.8 x 97.4 x 55 mm
product weight 0.98 kg
