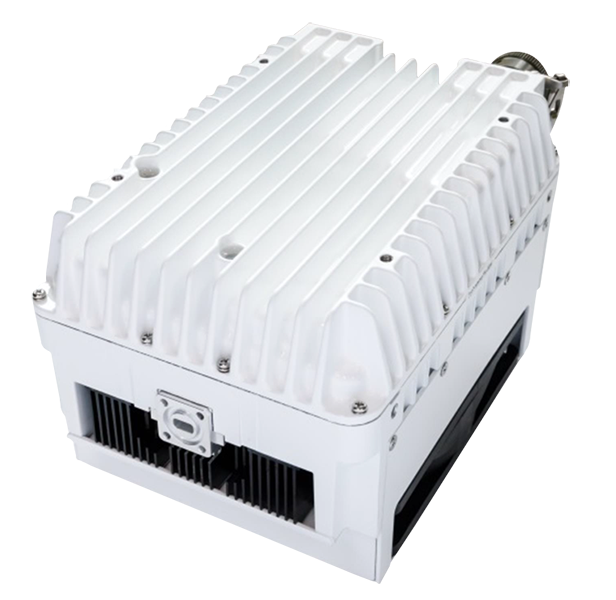

ELEMENT 7W Ka-Band BUC
ELEMENT 7W Ka-Band BUC

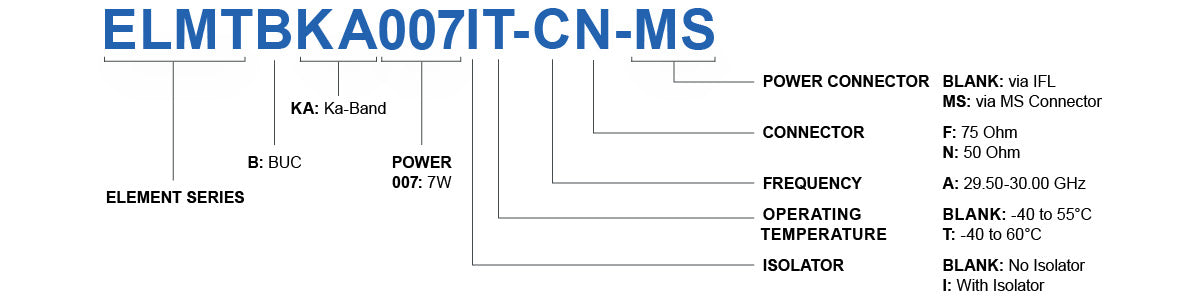

ELMTBKA007-AF

ELEMENT 7W Ka-Band BUC

ELMTBKA007 Series

Precio habitual MSRP: $9,753.09
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



KEY SPECIFICATIONS
band Ka-Band
Connector F-Connector
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1450 MHz
LO frequency 1 28.55 GHz
output power rated 7W
RF SPECIFICATIONS
Gain Flatness (over 40MHz) ≤ 4.0 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain 65 dB typ., 60 dB min., 70 dB max.
noise power density -70 dBm/Hz in Tx, -157 dBm/Hz in Rx
output P1dB 38.5 dBm min.
output power psat 39 dBm min.
output spurious in band ≤ -60 dBc
output spurious out of band P1dB ≤ -60 dBc
phase noise 100hz offset -65 dBc/Hz
reference signal frequency 0 +/- 5 dBm @ 10 MHz
spurious ≤ -60 dBc (in band); ≤ -50 dBc (out of band)
ELECTRICAL SPECIFICATIONS
input voltage +36V to + 60V DC
power consumption 130W max.
protection rating IP54
INTERFACE SPECIFICATIONS
RF input connector F: Type F Connector (75 Ohm)
RF output connector WR28
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 100% condensing
temperature operational -40 to +55°C
temperature storage -40 to +75°C

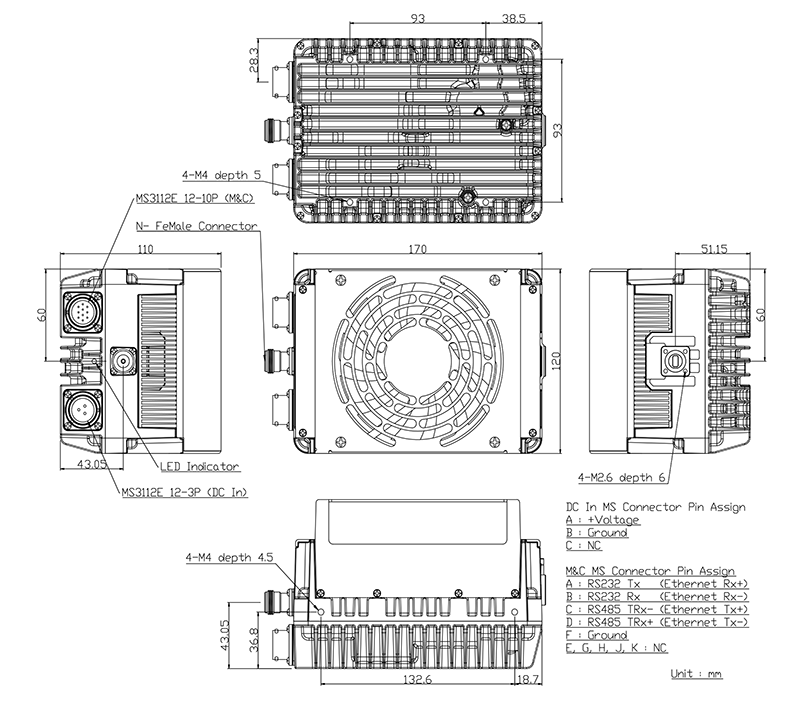

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket
product dimensions (LxWxH) 170 x 120 x 110 mm
product weight 2.37 kg (5.22 lb)
