Block Upconverter (BUCs): Ku-Bandbuc2

Norsat’s Block Upconverter’s (BUCs) provide signal transmission for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard BUCs are backed by a 2 year warranty and nearly forty years of experience as the industry’s leading provider of high performance BUCs.

Norsat BUCs feature:

  • High performance for any application
  • Excellent availability and short lead times

We also offer custom BUC solutions, please contact us for details.

ATOM BUCs & SSPAs

  • Up to 85% smaller than equivalent BUCs
  • Lightest available weight, at up to 90% less than competing products
  • Ultra efficient, consuming up to 60% less power than similar units
  • Ideal for applications such as Airborne, Comms on the Move, TWTA Replacement

Norsat Model # Input Freq.
Band (MHz)
Output Freq.
Band (GHz)
Min Output Power (dBm) LO
Frequency (GHz)
Spectral Inversion Input Connector Nominal Gain (dB)
ATOMBKU
020 20W
S:950-1450
E:950-1700
S:14.0-14.5
E:13.75-14.5
43 S:13.05
E:12.80
Non-Inv N (Female) 65
ATOMBKU
040 40W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 46 S:13.05 E:12.80 Non-Inv N (Female) 65
ATOMBKU
80 80W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 49 S:13.05 E:12.80 Non-Inv N (Female) 60
ATOMBKU
160 160W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 52 S:13.05 E:12.80 Non-Inv N (Female) 60
ATOMBKU
014BCE 14W
950-1450 12.75-13.25 (FSS30B) 41 11.8 Non-Inv N (Female) 60
ATOMBKU
028BCE 28W
950-1450 12.75-13.25 (FSS30B) 44 11.8 Non-Inv N (Female) 60
ATOMBKU
056BCE 56W
950-1450 12.75-13.25 (FSS30B) 47 11.8 Non-Inv N (Female) 60
ATOMSKU
020 20W
S:950-1450 E:950-1700 W:Varies S:14.0-14.5 E:13.75-14.5 W:13.0-17.5 43 S:13.05 E:12.80 W:Varies Non-Inv N (Female) 56
ATOMSKU
040 40W
S:950–1450 E:950-1700 W:Varies S:14.0-14.5 E:13.75-14.5 W:13.0-17.5 46 S:13.05 E:12.80 W:Varies Non-Inv N (Female) 56
 ATOMSKU
80 80W
 S:950-1450 E:950-1700 W:Varies  S:14.0-14.5 E:13.75-14.5 W:13.0-17.5 49  S:13.05 E:12.80 W:Varies  Non-Inv  N (Female)  56

FIND OUT MORE

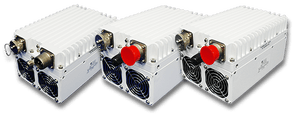

Median

Norsat Model # Input Freq. Band (MHz) Output Freq. Band (GHz) Min Output Power (dBm) LO Frequency (GHz) Spectral Inversion Input Connector Nominal Gain (dB)
MEDIBKU016 S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 42 S:13.05 E:12.80 Non-Inv N (Female) 65
MEDIBKU025
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 44 S:13.05 E:12.80 Non-Inv N (Female) 65
MEDIBKU040 S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 46 S:13.05 E:12.80 Non-Inv N (Female) 65

Element

Norsat Model # Input Freq. Band (MHz) Output Freq. Band (GHz) Min Output Power (dBm) LO Frequency (GHz) Spectral Inversion Input Connector Nominal Gain (dB)
ELMTKu
002 2W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 33 S:13.05 E:12.80 Non-Inv F or N (Female) 55
ELMTKu
003 3W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 34 S:13.05 E:12.80 Non-Inv F or N (Female) 55
ELMTKu
004 4W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 36 S:13.05 E:12.80 Non-Inv F or N (Female) 58
ELMTKu
006 6W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 37.8 S:13.05 E:12.80 Non-Inv F or N (Female) 60
ELMTKu
008 8W
S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 39 S:13.05 E:12.80 Non-Inv F or N (Female) 60
ELMTKu010 10W S:950-1450 E:950-1700 S:14.0-14.5 E:13.75-14.5 40 S:13.05 E:12.80 Non-Inv F or N (Female) 60
1041XRTS Ku 4W Selectable Freq 950-1450 or 950-1700 in 1 unit 14.0-14.5 13.75-14.5 33 13.05 12.80 Non-Inv F or N (Female) 58
1081XRTS Ku 8W Selectable Freq 950-1450 or 950-1700 on 1 unit 14.0-14.5 13.75-14.5 39 13.05 12.80 Non-Inv F or N (Female) 60

Block Upconverter (BUCs): Ka-BANDbuc2

Norsat’s Block Upconverter’s (BUCs) provide signal transmission for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard BUCs are backed by a 2 year warranty and nearly forty years of experience as the industry’s leading provider of high performance BUCs.

Norsat BUCs feature:

  • High performance for any application
  • Excellent availability and short lead times

We also offer custom BUC solutions, please contact us for details.

Norsat Model # Input Freq. Band (MHz) Output Freq. Band (GHz) Min Output Power (dBm) LO Frequency (GHz) Spectral Inversion Input Connector Nominal Gain (dB)
ATOMBKA025 S:950-1950 M:1-2GHz S:29-30 M:30-31 44 Non-Inv N (Female) 65
ATOMBKA050 S:950-1950 M:1-2GHz S:29-30 M:30-31 47 28.05 Non-Inv N (Female) 60
ATOMSKA025 S:950-1950 M:1-2GHz S:29-30 M:30-31 44 Non-Inv 2.92 mm 50
7005STC-O3b Ka 5W A:1052-1788 B:972-1871 A:27.652-28.388 B:28.172-29.071 35 A:26.60 B:27.20 Non-Inv N (Female) 58
7010STC-O3b Ka 10W A:1052-1788 B:972-1871 A:27.652-28.388 B:28.172-29.071 38 A:26.60 B:27.20 Non-Inv N (Female) 65
7020STC-O3b Ka 20W A:1052-1788 B:972-1871 A:27.652-28.388 B:28.172-29.071 42 A:26.60 B:27.20 Non-Inv N (Female) 65

Block Upconverter (BUCs): C-BANDbuc2

Norsat’s Block Upconverter’s (BUCs) provide signal transmission for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard BUCs are backed by a 2 year warranty and nearly forty years of experience as the industry’s leading provider of high performance BUCs.

Norsat BUCs feature:

  • High performance for any application
  • Excellent availability and short lead times

We also offer custom BUC solutions, please contact us for details.

Norsat Model # Input Freq. Band (MHz) Output Freq. Band (GHz) Min Output Power (dBm) LO Frequency (GHz) Spectral Inversion Input Connector Nominal Gain (dB)
ELMTC005 C 5W S:950-1525 P:1150-1450 I:975-1275 S:5.850-6.425 P:6.425-6.725 I:6.725-7.025 37 S:4.90 P:5.275 I:5.75
ELMTC010 C 10W S:950-1525 P:1150-1450 I:975-1275 S:5.850-6.425 P:6.425-6.725 I:6.725-7.025 40 S:4.90 P:5.275 I:5.75 Non-Inv F or N (Female) 65
ELMTC020 C 20W S:950-1525 P:1150-1450 I:975-1275 S:5.850-6.425 P:6.425-6.725 I:6.725-7.025 43 S:4.90 P:5.275 I:5.75 Non-Inv F or N (Female) 65
ELMTC040 C 40W S:950-1525 P:1150-1450 I:975-1275 S:5.850-6.425 P:6.425-6.725 I:6.725-7.025 46 S:4.90 P:5.275 I:5.75 Non-Inv F or N (Female) 65

Block Upconverter (BUCs): X-BANDbuc2

Norsat’s Block Upconverter’s (BUCs) provide signal transmission for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard BUCs are backed by a 2 year warranty and nearly forty years of experience as the industry’s leading provider of high performance BUCs.

Norsat BUCs feature:

  • High performance for any application
  • Excellent availability and short lead times

We also offer custom BUC solutions, please contact us for details.

Norsat Model # Input Freq. Band (MHz) Output Freq. Band (GHz) Min Output Power (dBm) LO Frequency (GHz) Spectral Inversion Input Connector Nominal Gain (dB)
5010XRT-3 10W X Band 0.95 – 1.45 7.9 – 8.4 40 6.95 Non-Inv F or N (Female) 55
