RSW-100304

1:1 Ka-Band LNA Redundant Switch System w/ LNA-100158

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS

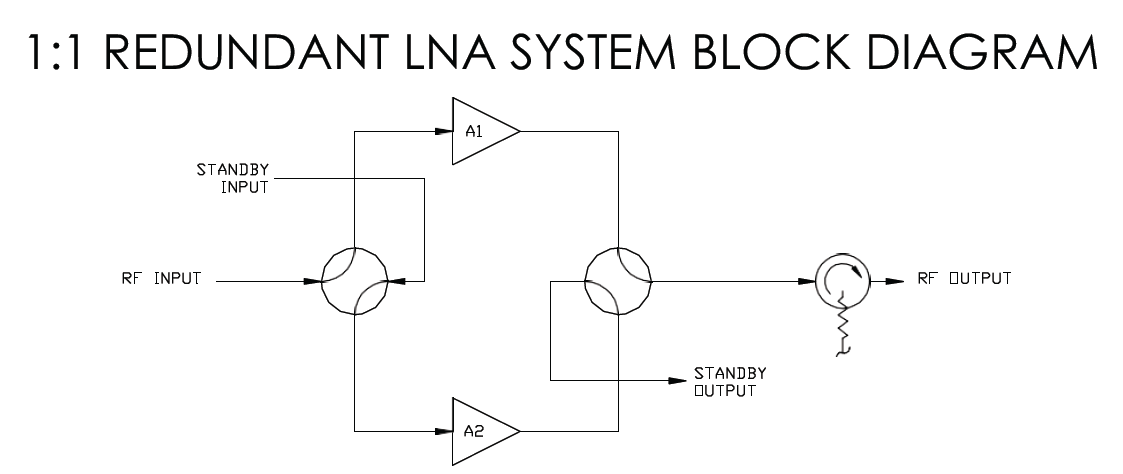

redundancy 1:1
switchover time 80 ms max.
Product Revision A
RF SPECIFICATIONS
AM PM conversion 0.5°/dB max. to 0 dBm output
Gain 50 dB min.
gain flatness 0.4 dB/40 MHz
1.0 dB peak-to-peak/RF bands up to 500 MHz
1.5 dB peak-to-peak/RF bands up to 800 MHz
2.0 dB peak-to-peak/RF bands greater than 800 MHz
gain slope 0.2 dB/10 MHz max.
gain stability ±0.2 dB/24 hours (constant temperature)
5 dB maximum/-40 to +60°C
group delay linear 0.02 ns/MHz max.
group delay parabolic 0.001 ns/MHz2 max.
group delay ripple 0.1 ns peak-to-peak max.
impedance 50 Ω
input return loss 19 dB min.
isolation 50 dB min.
max input no damage +10 dBm max.
noise temperature typ Waveguide Switch: 12°
output P1dB +10 dBm min.
output return loss 20 dB min.
output spurious Below thermal noise
ELECTRICAL SPECIFICATIONS
input power 90-250 VAC, 47-63 Hz
power consumption 20 W typical, 50 W peak during switchover
transmit desensitivity threshold C-band: -20 dBm typ.
X-band: -50 dBm typ.
Ku-band: -20 dBm typ.
Ka-band: -50 dBm typ.
INTERFACE SPECIFICATIONS
connector Primary Power Input: IEC-320 (indoor controller)
Summary Alarm Interface Mating Connector: DEM-9P
Remote Interface Connector: DEM-9S for RS485 and RS422, RJ4 female for Ethernet
m and c LNA Tracking
summary alarm Contact closure/open for DC voltage and/or amplifier alarm.
Status alarm readout on remote control bus.
waveguide WR-42
ENVIRONMENTAL SPECIFICATIONS
altitude non-operational Up to 40,000 feet
altitude operational Up to 10,000 feet
component Couplers included
shock and vibration Normal handling by commercial carriers
temperature non-operational -50 to +70°C
temperature operational Rack Controller: 0 to 50°C
Hub Controller: -20 to +60°C
Amplifier Assembly: -40 to +60°C
weatherproof Outdoor Rated

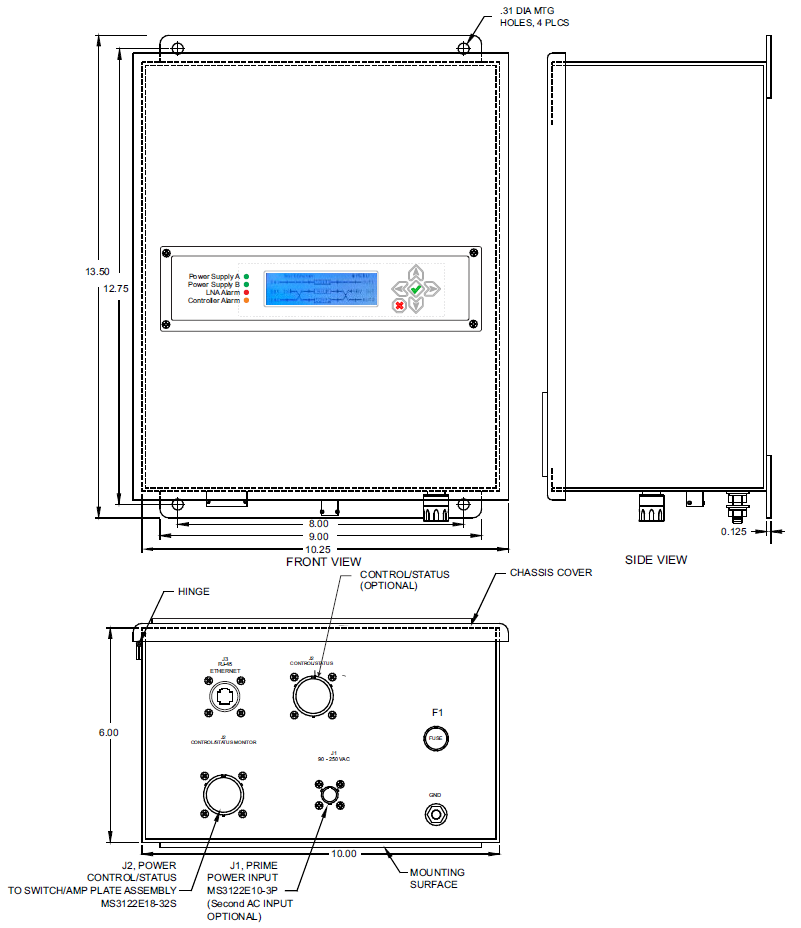

PHYSICAL SPECIFICATIONS
cable length 10 ft Power/Control Cable

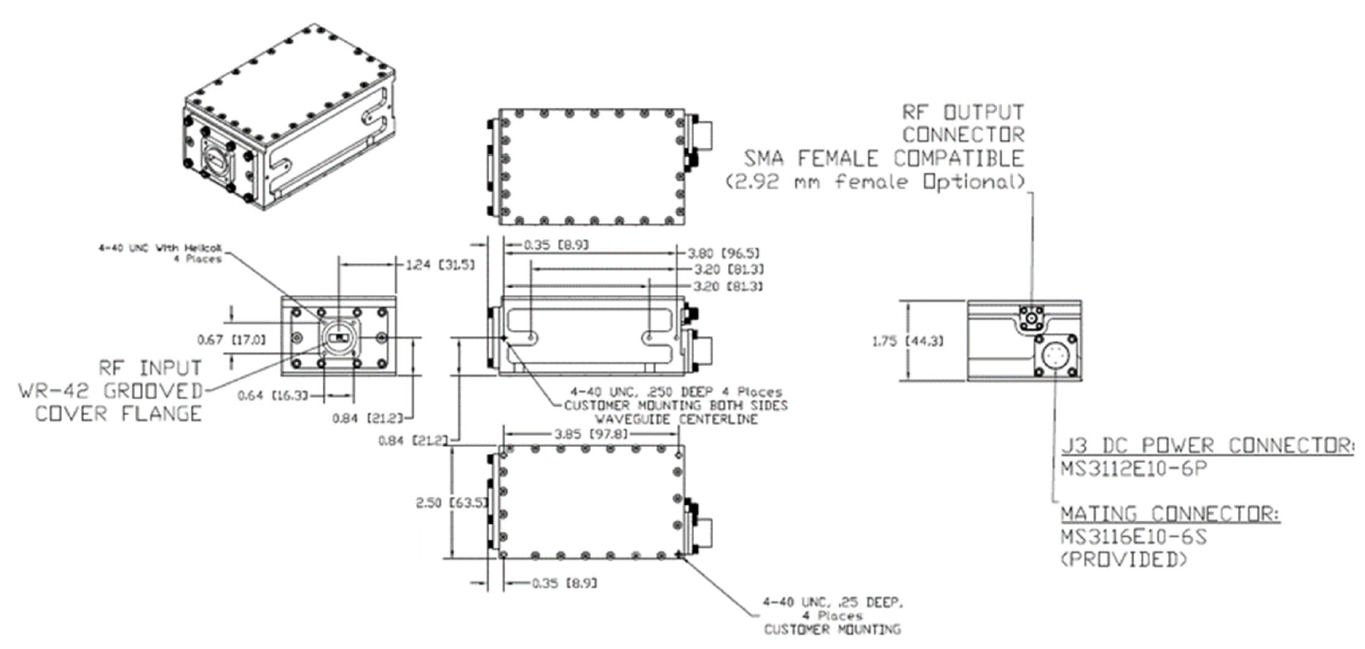

compatible LNA LNA-100158
product height 44.45 mm max.
product length 482.6 mm max.
product weight 20 lbs nominal
product width 508 mm max.
