BDC-1000AFD

1000 BDC de banda Ku de banda única

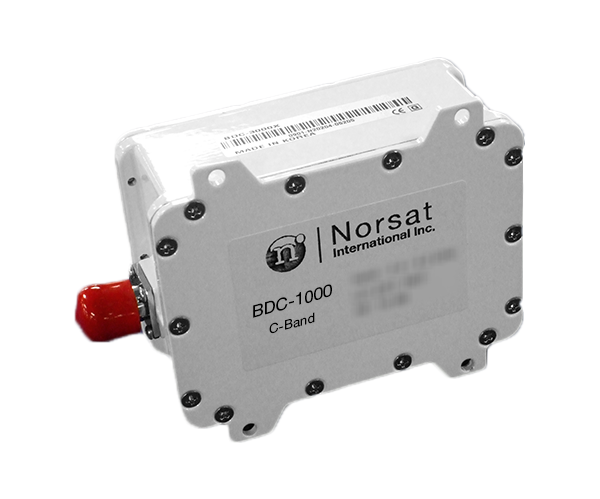

BDC-1000 Series

Precio habitual
$1,760.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



Los convertidores descendentes de bloque (BDC) de Norsat proporcionan una conversión de señal de alto rendimiento para la comunicación por satélite.

KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 11.70 - 12.20 GHz
LO frequency 1 10.75 GHz
LO stability ±30 kHz
noise figure 15 dB max. at room temp.
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision 1
RF SPECIFICATIONS
conversion gain max 22 dB
conversion gain min 18 dB
conversion gain typ 20 dB
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 1.8 : 1 max.
output P1dB + 5 dBm min.
phase noise 100kHz offset max -95 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 1kHz offset max -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
power requirements 15 - 24 V
INTERFACE SPECIFICATIONS
RF input connector S: SMA 50 Ohm
RF output connector F: 75 Ohm
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
temperature operational -40 to +60°C
temperature storage -40 to +80°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 107 x 78 x 44 mm
product weight 0.3 kg
