GTR5218

Portable Intelligent Reconnaissance Robot

GROUND GUARDIAN

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

0 en stock

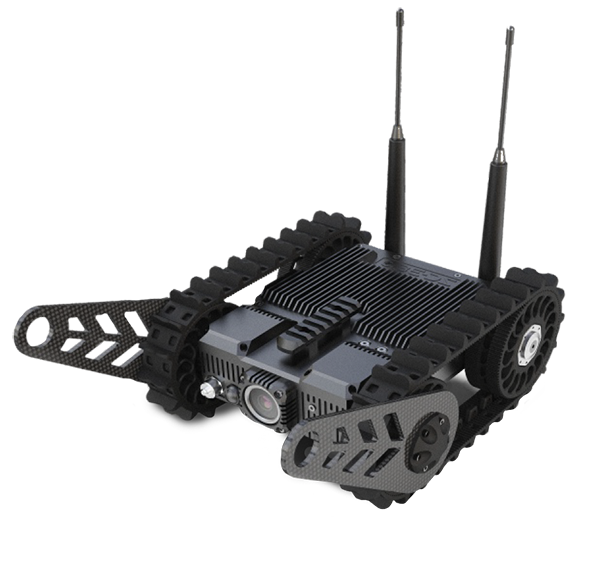

GTR5218 from the Ground Guardian series portable intelligent reconnaissance robot is rugged, small, and lightweight, perfect for carrying in a backpack. The robot survives dropping on the ground and can be quickly deployed in narrow spaces. It moves quietly and fast and is equipped with cameras and pickups to collect real-time audio and video data of the on-site environment, even in darkness.

Individuals can remotely manipulate the robot to certain places or dangerous areas while maintaining a safe distance, monitoring the place or target objects in real time, so as to make decisions and actions quickly.

Standard Accessories

Chassis, Communication Station (including antenna and battery), Controller, Connection Cable, Headset, Charger for Chassis and Charger for Communication Station, Inner Hexagon Tool Set, Transport Case

KEY SPECIFICATIONS
color camera 2, both support infrared night vision
communication station charging time About 2 hours
communication station working hours 3-5hours (23℃)
dropping height Up to 3 m
FOV 150°
mobility agility Zero radius turn
mobility slope Up to 35°
mobility speed Up to 7-8 km/h
mobility vertical obstacles Up to 180 mm
network type Point-to-multipoint or Wireless Ad Hoc Network (iMesh)
runtime 3.5 hours
ELECTRICAL SPECIFICATIONS
battery MTBF Cycle charge and discharge 500 times (23℃)
camera resolution 1080P
chassis battery 2.5Ah, 24V
communication distance 1 km
communication frequency 800M, 1.4GHz or 2.4G
communication station battery 6Ah, 12V
communication station power dissipation 4-12W (connecting the Controller)
controller operating system Android 12
controller power dissipation 3-11W
controller screen 7 inches, 10-point touch
controller storage RAM 4GB / ROM 32 GB
lightning mode of camera Infrared Light
INTERFACE SPECIFICATIONS
chassis interface 1 aviation plug
communication station interface 1 aviation plug
controller resolution 1200 * 1920
controller screen luminance ≤1500nit
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -20°C - +50°C
temperature storage -25°C - +55°C
PHYSICAL SPECIFICATIONS
chassis height 140 mm
chassis length 298 mm
chassis weight 3.75 kg
chassis width 254.5 mm
communication station height 60.7 mm
communication station length 85 mm
communication station weight 0.7 kg
communication station width 126 mm
controller height 65 mm
controller length 275 mm
controller weight 1.2 kg
controller width 147.5 mm
payload 4 kg
