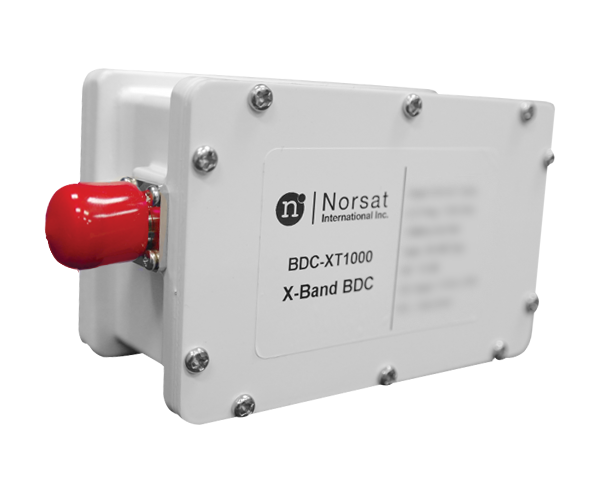

![1000 BDC de banda X de banda única]()
![1000 BDC de banda X de banda única]()
| KEY SPECIFICATIONS |
| band |
X-Band |
| input frequency band 1 |
X-Band: 8.0 - 8.7 GHz |
| lo stability |
Phase Locked to External Reference |
| noise figure |
13 dB |
| output frequency 1 |
L-Band: 950 - 1650 MHz |
| RF SPECIFICATIONS |
| conversion gain |
30 dB typ., 28 dB min., 32 dB max. |
| input VSWR |
2.2 : 1 |
| lo frequency 1 |
7.05 GHz |
| output VSWR |
2.2 : 1 |
| INTERFACE SPECIFICATIONS |
| RF input connector |
N- 50 Ohm |
| RF output connector |
F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS |
| temperature operational |
-40 to +60°C |
| temperature storage |
-50 to +70°C |

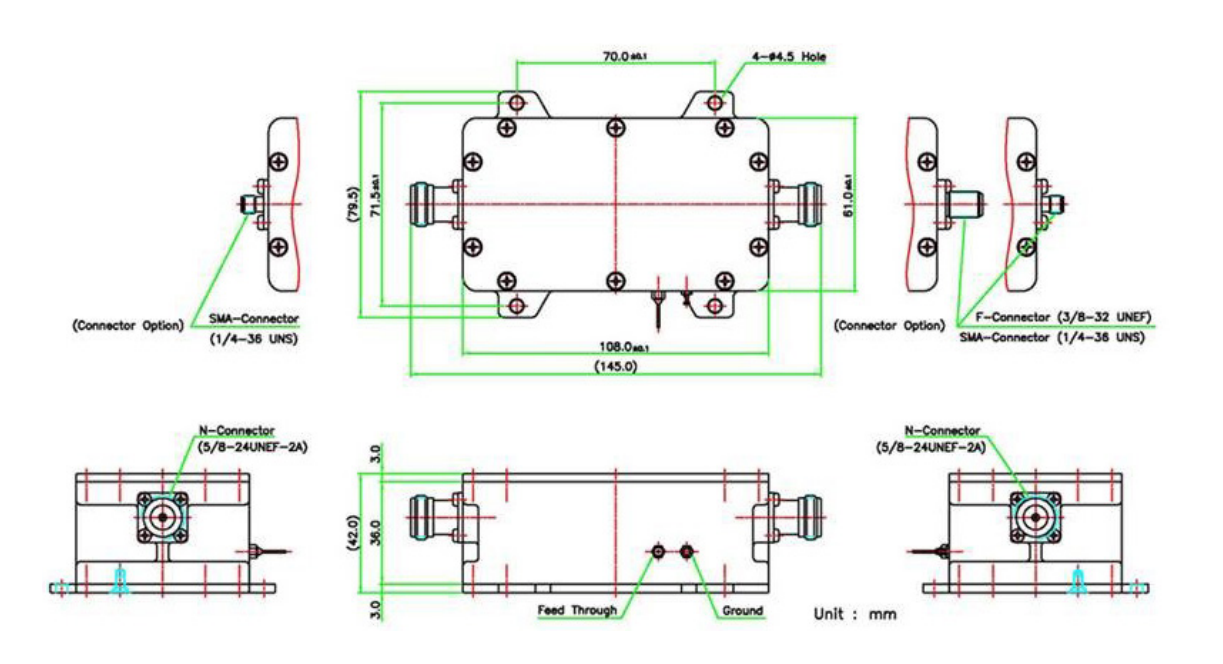

| PHYSICAL SPECIFICATIONS |
| dimensions (LxWxH) |
139 x 80 x 42 mm |
| Weight |
550g |
| KEY SPECIFICATIONS |
| band |
X-Band |
| input frequency band 1 |
X-Band: 8.0 - 8.7 GHz |
| lo stability |
Phase Locked to External Reference |
| noise figure |
13 dB |
| output frequency 1 |
L-Band: 950 - 1650 MHz |
| RF SPECIFICATIONS |
| conversion gain |
30 dB typ., 28 dB min., 32 dB max. |
| input VSWR |
2.2 : 1 |
| lo frequency 1 |
7.05 GHz |
| output VSWR |
2.2 : 1 |
| INTERFACE SPECIFICATIONS |
| RF input connector |
N- 50 Ohm |
| RF output connector |
N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS |
| temperature operational |
-40 to +60°C |
| temperature storage |
-50 to +70°C |
| PHYSICAL SPECIFICATIONS |
| dimensions (LxWxH) |
139 x 80 x 42 mm |
| Weight |
550g |
| INFORMATION |
| HS Code |
8517700000 |
| Country of Origin |
KR |
| ECCN Number |
EAR99 |
| Shipping Package Dimensions |
139 x 80 x 42 mm |
| Shipping Package Weight |
600g |
BDC-XT1000-Spec-Sheet.pdf
