Name: 3000 banda única banda C EXT REF BDC
Brand: Norsat International Inc.
SKU: BDC-3000XFD-10S
Availability: OutOfStock

BDC-3000XFD-10S

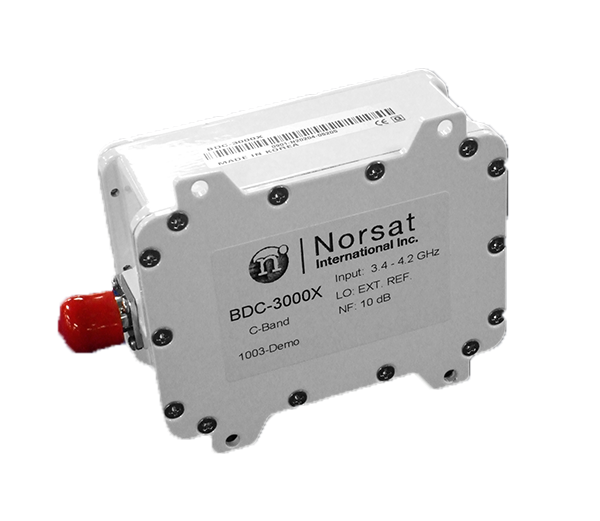

3000 banda única banda C EXT REF BDC

BDC-3000X Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":51861959541103,"title":"F - 75 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","option1":"F - 75 Ohm","option2":"D - DC Power through Feed-Through and Output Connector","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XFD","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - F - 75 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","public_title":"F - 75 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","options":["F - 75 Ohm","D - DC Power through Feed-Through and Output Connector","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458234753207,"title":"F - 75 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","option1":"F - 75 Ohm","option2":"D - DC Power through Feed-Through and Output Connector","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XFD-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - F - 75 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","public_title":"F - 75 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","options":["F - 75 Ohm","D - DC Power through Feed-Through and Output Connector","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959573871,"title":"F - 75 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","option1":"F - 75 Ohm","option2":"C - DC Power through Output Connector","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XFC","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - F - 75 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","public_title":"F - 75 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","options":["F - 75 Ohm","C - DC Power through Output Connector","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458234818743,"title":"F - 75 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","option1":"F - 75 Ohm","option2":"C - DC Power through Output Connector","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XFC-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - F - 75 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","public_title":"F - 75 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","options":["F - 75 Ohm","C - DC Power through Output Connector","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959606639,"title":"F - 75 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","option1":"F - 75 Ohm","option2":"P - DC Power through Feed-Through","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XFP","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - F - 75 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","public_title":"F - 75 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","options":["F - 75 Ohm","P - DC Power through Feed-Through","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458234884279,"title":"F - 75 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","option1":"F - 75 Ohm","option2":"P - DC Power through Feed-Through","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XFP-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - F - 75 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","public_title":"F - 75 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","options":["F - 75 Ohm","P - DC Power through Feed-Through","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959639407,"title":"N - 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","option1":"N - 50 Ohm","option2":"D - DC Power through Feed-Through and Output Connector","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XND","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - N - 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","public_title":"N - 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","options":["N - 50 Ohm","D - DC Power through Feed-Through and Output Connector","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458234949815,"title":"N - 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","option1":"N - 50 Ohm","option2":"D - DC Power through Feed-Through and Output Connector","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XND-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - N - 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","public_title":"N - 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","options":["N - 50 Ohm","D - DC Power through Feed-Through and Output Connector","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959672175,"title":"N - 50 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","option1":"N - 50 Ohm","option2":"C - DC Power through Output Connector","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XNC","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - N - 50 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","public_title":"N - 50 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","options":["N - 50 Ohm","C - DC Power through Output Connector","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458235015351,"title":"N - 50 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","option1":"N - 50 Ohm","option2":"C - DC Power through Output Connector","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XNC-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - N - 50 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","public_title":"N - 50 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","options":["N - 50 Ohm","C - DC Power through Output Connector","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959704943,"title":"N - 50 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","option1":"N - 50 Ohm","option2":"P - DC Power through Feed-Through","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XNP","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - N - 50 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","public_title":"N - 50 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","options":["N - 50 Ohm","P - DC Power through Feed-Through","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458235080887,"title":"N - 50 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","option1":"N - 50 Ohm","option2":"P - DC Power through Feed-Through","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XNP-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - N - 50 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","public_title":"N - 50 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","options":["N - 50 Ohm","P - DC Power through Feed-Through","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959737711,"title":"S - SMA 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","option1":"S - SMA 50 Ohm","option2":"D - DC Power through Feed-Through and Output Connector","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XSD","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - S - SMA 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","public_title":"S - SMA 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ Blank - 10MHz via Output Connector","options":["S - SMA 50 Ohm","D - DC Power through Feed-Through and Output Connector","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458235146423,"title":"S - SMA 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","option1":"S - SMA 50 Ohm","option2":"D - DC Power through Feed-Through and Output Connector","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XSD-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - S - SMA 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","public_title":"S - SMA 50 Ohm \/ D - DC Power through Feed-Through and Output Connector \/ 10S -10MHz via separate SMA","options":["S - SMA 50 Ohm","D - DC Power through Feed-Through and Output Connector","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959770479,"title":"S - SMA 50 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","option1":"S - SMA 50 Ohm","option2":"C - DC Power through Output Connector","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XSC","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - S - SMA 50 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","public_title":"S - SMA 50 Ohm \/ C - DC Power through Output Connector \/ Blank - 10MHz via Output Connector","options":["S - SMA 50 Ohm","C - DC Power through Output Connector","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458235211959,"title":"S - SMA 50 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","option1":"S - SMA 50 Ohm","option2":"C - DC Power through Output Connector","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XSC-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - S - SMA 50 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","public_title":"S - SMA 50 Ohm \/ C - DC Power through Output Connector \/ 10S -10MHz via separate SMA","options":["S - SMA 50 Ohm","C - DC Power through Output Connector","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51861959803247,"title":"S - SMA 50 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","option1":"S - SMA 50 Ohm","option2":"P - DC Power through Feed-Through","option3":"Blank - 10MHz via Output Connector","sku":"BDC-3000XSP","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3000 banda única banda C EXT REF BDC - S - SMA 50 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","public_title":"S - SMA 50 Ohm \/ P - DC Power through Feed-Through \/ Blank - 10MHz via Output Connector","options":["S - SMA 50 Ohm","P - DC Power through Feed-Through","Blank - 10MHz via Output Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41458235277495,"title":"S - SMA 50 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","option1":"S - SMA 50 Ohm","option2":"P - DC Power through Feed-Through","option3":"10S -10MHz via separate SMA","sku":"BDC-3000XSP-10S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3000 banda única banda C EXT REF BDC - S - SMA 50 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","public_title":"S - SMA 50 Ohm \/ P - DC Power through Feed-Through \/ 10S -10MHz via separate SMA","options":["S - SMA 50 Ohm","P - DC Power through Feed-Through","10S -10MHz via separate SMA"],"price":176000,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Los convertidores descendentes de bloque (BDC) de Norsat proporcionan una conversión de señal de alto rendimiento para la comunicación por satélite.

KEY SPECIFICATIONS
band	C-Band

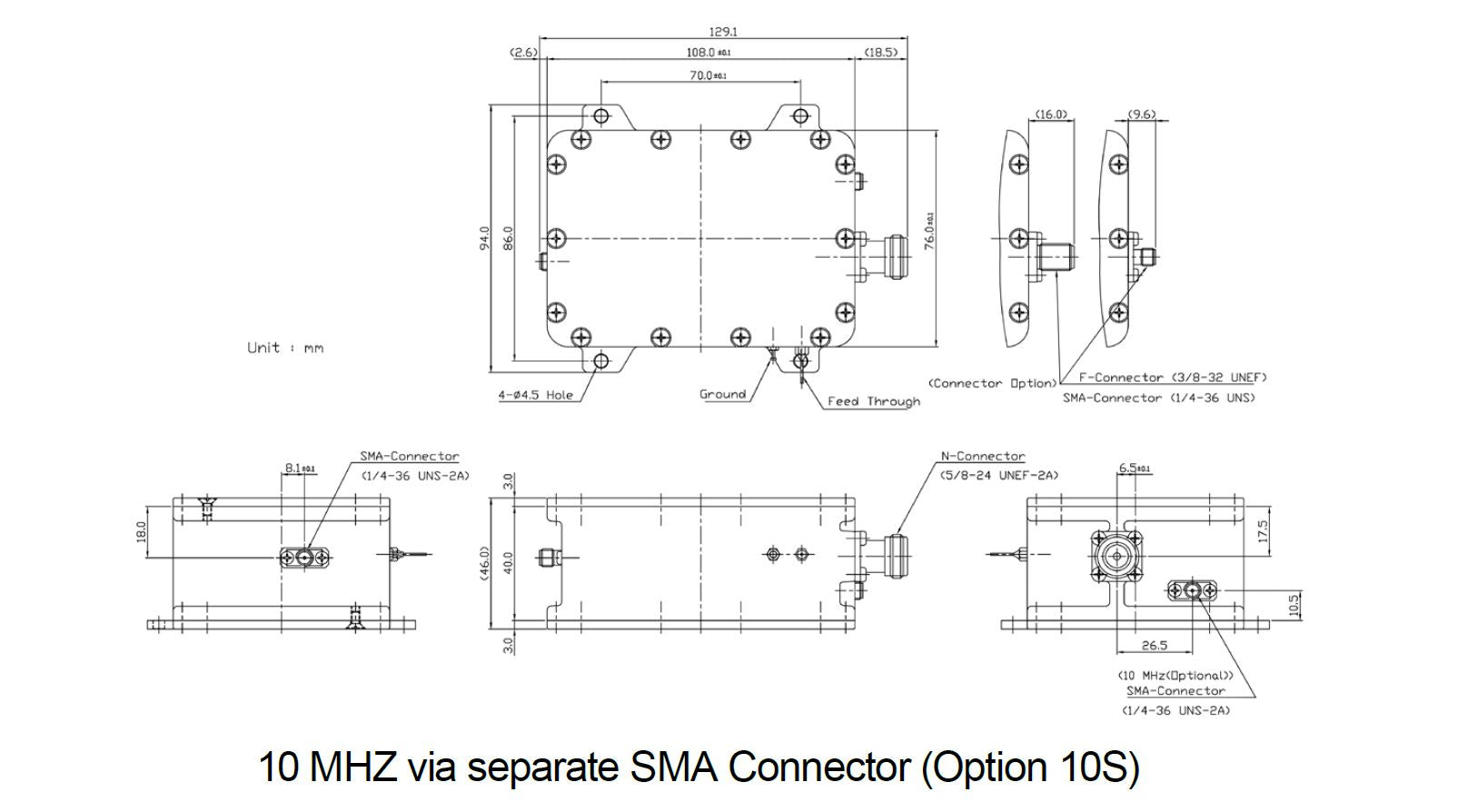

external ref freq	10 MHz (sine-wave), -10 to 0 dBm, via Separate SMA Connector
input frequency band 1	3.40 - 4.20 GHz
LO frequency 1	5.15 GHz
LO stability	Ext Ref
noise figure	10 dB max. at room temp.
number of onboard LOs	Single-Band
output frequency band 1	950 - 1750 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	42 dB
conversion gain min	38 dB
conversion gain typ	40 dB
Gain Flatness (over full band)	≤ 4 dB p-p
input VSWR	2.0 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise SSB max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	350 mA max.
input power	via Feed-Through and Output Connector
power requirements	+12 to +24 VDC

INTERFACE SPECIFICATIONS
RF input connector	S: SMA 50 Ohm
RF output connector	F: 75 Ohm

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	46 mm
product length	108 mm
product weight	0.62 kg
product width	94 mm

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
input power	via Feed-Through and Output Connector
power requirements	+12 to +24 VDC

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	129 mm x 94 mm x 46 mm
Unit Package Weight	-
COMPLIANCE
	Yes
	Yes
	No
