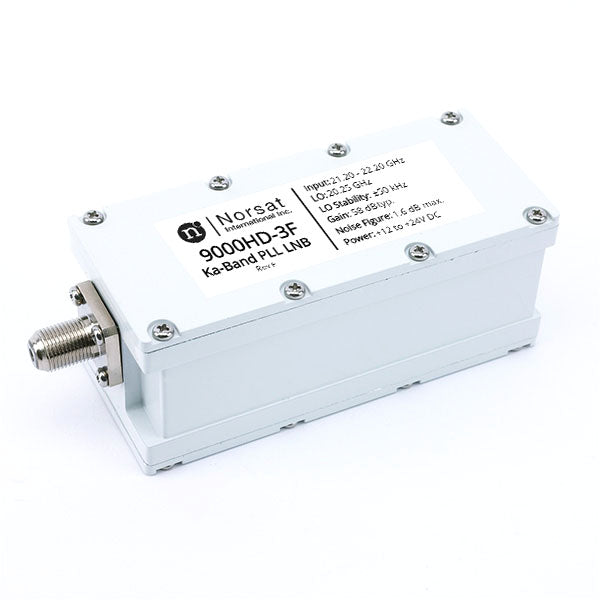

KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
21.20 - 22.20 GHz
LO frequency 1
20.25 GHz
LO stability
±50 kHz
LO type
PLL
noise figure max
1.6 dB
noise figure typ
1.3 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1950 MHz
Product Revision
F
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
58 dB
Gain Flatness (over full band)
+/- 2 dB p-p max
image rejection
42 dBc min.
input VSWR
2.2 : 1 max.
output P1dB
+ 5 dBm min.
output VSWR
2.0 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS

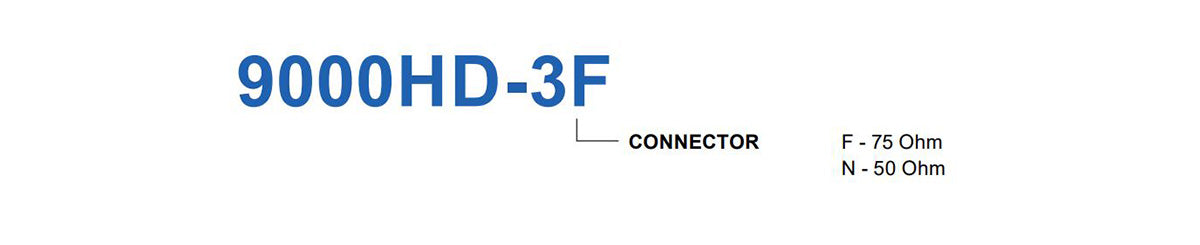

IF connector
F-Connector
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C

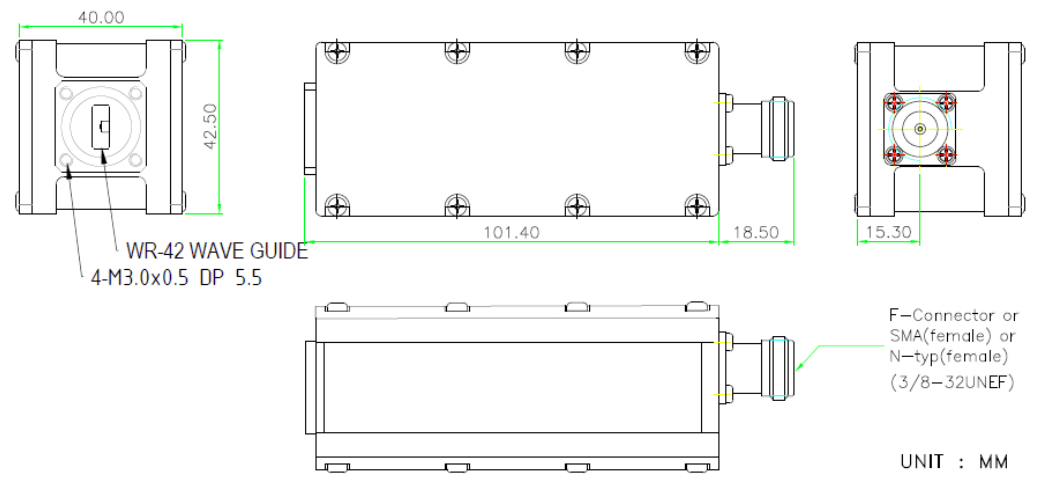

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
123 x 60 x 39 mm
product weight
0.4 kg
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
21.20 - 22.20 GHz
LO frequency 1
20.25 GHz
LO stability
±50 kHz
LO type
PLL
noise figure max
1.6 dB
noise figure typ
1.3 dB
number of onboard LOs
Single-Band
output frequency band 1
950 - 1950 MHz
Product Revision
E
RF SPECIFICATIONS
conversion gain max
65 dB
conversion gain min
55 dB
conversion gain typ
58 dB
Gain Flatness (over full band)
+/- 2 dB p-p max
image rejection
42 dBc min.
input VSWR
2.2 : 1 max.
output P1dB
+ 5 dBm min.
output VSWR
2.0 : 1 max.
phase noise 100kHz offset max
-90 dBc/Hz
phase noise 10kHz offset max
-80 dBc/Hz
phase noise 1kHz offset max
-70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption
300 mA
power requirements
+12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector
N-Connector
RF input connector
WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +60°C
PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)
123 x 60 x 39 mm
product weight
0.4 kg
INFORMATION
HS Code
8517690000
Country of Origin
Made in Korea
Ex Works
Richmond, BC, Canada
ECCN Number
EAR99
Unit Package Dimensions
-
Unit Package Weight
0.4 kg
COMPLIANCE
Yes
Yes
Yes
