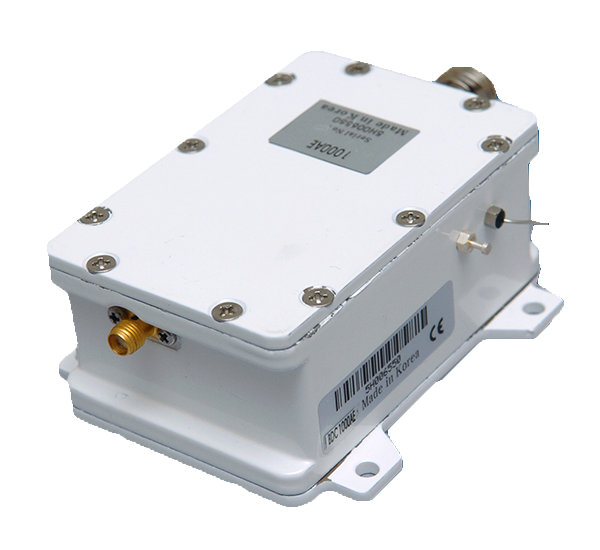

9000X banda única banda Ka EXT REF BDC
9000X banda única banda Ka EXT REF BDC
9000X banda única banda Ka EXT REF BDC

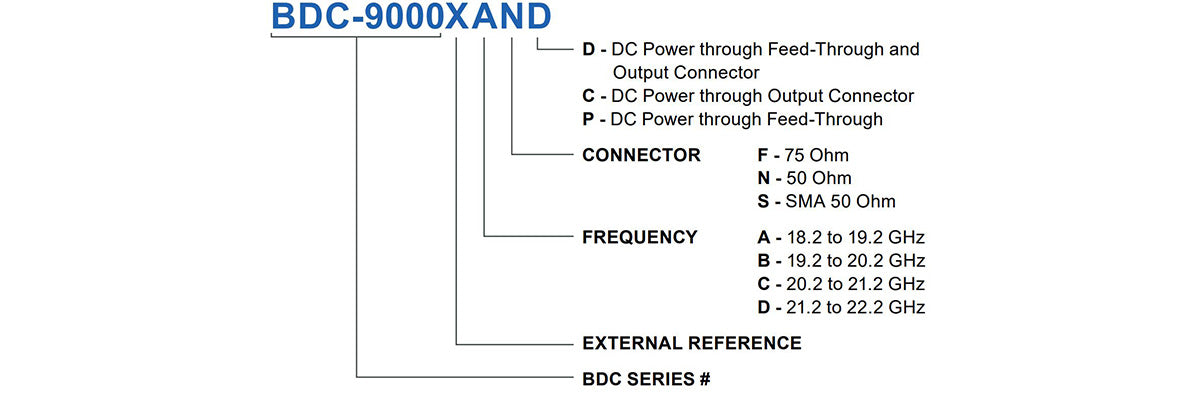

BDC-9000XAF

9000X banda única banda Ka EXT REF BDC

BDC-9000 Series

Precio habitual
$4,759.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


0 en stock



Los convertidores descendentes de bloque (BDC) de Norsat proporcionan una conversión de señal de alto rendimiento para la comunicación por satélite.
KEY SPECIFICATIONS
band Ka-Band
external ref freq -5 to +5 dBm
input frequency band 1 18.20 - 19.20 GHz
LO frequency 1 17.25 GHz
LO stability Ext Ref
noise figure 18 dB max. at room temp.
number of onboard LOs Single-Band
output frequency band 1 950 - 1950 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 28 dB
conversion gain min 22 dB
conversion gain typ 25 dB
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
phase noise SSB max Depends on External Reference
ELECTRICAL SPECIFICATIONS
power requirements 15 - 24 V
INTERFACE SPECIFICATIONS
RF input connector S: SMA 50 Ohm
RF output connector F: 75 Ohm
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C
temperature storage -40 to +80°C

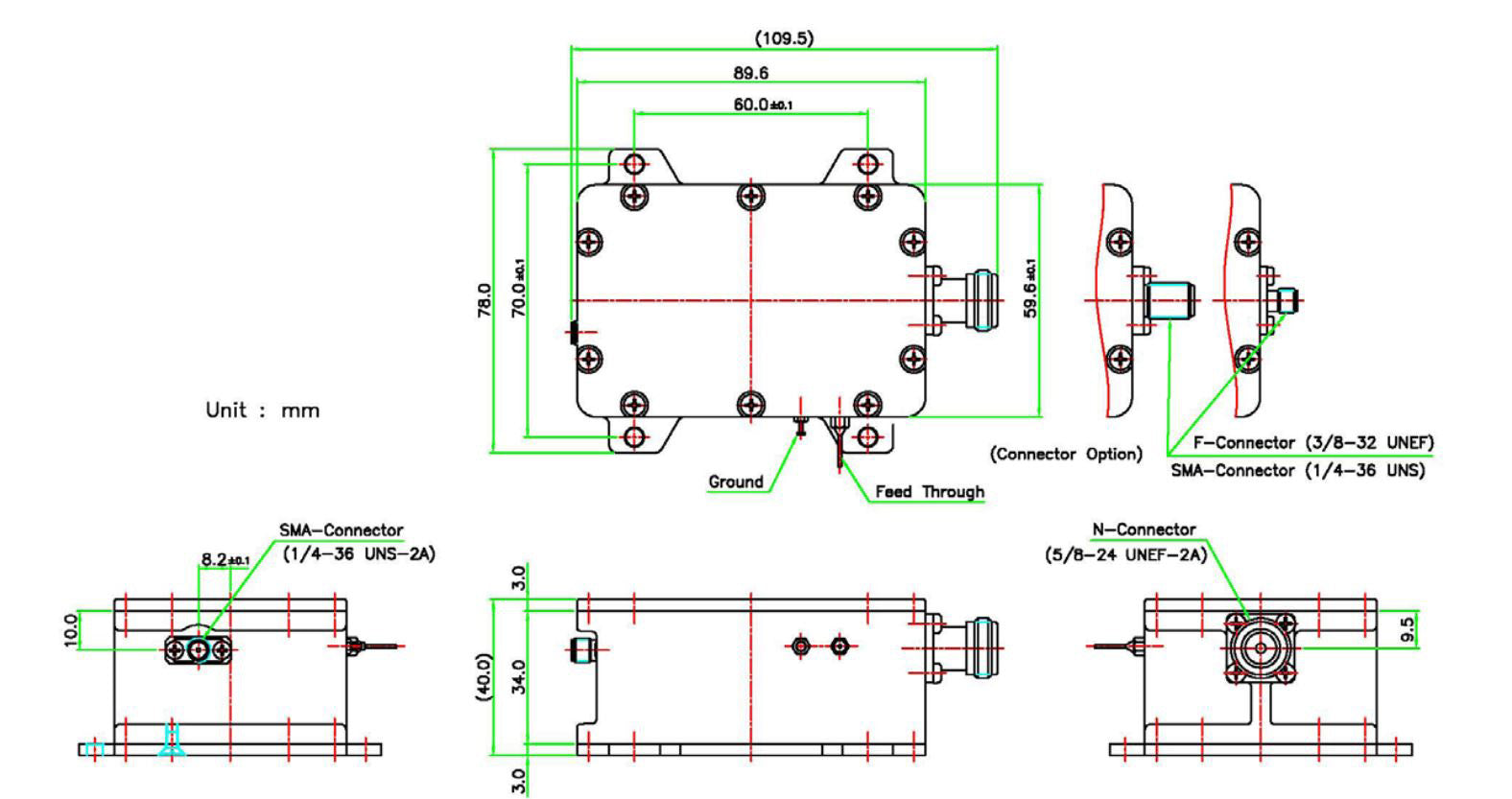

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 90 x 78 x 44 mm
product weight 0.4 kg
