Name: ULC-0-75-6
Brand: Norsat International Inc.
SKU: ULC-0-75-6
Price: 3100.00 USD
Availability: InStock

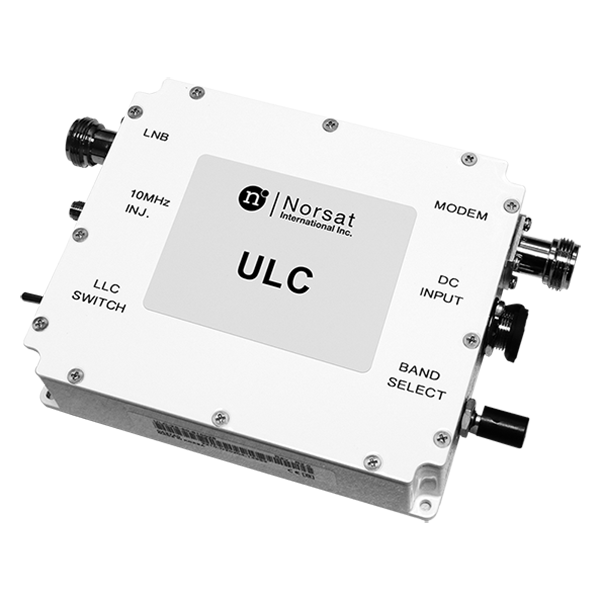

ULC-0-75-6

6-Band ULC Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41526430007479,"title":"0: No Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"0: No Reference","option2":"F: 75 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-0-75-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 0: No Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"0: No Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["0: No Reference","F: 75 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430040247,"title":"1: 10 MHz Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"1: 10 MHz Reference","option2":"F: 75 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-1-75-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 1: 10 MHz Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"1: 10 MHz Reference \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["1: 10 MHz Reference","F: 75 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":420000,"weight":850,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430073015,"title":"2S: 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"2S: 10 MHz Injection Port; SMA Connector","option2":"F: 75 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-2S-75-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 2S: 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"2S: 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["2S: 10 MHz Injection Port; SMA Connector","F: 75 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430105783,"title":"0: No Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"0: No Reference","option2":"N: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-0-50-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 0: No Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"0: No Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["0: No Reference","N: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":290000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430138551,"title":"1: 10 MHz Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"1: 10 MHz Reference","option2":"N: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-1-50-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 1: 10 MHz Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"1: 10 MHz Reference \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["1: 10 MHz Reference","N: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":420000,"weight":850,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430171319,"title":"2S: 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"2S: 10 MHz Injection Port; SMA Connector","option2":"N: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 2S: 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"2S: 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["2S: 10 MHz Injection Port; SMA Connector","N: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430204087,"title":"0: No Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"0: No Reference","option2":"SMA: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-0-50S-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 0: No Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"0: No Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["0: No Reference","SMA: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430236855,"title":"1: 10 MHz Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"1: 10 MHz Reference","option2":"SMA: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-1-50S-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 1: 10 MHz Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"1: 10 MHz Reference \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["1: 10 MHz Reference","SMA: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":420000,"weight":850,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430269623,"title":"2S: 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","option1":"2S: 10 MHz Injection Port; SMA Connector","option2":"SMA: 50 Ohm","option3":"Switch Control \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50S-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 2S: 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","public_title":"2S: 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ Switch Control \u0026 Line Length Compensation with Switch","options":["2S: 10 MHz Injection Port; SMA Connector","SMA: 50 Ohm","Switch Control \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430302391,"title":"0: No Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"0: No Reference","option2":"F: 75 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-0-75-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 0: No Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"0: No Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["0: No Reference","F: 75 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430335159,"title":"1: 10 MHz Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"1: 10 MHz Reference","option2":"F: 75 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-1-75-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 1: 10 MHz Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"1: 10 MHz Reference \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["1: 10 MHz Reference","F: 75 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":420000,"weight":850,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430367927,"title":"2S: 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"2S: 10 MHz Injection Port; SMA Connector","option2":"F: 75 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-2S-75-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 2S: 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"2S: 10 MHz Injection Port; SMA Connector \/ F: 75 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["2S: 10 MHz Injection Port; SMA Connector","F: 75 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430400695,"title":"0: No Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"0: No Reference","option2":"N: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-0-50-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 0: No Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"0: No Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["0: No Reference","N: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430433463,"title":"1: 10 MHz Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"1: 10 MHz Reference","option2":"N: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-1-50-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 1: 10 MHz Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"1: 10 MHz Reference \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["1: 10 MHz Reference","N: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":420000,"weight":850,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430466231,"title":"2S: 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"2S: 10 MHz Injection Port; SMA Connector","option2":"N: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 2S: 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"2S: 10 MHz Injection Port; SMA Connector \/ N: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["2S: 10 MHz Injection Port; SMA Connector","N: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430498999,"title":"0: No Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"0: No Reference","option2":"SMA: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-0-50S-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 0: No Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"0: No Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["0: No Reference","SMA: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430531767,"title":"1: 10 MHz Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"1: 10 MHz Reference","option2":"SMA: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-1-50S-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 1: 10 MHz Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"1: 10 MHz Reference \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["1: 10 MHz Reference","SMA: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":420000,"weight":850,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41526430564535,"title":"2S: 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","option1":"2S: 10 MHz Injection Port; SMA Connector","option2":"SMA: 50 Ohm","option3":"CL: Control Interface Cable \u0026 Line Length Compensation with Switch","sku":"ULC-2S-50S-CL-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ULC-0-75-6 - 2S: 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","public_title":"2S: 10 MHz Injection Port; SMA Connector \/ SMA: 50 Ohm \/ CL: Control Interface Cable \u0026 Line Length Compensation with Switch","options":["2S: 10 MHz Injection Port; SMA Connector","SMA: 50 Ohm","CL: Control Interface Cable \u0026 Line Length Compensation with Switch"],"price":310000,"weight":670,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

El controlador LNB universal de Norsat se utiliza como unidad de control LNB para LNB multibanda.

KEY SPECIFICATIONS
control signal	Switch Control & Line Length Compensation with Switch
reference signal	No reference
tone amplitude	0.55 ~ 0.9 vpp
tone frequency	20 ~ 24 kHz
Product Revision	B

ELECTRICAL SPECIFICATIONS
current consumption	500 mA max.
output current	500 mA max.
power requirements	+23 to +25 V DC

INTERFACE SPECIFICATIONS
connector	F-Connector
control interface	Switch Control & Line Length Compensation with Switch
LLC line length compensation	+1 VDC (Switch)
RF input connector	75 Ohm F Connector

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 65
temperature operational	-40 to +60°C

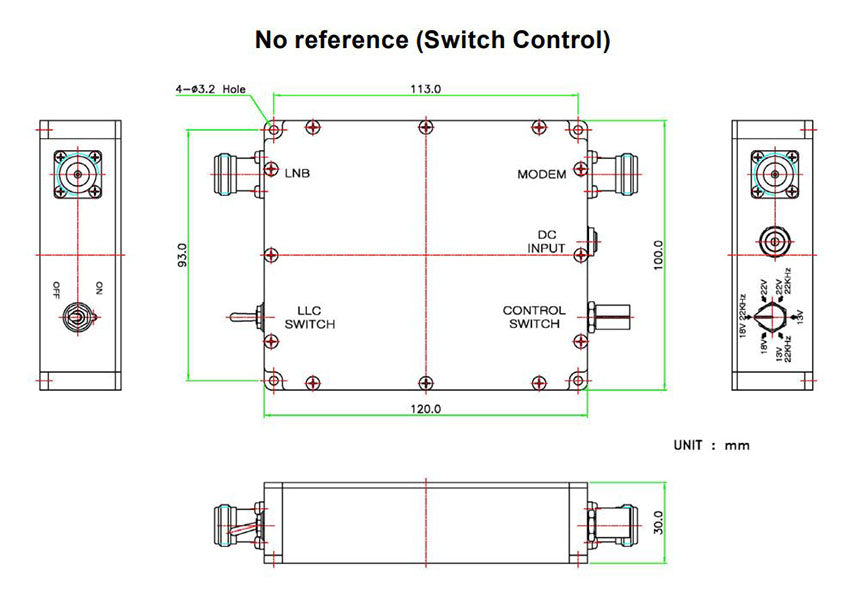

PHYSICAL SPECIFICATIONS
product height	30 mm
product length	100 mm
product weight	0.67 kg
product width	120 mm

ELECTRICAL SPECIFICATIONS
current consumption	1100 mA max.
output current	500 mA max.
power requirements	+23 to +25 V DC

INTERFACE SPECIFICATIONS
connector	N-Connector
control interface	Switch Control & Line Length Compensation with Switch
LLC line length compensation	+1 VDC (Switch)
RF input connector	50 Ohm N Connector

INTERFACE SPECIFICATIONS
connector	SMA Connector
control interface	Switch Control & Line Length Compensation with Switch
LLC line length compensation	+1 VDC (Switch)
RF input connector	50 Ohm SMA Connector

KEY SPECIFICATIONS
control signal	Control Interface Cable & Line Length Compensation with Switch
reference signal	No reference
tone amplitude	0.55 ~ 0.9 vpp
tone frequency	20 ~ 24 kHz
Product Revision	B

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
