KEY SPECIFICATIONS
acquisition and tracking
Automatic
band
Ku-Band
receive frequency
Ku Band: 10.70 - 12.75 GHz
reflector diameter
1.2 m
transmit frequency
Ku-Band: 13.75 - 14.50 GHz
ANTENNA SPECIFICATIONS
azimuth range
+/- 200°
cross polarization isolation
≥35 dB
elevation range
10° - 90°
feed configuration
Centre-feed
movement overrides
Manual (Azimuth/Elevation)
polarization
Linear
standard buc options
2W,3W,4W,6W,8W,10W,16W,20W,40W
standard lnb options
1000H or HS1000 Series, with Type F (75 Ohm) Connector
RF SPECIFICATIONS
movement platform
Motorized Elevation over Azimuth
rx gain
41.5dBi+ 20log(f/11.85)dBi
tx gain
42.8+ 20log(f/14.125)dBi
ELECTRICAL SPECIFICATIONS

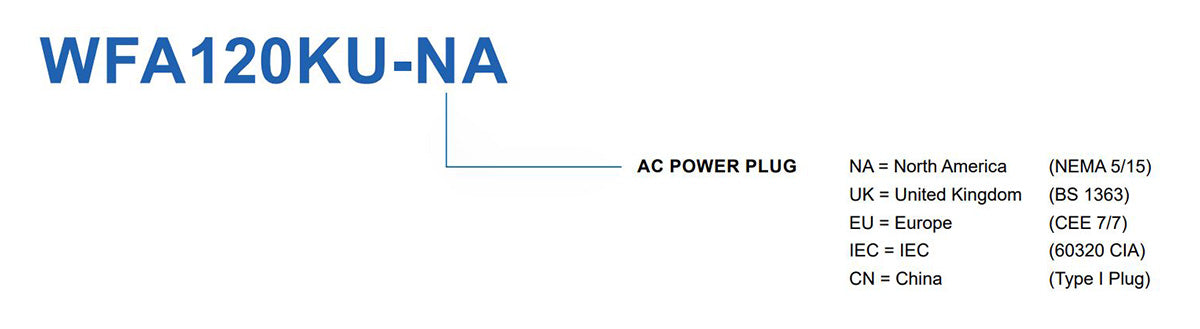

power connector
North America (NEMA 5/15)
power requirements
AC110-230V 50/60Hz, rated 200W, 550W max
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-30°C to +60°C (Antenna)
weatherproofing
IP 65 (antenna only)
windspeed operational
36 km/h
windspeed survival
61 km/h
PHYSICAL SPECIFICATIONS
number of cases
2 standard
KEY SPECIFICATIONS
acquisition and tracking
Automatic
band
Ku-Band
receive frequency
Ku Band: 10.70 - 12.75 GHz
reflector diameter
1.2 m
transmit frequency
Ku-Band: 13.75 - 14.50 GHz
ANTENNA SPECIFICATIONS
azimuth range
+/- 200°
cross polarization isolation
≥35 dB
elevation range
10° - 90°
feed configuration
Centre-feed
movement overrides
Manual (Azimuth/Elevation)
polarization
Linear
standard buc options
2W,3W,4W,6W,8W,10W,16W,20W,40W
standard lnb options
1000H or HS1000 Series, with Type F (75 Ohm) Connector
RF SPECIFICATIONS
movement platform
Motorized Elevation over Azimuth
rx gain
41.5dBi+ 20log(f/11.85)dBi
tx gain
42.8+ 20log(f/14.125)dBi
ELECTRICAL SPECIFICATIONS
power connector
United Kingdom (BS 1363)
power requirements
AC110-230V 50/60Hz, rated 200W, 550W max
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-30°C to +60°C (Antenna)
weatherproofing
IP 65 (antenna only)
windspeed operational
36 km/h
windspeed survival
61 km/h
PHYSICAL SPECIFICATIONS
number of cases
2 standard
KEY SPECIFICATIONS
acquisition and tracking
Automatic
band
Ku-Band
receive frequency
Ku Band: 10.70 - 12.75 GHz
reflector diameter
1.2 m
transmit frequency
Ku-Band: 13.75 - 14.50 GHz
ANTENNA SPECIFICATIONS
azimuth range
+/- 200°
cross polarization isolation
≥35 dB
elevation range
10° - 90°
feed configuration
Centre-feed
movement overrides
Manual (Azimuth/Elevation)
polarization
Linear
standard buc options
2W,3W,4W,6W,8W,10W,16W,20W,40W
standard lnb options
1000H or HS1000 Series, with Type F (75 Ohm) Connector
RF SPECIFICATIONS
movement platform
Motorized Elevation over Azimuth
rx gain
41.5dBi+ 20log(f/11.85)dBi
tx gain
42.8+ 20log(f/14.125)dBi
ELECTRICAL SPECIFICATIONS
power connector
Europe (CEE 7/7)
power requirements
AC110-230V 50/60Hz, rated 200W, 550W max
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-30°C to +60°C (Antenna)
weatherproofing
IP 65 (antenna only)
windspeed operational
36 km/h
windspeed survival
61 km/h
PHYSICAL SPECIFICATIONS
number of cases
2 standard
KEY SPECIFICATIONS
acquisition and tracking
Automatic
band
Ku-Band
receive frequency
Ku Band: 10.70 - 12.75 GHz
reflector diameter
1.2 m
transmit frequency
Ku-Band: 13.75 - 14.50 GHz
ANTENNA SPECIFICATIONS
azimuth range
+/- 200°
cross polarization isolation
≥35 dB
elevation range
10° - 90°
feed configuration
Centre-feed
movement overrides
Manual (Azimuth/Elevation)
polarization
Linear
standard buc options
2W,3W,4W,6W,8W,10W,16W,20W,40W
standard lnb options
1000H or HS1000 Series, with Type F (75 Ohm) Connector
RF SPECIFICATIONS
movement platform
Motorized Elevation over Azimuth
rx gain
41.5dBi+ 20log(f/11.85)dBi
tx gain
42.8+ 20log(f/14.125)dBi
ELECTRICAL SPECIFICATIONS
power connector
IEC (60320 CIA)
power requirements
AC110-230V 50/60Hz, rated 200W, 550W max
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-30°C to +60°C (Antenna)
weatherproofing
IP 65 (antenna only)
windspeed operational
36 km/h
windspeed survival
61 km/h
PHYSICAL SPECIFICATIONS
number of cases
2 standard
KEY SPECIFICATIONS
acquisition and tracking
Automatic
band
Ku-Band
receive frequency
Ku Band: 10.70 - 12.75 GHz
reflector diameter
1.2 m
transmit frequency
Ku-Band: 13.75 - 14.50 GHz
ANTENNA SPECIFICATIONS
azimuth range
+/- 200°
cross polarization isolation
≥35 dB
elevation range
10° - 90°
feed configuration
Centre-feed
movement overrides
Manual (Azimuth/Elevation)
polarization
Linear
standard buc options
2W,3W,4W,6W,8W,10W,16W,20W,40W
standard lnb options
1000H or HS1000 Series, with Type F (75 Ohm) Connector
RF SPECIFICATIONS
movement platform
Motorized Elevation over Azimuth
rx gain
41.5dBi+ 20log(f/11.85)dBi
tx gain
42.8+ 20log(f/14.125)dBi
ELECTRICAL SPECIFICATIONS
power connector
China (Type I Plug)
power requirements
AC110-230V 50/60Hz, rated 200W, 550W max
ENVIRONMENTAL SPECIFICATIONS
humidity
0 - 95%
temperature operational
-30°C to +60°C (Antenna)
weatherproofing
IP 65 (antenna only)
windspeed operational
36 km/h
windspeed survival
61 km/h
PHYSICAL SPECIFICATIONS
number of cases
2 standard
INFORMATION
HS Code
8517700000
Country of Origin
CN
ECCN Number
EAR99
Shipping Package Dimensions
N/A
Shipping Package Weight
N/A
