SLPKA001

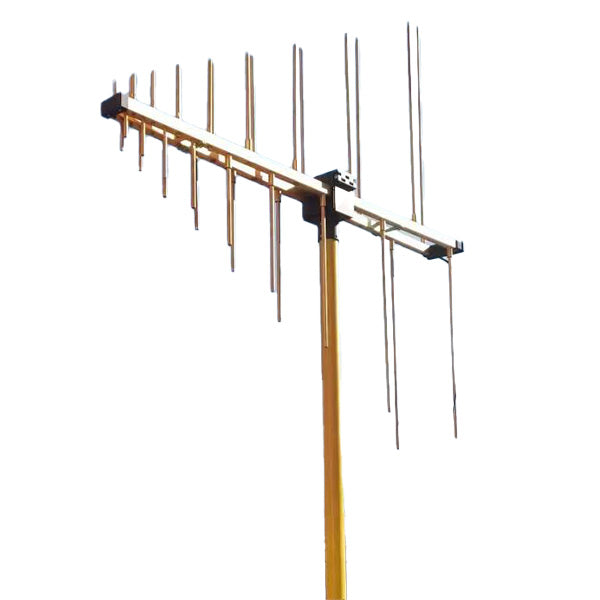

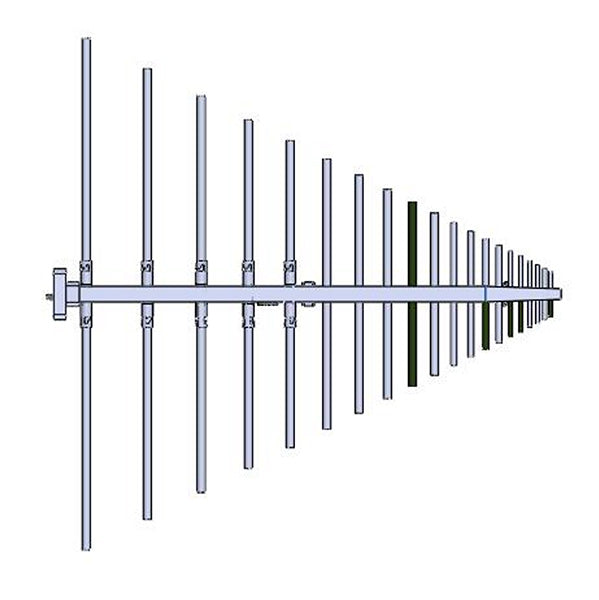

0.03 - 3.0 GHz Logarithmic Periodic Antenna
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna category | Manual Flyaway |
| band | Ka-Band |
| number of onboard Los | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| polarization | Linear |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | ≥85dB |
| port isolation Tx-Rx | ≥40dB |
| power capacity | ?1000 W |
| Rx frequency | 30 - 3000 MHz |
| rx gain | 6dBi |
| Rx interface | N-50K |
| Rx VSWR | ≤ 2.5 : 1 |
| Tx frequency | 30 - 3000 MHz |
| Tx interface | N-50K |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95%（20°C） |
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | 13m/s |
| windspeed survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 1000 mm |
| product length | 1500 mm |
| product weight | 5.5 kg |
| product width | 1500 mm |
