WFM080KUP

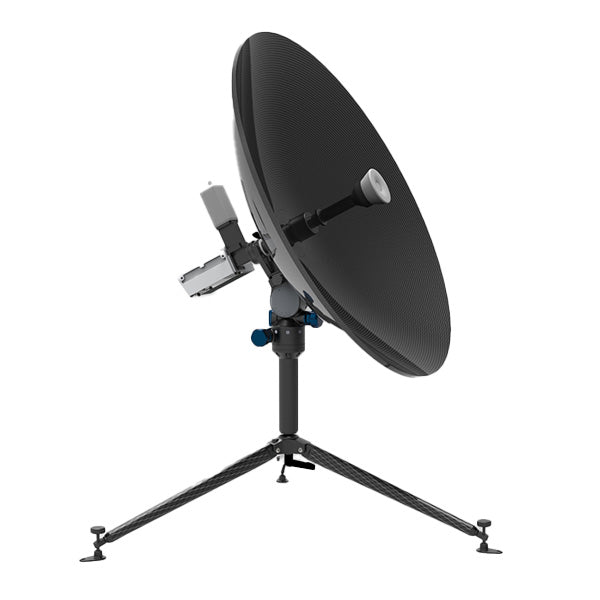

WAYFARER 0.8m Ku-Band Manual Flyaway Antenna - Ring Focus Prime Feed
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 0.8m |
| antenna category | Manual Flyaway |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Ring Focus Prime Feed |
| azimuth angle | ± 180° |
| cross polarization isolation | ≥30 dB |
| elevation angle | 0° - 90° |
| polarization | Linear |
| polarization range | ±90° |
| sidelobe | ≤ -14 dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | ≥ 85 dB |
| port isolation Tx-Rx | ≥ 40 dB |
| power capacity | ?500 W |
| Rx frequency | 12.25 - 12.75 GHz |
| rx gain | ≥37.5+20lg(f/12.50)dBi |
| Rx interface | WR75 |
| Rx VSWR | ≤ 1.35 : 1 |
| Tx frequency | 13.75 - 14.50 GHz |
| tx gain | ≥38.7+20lg(f/14.25)dBi |
| Tx interface | WR75 |
| Tx VSWR | ≤ 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | ≤95%（20°C） |
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | ≤13 m/s |
| windspeed survival | ≤20 m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| number of cases | 1 |
| packed by | wood crate and aluminium shipping case |
| product height | 1270 mm |
| product length | 1100 mm |
| product weight | 20 kg |
| product width | 1100 mm |
