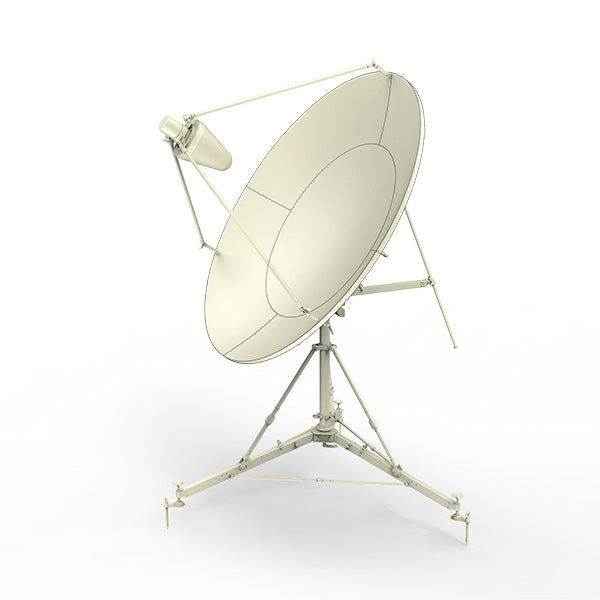

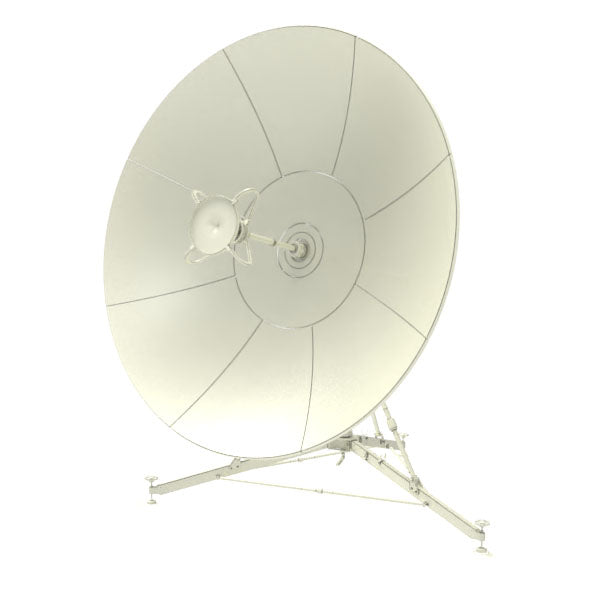

WAYFARER 1.8m Ku-Band Manual Flyaway Antenna - Ring Focus
WAYFARER 1.8m Ku-Band Manual Flyaway Antenna - Ring Focus
WAYFARER 1.8m Ku-Band Manual Flyaway Antenna - Ring Focus

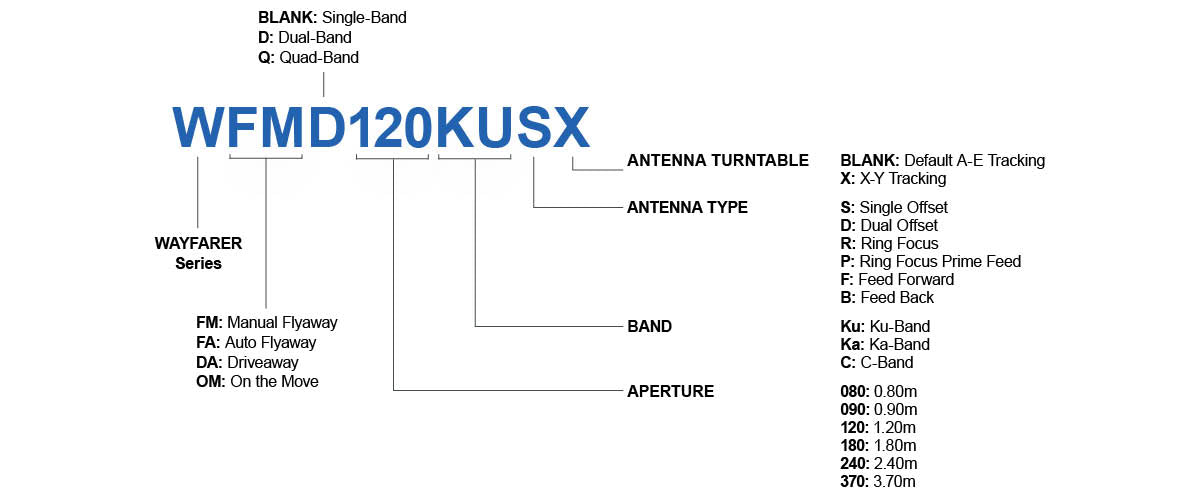

WFM180KUR

WAYFARER 1.8m Ku-Band Manual Flyaway Antenna - Ring Focus

Manual Flyaway Antenna

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 1.8m
antenna category Manual Flyaway
band Ku-Band
number of onboard LOs Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Ring Focus
azimuth angle ±180°
cross polarization isolation ≥30 dB
elevation angle 0° - 90°
polarization Linear
polarization range ±90°
sidelobe ≤ -14 dB
RF SPECIFICATIONS
port isolation Rx-Tx ≥ 85 dB
port isolation Tx-Rx ≥ 40dB
power capacity 500 W
Rx frequency 10.95 - 12.75 GHz
rx gain ≥45 +20lg(f/12.5)dBi
Rx interface WR75
Rx VSWR ≤ 1.35 : 1
Tx frequency 13.75 - 14.50 GHz
tx gain ≥46+20lg(f/14.25)dBi
Tx interface WR75
Tx VSWR ≤ 1.35 : 1
ELECTRICAL SPECIFICATIONS
power supply 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC)
ENVIRONMENTAL SPECIFICATIONS
humidity 95%(20°C)
IP rating IP65
temperature operational -40°C to +60°C
temperature storage -55℃ to +70℃
windspeed operational 13m/s
windspeed survival 20m/s
PHYSICAL SPECIFICATIONS
color White
number of cases 2
packed by wood crate and aluminium shipping case
product height 2350 mm
product length 2000 mm
product weight 45 kg
product width 2000 mm
