ACC-100492
320W Indoor Power Supply
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| output power rated | 321.6 W |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| efficiency | 87% typ. |
| input current | 5A / 115 VAC , 2.5A / 230 VAC |
| input voltage | 88 - 264 VAC, 124 - 370 VDC (withstand 300VAC surge for 5 sec. w/out damage) |
| output dc voltage | 48V |
| output interface current | 0 - 6.7A |
| output rated current | 6.7A |
| output ripple and noise | 240 mVp-p max. |
| output setup reset time | 800ms, 50ms/230VAC 2500ms, 50ms/115VAC full load |
| output voltage adjustment range | 41 - 56V |
| over load protection | 105-135% rated output power |
| power factor | PF>0.95/230VAC typ. ; PF>0.98/115VAC typ. at full load |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 20% - 95% RH non-condensing |
| temperature operational | -20°C to +70°C |
| temperature storage | -40°C to +85°C |

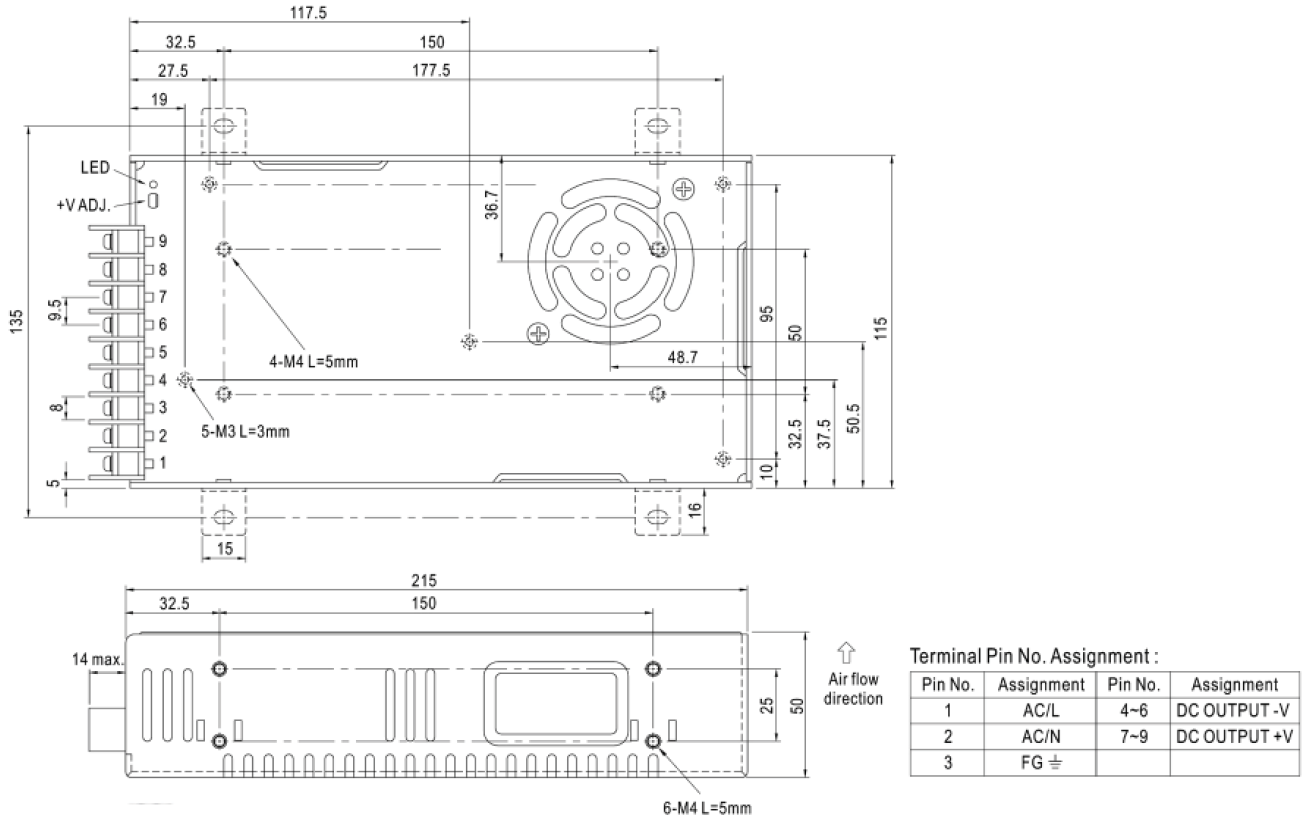

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 50 mm |
| product length | 215 mm |
| product weight | 1.1 kg max |
| product width | 115 mm |
