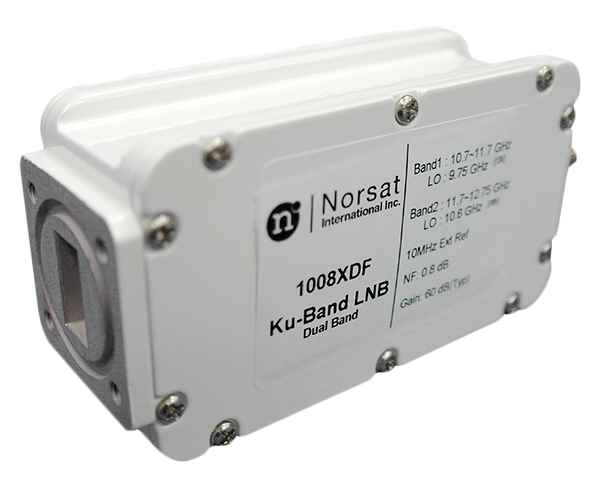

Name: 1000 Dual-Band Ku-Band Ext REF LNB
Brand: Norsat International Inc.
SKU: 1008XDFF
Price: 1034.00 USD
Availability: InStock

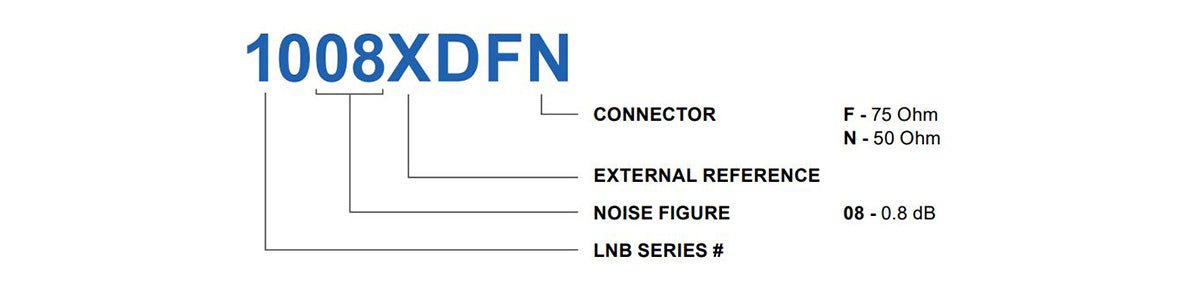

1008XDFF

1000 Dual-Band Ku-Band Ext REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":41064283111607,"title":"F: 75 Ohm","option1":"F: 75 Ohm","option2":null,"option3":null,"sku":"1008XDFF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Dual-Band Ku-Band Ext REF LNB - F: 75 Ohm","public_title":"F: 75 Ohm","options":["F: 75 Ohm"],"price":103400,"weight":400,"compare_at_price":103400,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064283144375,"title":"N: 50 Ohm","option1":"N: 50 Ohm","option2":null,"option3":null,"sku":"1008XDFN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Dual-Band Ku-Band Ext REF LNB - N: 50 Ohm","public_title":"N: 50 Ohm","options":["N: 50 Ohm"],"price":103400,"weight":400,"compare_at_price":103400,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 1000XDF Series.

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	10.70 - 11.70 GHz
input frequency band 2	11.70 - 12.75 GHz
LO frequency 1	9.75 GHz
LO frequency 2	10.60 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	0.9 dB
noise figure typ	0.8 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	1100 - 2150 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p
input VSWR	2.3 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.3 : 1 max.
phase noise 1kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 100kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	350 mA max
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS

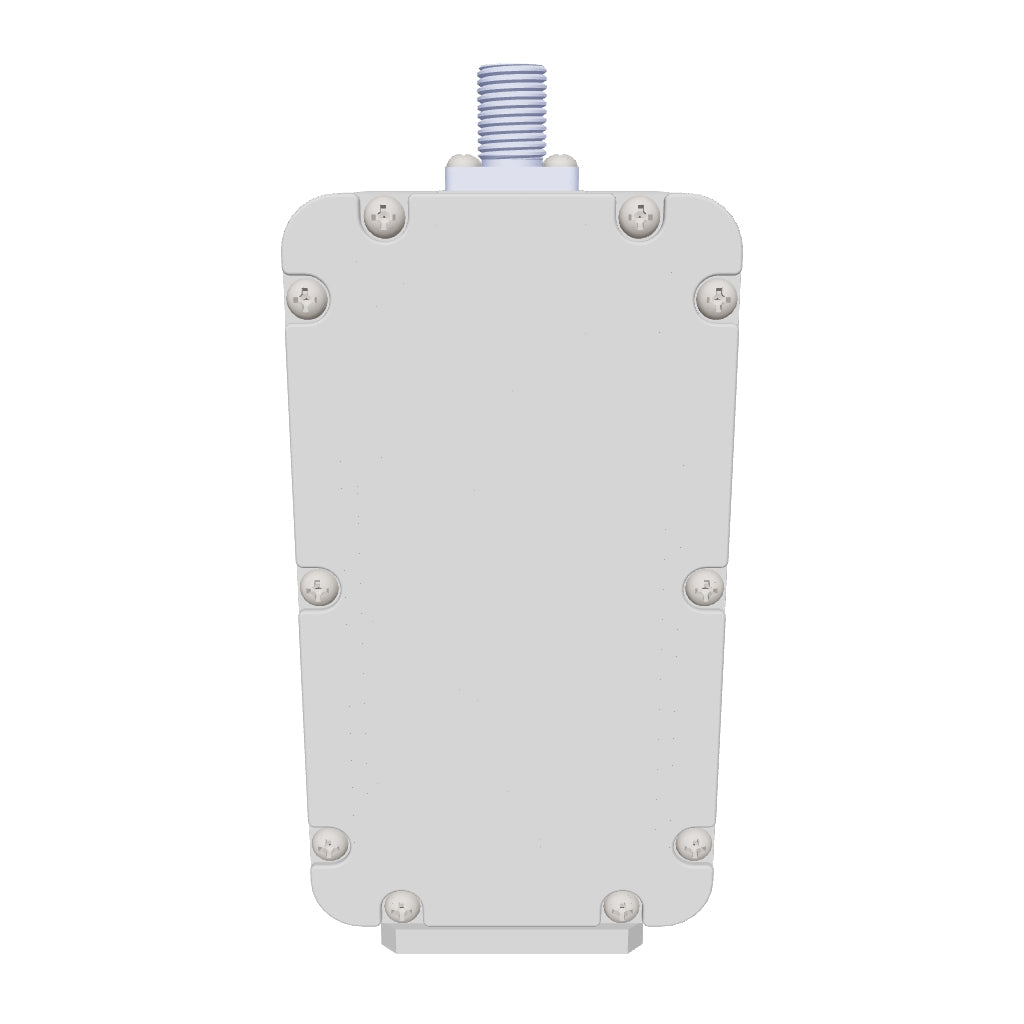

IF connector	Waterproof F-Connector

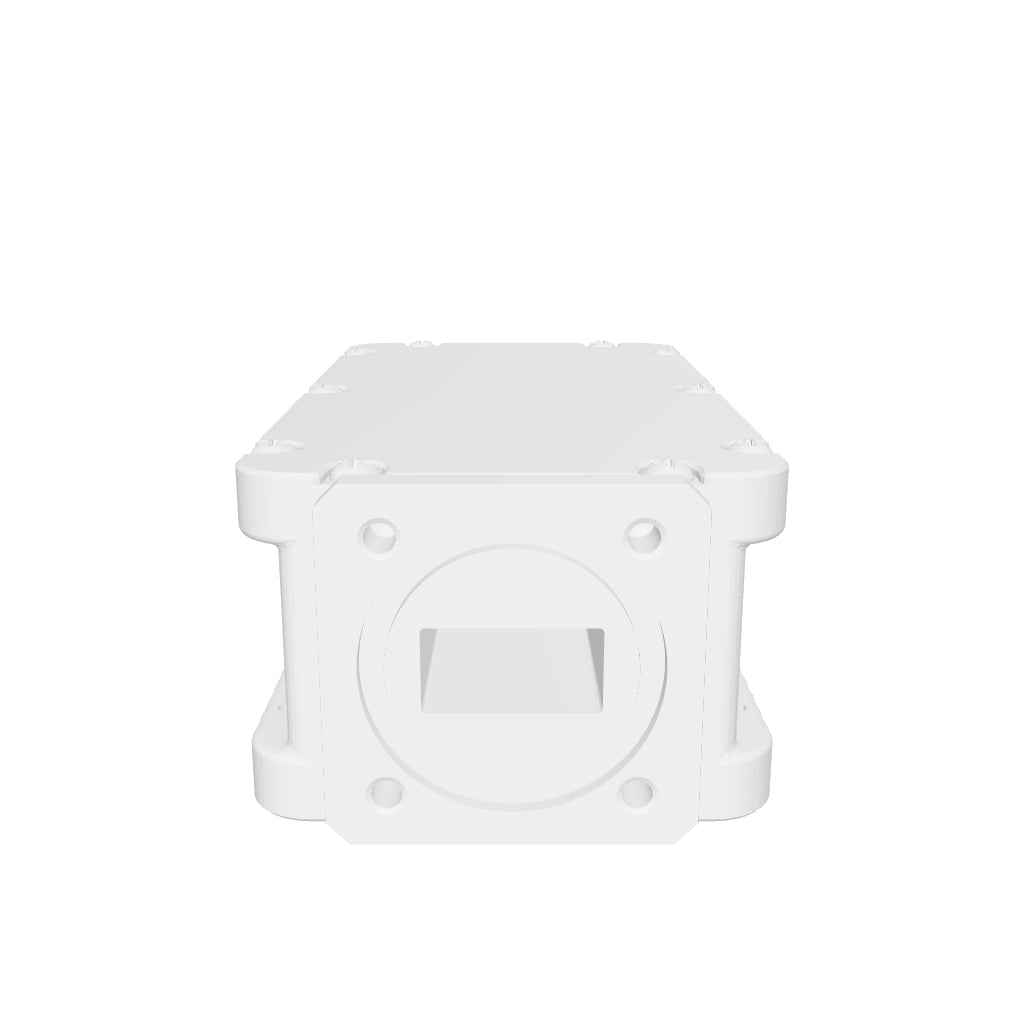

RF input connector	Waterproof WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS

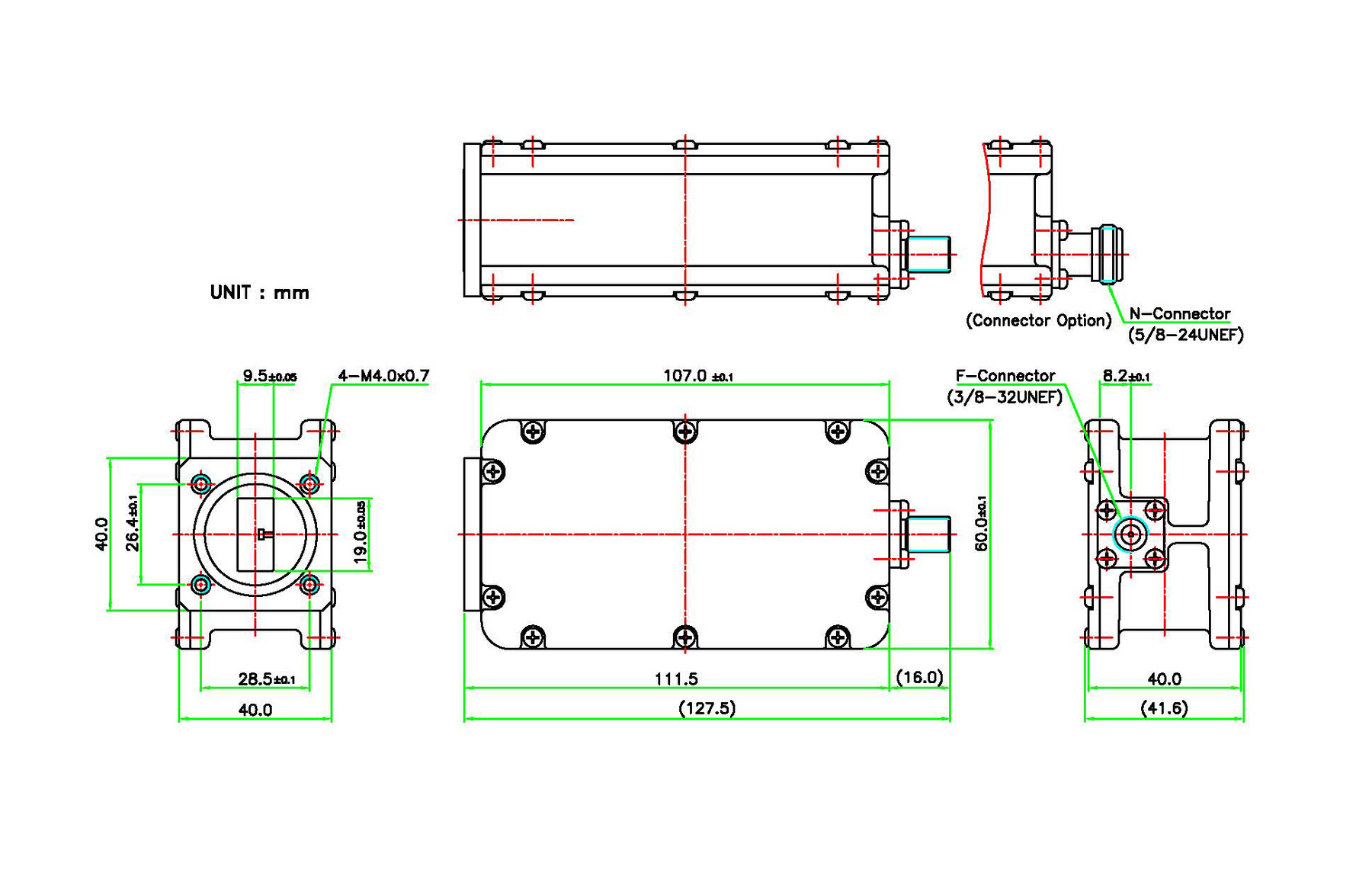

product height	42 mm
product length	128 mm
product weight	0.4 kg
product width	60 mm

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	10.70 - 11.70 GHz
input frequency band 2	11.70 - 12.75 GHz
LO frequency 1	9.75 GHz
LO frequency 2	10.60 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	0.9 dB
noise figure typ	0.8 dB
of onboard los	Dual-band
output frequency band 1	950 - 1950 MHz
output frequency band 2	1100 - 2150 MHz
Product Revision	C

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p
input VSWR	2.3 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 1kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 100kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
current consumption	350 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	40 mm
product length	128 mm
product weight	0.4 kg
product width	60 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	145 x 95 x 65 mm
Unit Package Weight	-
Total Aluminium Content	0.284 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 0.71
