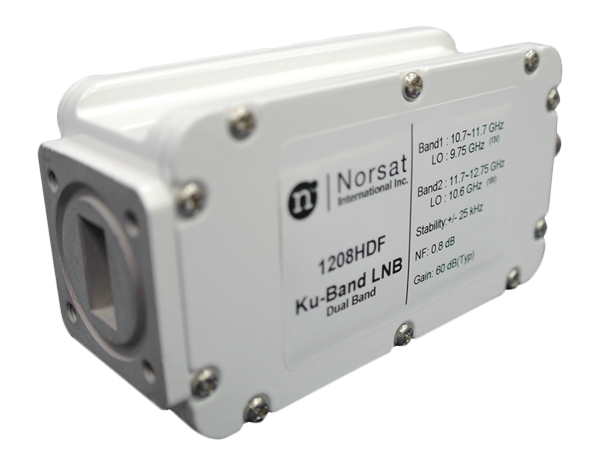

1000 Ku-Band Dual Band PLL LNB
1000 Ku-Band Dual Band PLL LNB
1000 Ku-Band Dual Band PLL LNB

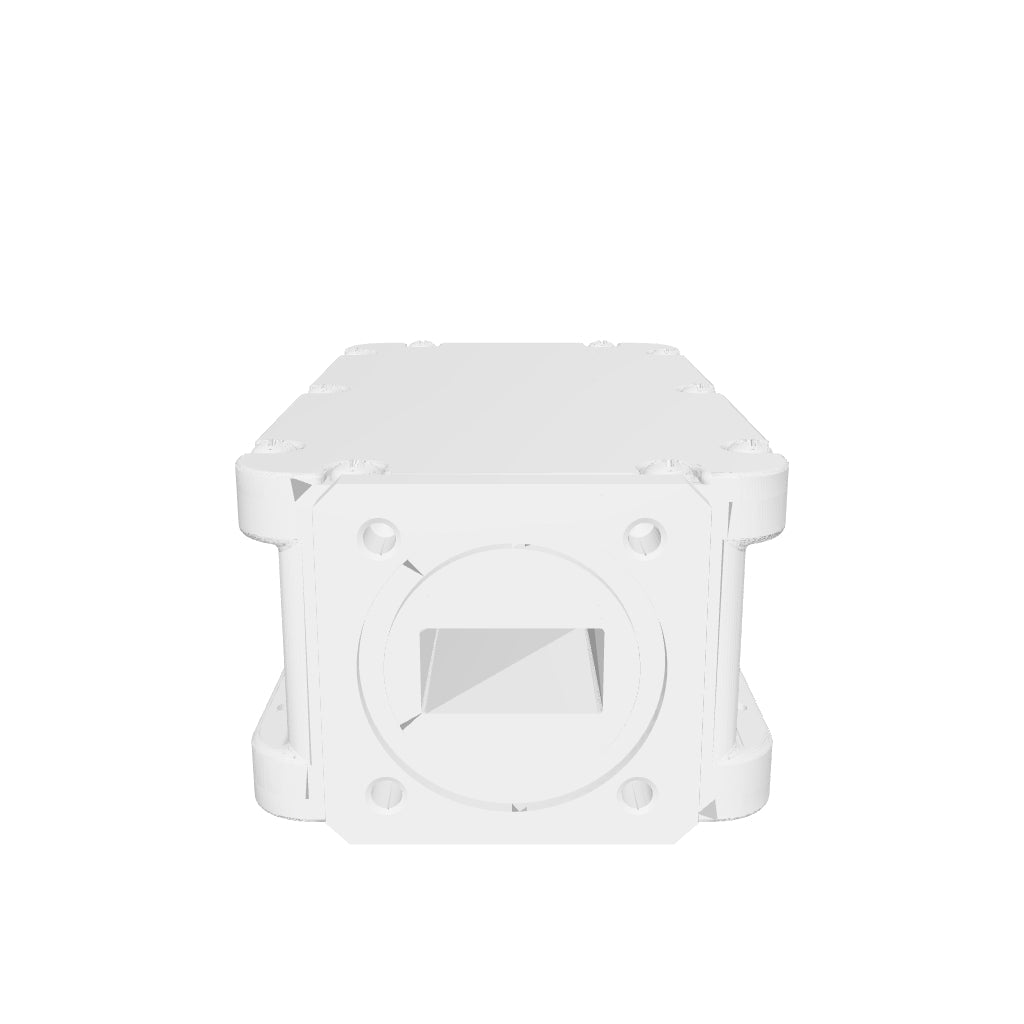

1108HDFF

1000 Ku-Band Dual Band PLL LNB

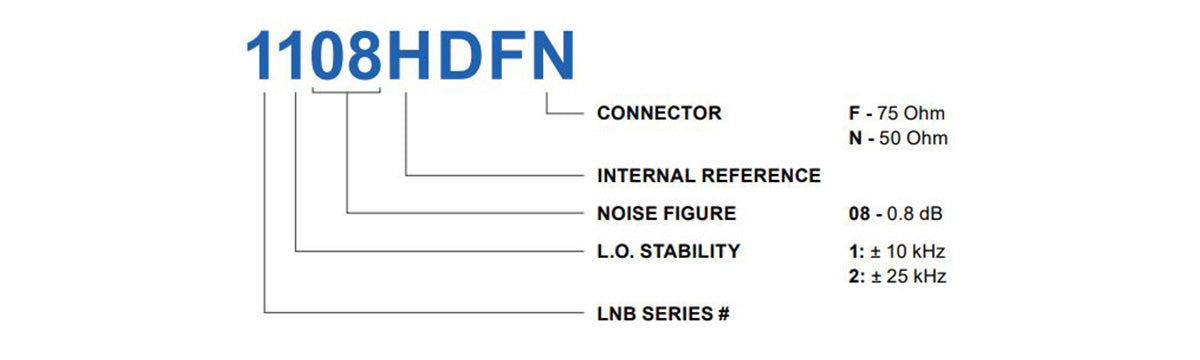

1000HDF Series

Regular price
$858.00
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: 6 - 8 Weeks
Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 11.70 GHz
input frequency band 2 11.70 - 12.75 GHz
LO frequency 1 9.75 GHz
LO frequency 2 10.60 GHz
LO stability ±10 kHz
LO type PLL
noise figure max 0.9 dB
noise figure typ 0.8 dB
number of onboard LOs Dual-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 1100 - 2150 MHz
Product Revision C
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 18V / No Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 5 dB p-p
input VSWR 2.3 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.0 : 1 max.
phase noise 100kHz offset max -95 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 1kHz offset max -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS

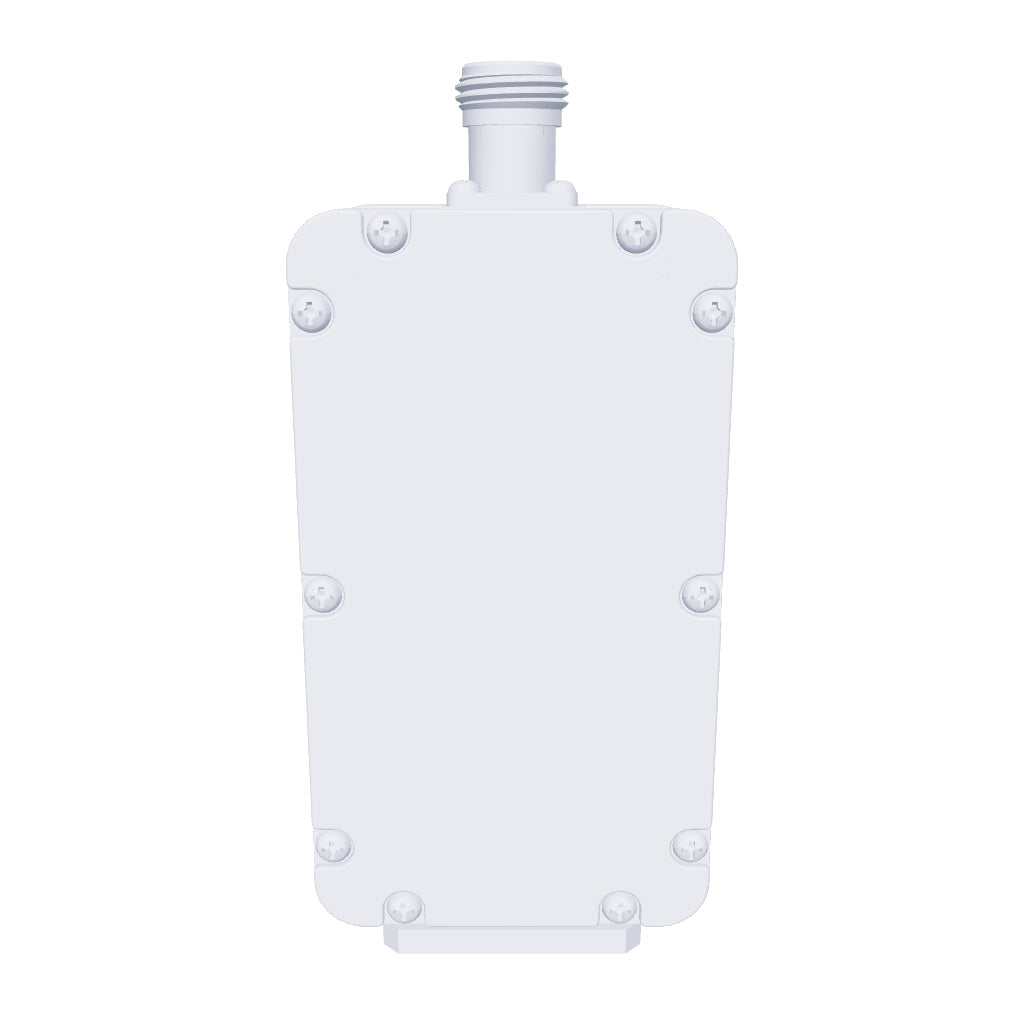

IF connector F-Connector

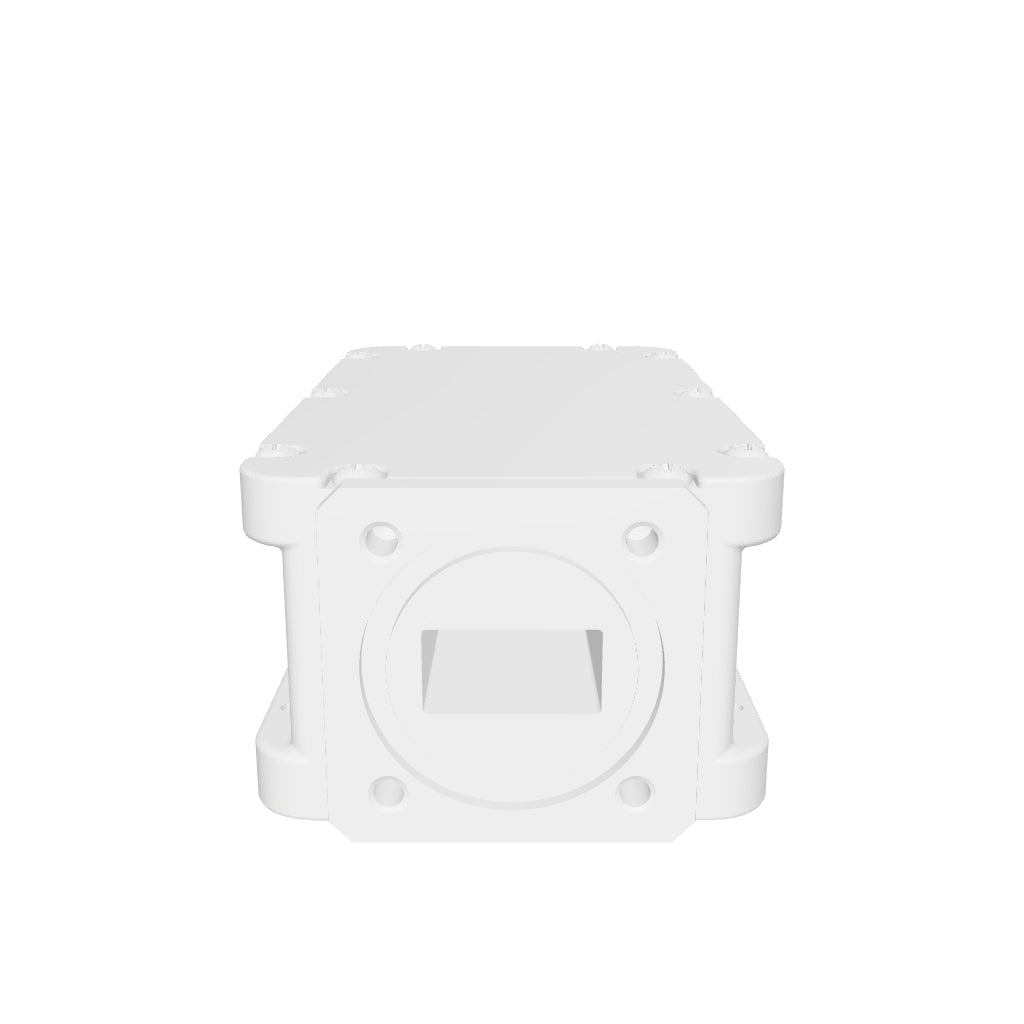

RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C
PHYSICAL SPECIFICATIONS

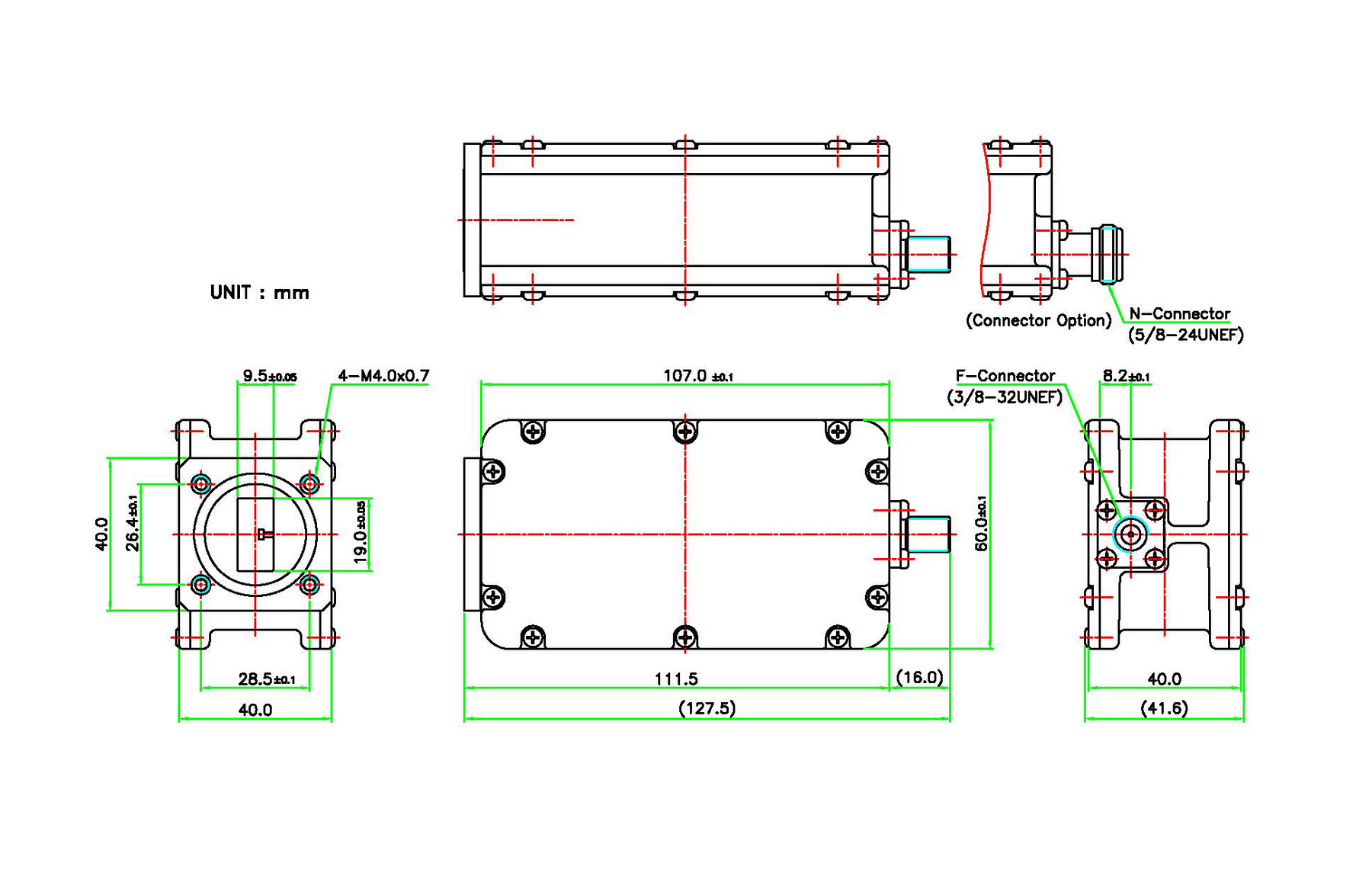

product dimensions (LxWxH) 128 x 60 x 42 mm
product weight 0.4 kg
