Name: 1000 Ku-Band Simultaneous Band PLL LNB
Brand: Norsat International Inc.
SKU: 1108DHF-1
Price: 2016.00 USD
Availability: InStock

1108DHF-1

1000 Ku-Band Simultaneous Band PLL LNB

1000DH Series

Please sign in to view the price and availability.

(Scroll to see specifications and documents)

[{"id":41064100855991,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"F: 75 Ohm","sku":"1108DHF-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","F: 75 Ohm"],"price":201600,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100888759,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"N: 50 Ohm","sku":"1108DHN-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","N: 50 Ohm"],"price":204800,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100921527,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"F: 75 Ohm","sku":"1208DHF-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","F: 75 Ohm"],"price":200000,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100954295,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"N: 50 Ohm","sku":"1208DHN-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","N: 50 Ohm"],"price":203200,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064100987063,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"F: 75 Ohm","sku":"1108DHF-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","F: 75 Ohm"],"price":201600,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064101019831,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"N: 50 Ohm","sku":"1108DHN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","N: 50 Ohm"],"price":204800,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064101052599,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"F: 75 Ohm","sku":"1208DHF-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","F: 75 Ohm"],"price":200000,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41064101085367,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"N: 50 Ohm","sku":"1208DHN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","N: 50 Ohm"],"price":203200,"weight":450,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	L:10.70 - 11.70 GHz
input frequency band 2	H: 11.70 - 12.75 GHz
LO frequency 1	L: 9.75 GHz
LO frequency 2	H: 10.75 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	.85 dB
noise figure typ	0.8 dB
number of onboard LOs	Simultaneous-Band
output frequency band 1	L: 950 - 1950 MHz
output frequency band 2	H: 950 - 2000 MHz
Product Revision	C

RF SPECIFICATIONS
conversion gain max	62 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness (over full band)	≤ 4 dB p-p
input VSWR	2.2 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 100kHz offset max	-95 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	450 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS

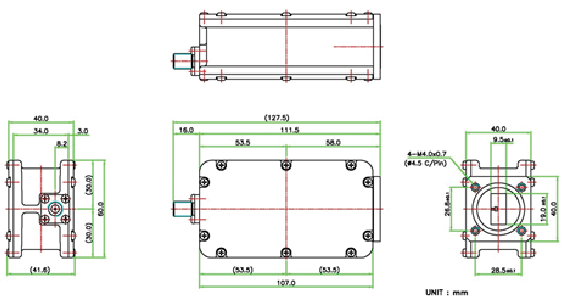

product dimensions (LxWxH)	155 x 42 x 40 mm
product weight	0.45 kg

Customer Reviews

5.0 Based on 1 Reviews

5 ★

100%

4 ★

3 ★

2 ★

1 ★

Customer Photos

1000 Ku-Band Simultaneous Band PLL LNB - Customer Photo From Richard Osborne

Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

12/03/2024

Richard O.

United Kingdom

long term project

We've been using the 1108HDFF on a specific customer project for over 3 years. It meets all their high expectations

1000 Ku-Band Simultaneous Band PLL LNB

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	145 x 95 x 65 mm
Unit Package Weight	-
COMPLIANCE
	Yes
	Yes
	Yes

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved
