1000 Ku-Band Simultaneous Band PLL LNB
1000 Ku-Band Simultaneous Band PLL LNB
1000 Ku-Band Simultaneous Band PLL LNB
1000 Ku-Band Simultaneous Band PLL LNB

1000-100097

1000 Ku-Band Simultaneous Band PLL LNB

1000 Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 L:10.70 - 11.70 GHz
input frequency band 2 H: 11.70 - 12.75 GHz
LO frequency 1 L: 9.75 GHz
LO frequency 2 H: 10.75 GHz
LO stability ± 10 kHz
LO type PLL
noise figure max 0.85 dB
noise figure typ 0.8 dB
number of onboard LOs Simultaneous-Band
output frequency band 1 L: 950 - 1950 MHz
output frequency band 2 H: 950 - 2000 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 50 dB
conversion gain min 40 dB
conversion gain typ 45 dB
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.0 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max. (each band)
power requirements +12 to +24VDC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C

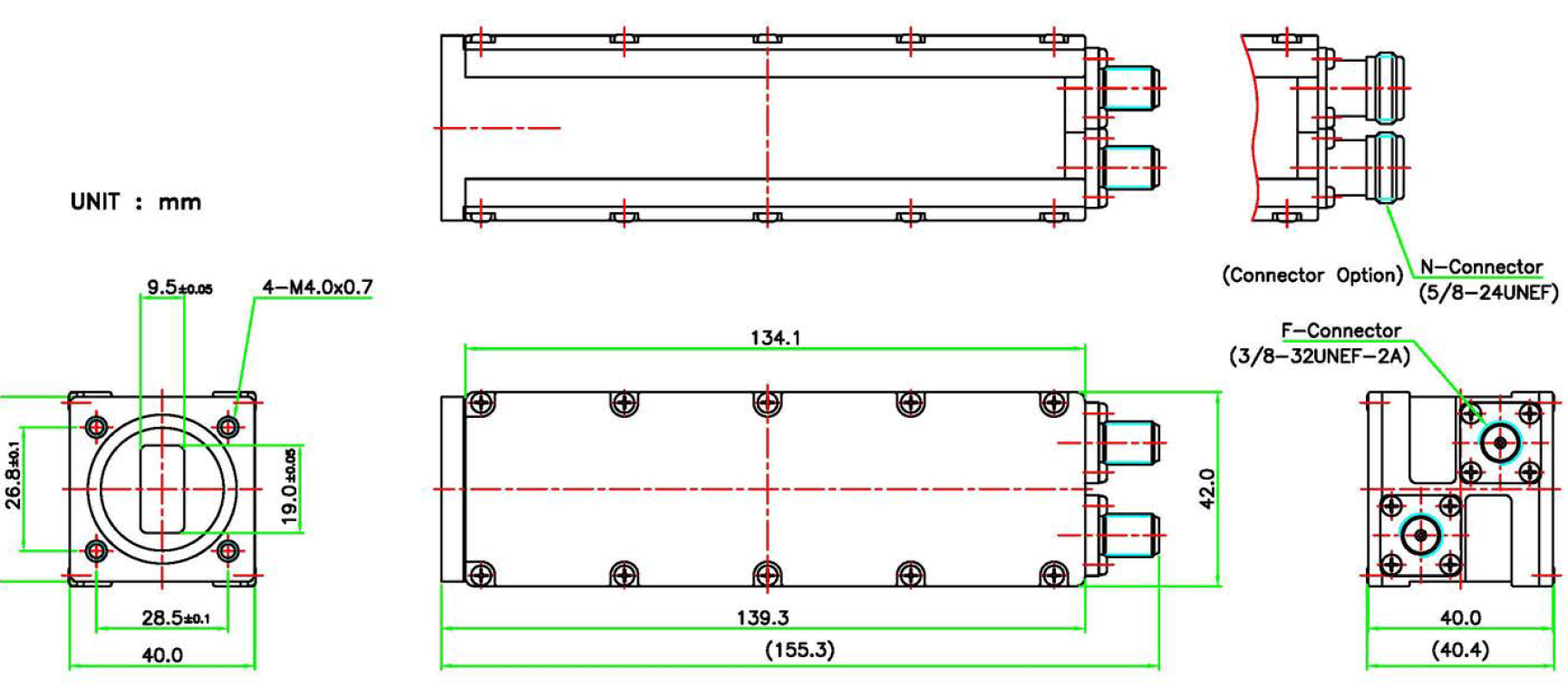

PHYSICAL SPECIFICATIONS
product height 40 mm
product length 134.1 mm
product weight 0.45 kg
product width 42 mm
