Name: 1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector)
Brand: Norsat International Inc.
SKU: 1108DHF-1A
Price: 2016.00 USD
Availability: InStock

1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector)

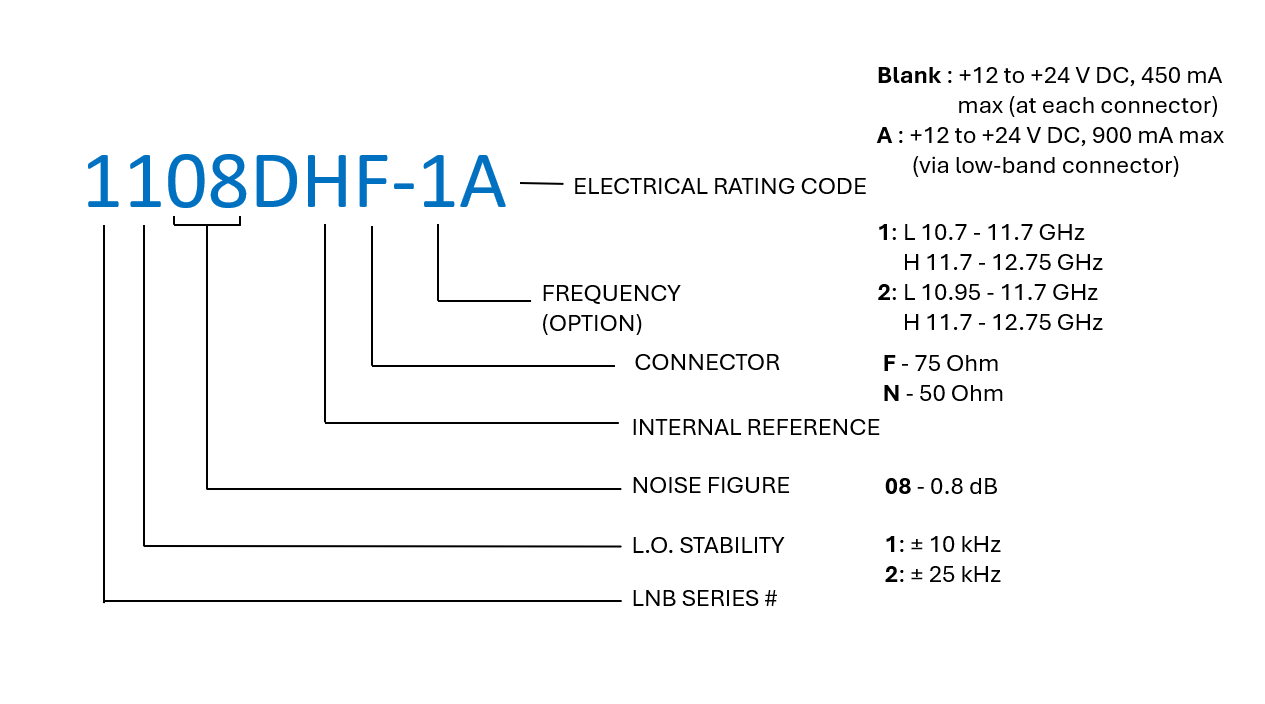

1108DHF-1A

1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector)

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":52725318943087,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"F: 75 Ohm","sku":"1108DHF-1A","requires_shipping":true,"taxable":true,"featured_image":{"id":60047044215151,"product_id":14904805294447,"position":2,"created_at":"2025-04-10T11:34:58-07:00","updated_at":"2025-04-10T12:00:30-07:00","alt":null,"width":700,"height":381,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630","variant_ids":[52725318943087,52725319008623,52725319074159,52725319139695]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","F: 75 Ohm"],"price":201600,"weight":450,"compare_at_price":201600,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51796057129327,"position":2,"preview_image":{"aspect_ratio":1.837,"height":381,"width":700,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52725318975855,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"N: 50 Ohm","sku":"1108DHN-1A","requires_shipping":true,"taxable":true,"featured_image":{"id":52902411534703,"product_id":14904805294447,"position":1,"created_at":"2024-10-02T18:48:32-07:00","updated_at":"2025-04-10T11:35:19-07:00","alt":null,"width":600,"height":323,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119","variant_ids":[52725318975855,52725319041391,52725319106927,52725319172463]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","N: 50 Ohm"],"price":204800,"weight":450,"compare_at_price":204800,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437834396015,"position":1,"preview_image":{"aspect_ratio":1.858,"height":323,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52725319008623,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"F: 75 Ohm","sku":"1208DHF-1A","requires_shipping":true,"taxable":true,"featured_image":{"id":60047044215151,"product_id":14904805294447,"position":2,"created_at":"2025-04-10T11:34:58-07:00","updated_at":"2025-04-10T12:00:30-07:00","alt":null,"width":700,"height":381,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630","variant_ids":[52725318943087,52725319008623,52725319074159,52725319139695]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","F: 75 Ohm"],"price":200000,"weight":450,"compare_at_price":200000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51796057129327,"position":2,"preview_image":{"aspect_ratio":1.837,"height":381,"width":700,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52725319041391,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"N: 50 Ohm","sku":"1208DHN-1A","requires_shipping":true,"taxable":true,"featured_image":{"id":52902411534703,"product_id":14904805294447,"position":1,"created_at":"2024-10-02T18:48:32-07:00","updated_at":"2025-04-10T11:35:19-07:00","alt":null,"width":600,"height":323,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119","variant_ids":[52725318975855,52725319041391,52725319106927,52725319172463]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","N: 50 Ohm"],"price":203200,"weight":450,"compare_at_price":203200,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437834396015,"position":1,"preview_image":{"aspect_ratio":1.858,"height":323,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52725319074159,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"F: 75 Ohm","sku":"1108DHF-2A","requires_shipping":true,"taxable":true,"featured_image":{"id":60047044215151,"product_id":14904805294447,"position":2,"created_at":"2025-04-10T11:34:58-07:00","updated_at":"2025-04-10T12:00:30-07:00","alt":null,"width":700,"height":381,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630","variant_ids":[52725318943087,52725319008623,52725319074159,52725319139695]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","F: 75 Ohm"],"price":201600,"weight":450,"compare_at_price":201600,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51796057129327,"position":2,"preview_image":{"aspect_ratio":1.837,"height":381,"width":700,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52725319106927,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"N: 50 Ohm","sku":"1108DHN-2A","requires_shipping":true,"taxable":true,"featured_image":{"id":52902411534703,"product_id":14904805294447,"position":1,"created_at":"2024-10-02T18:48:32-07:00","updated_at":"2025-04-10T11:35:19-07:00","alt":null,"width":600,"height":323,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119","variant_ids":[52725318975855,52725319041391,52725319106927,52725319172463]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ N: 50 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","N: 50 Ohm"],"price":204800,"weight":450,"compare_at_price":204800,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437834396015,"position":1,"preview_image":{"aspect_ratio":1.858,"height":323,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52725319139695,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"F: 75 Ohm","sku":"1208DHF-2A","requires_shipping":true,"taxable":true,"featured_image":{"id":60047044215151,"product_id":14904805294447,"position":2,"created_at":"2025-04-10T11:34:58-07:00","updated_at":"2025-04-10T12:00:30-07:00","alt":null,"width":700,"height":381,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630","variant_ids":[52725318943087,52725319008623,52725319074159,52725319139695]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ F: 75 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","F: 75 Ohm"],"price":200000,"weight":450,"compare_at_price":200000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51796057129327,"position":2,"preview_image":{"aspect_ratio":1.837,"height":381,"width":700,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52725319172463,"title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","option1":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"2: ±25 kHz","option3":"N: 50 Ohm","sku":"1208DHN-2A","requires_shipping":true,"taxable":true,"featured_image":{"id":52902411534703,"product_id":14904805294447,"position":1,"created_at":"2024-10-02T18:48:32-07:00","updated_at":"2025-04-10T11:35:19-07:00","alt":null,"width":600,"height":323,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119","variant_ids":[52725318975855,52725319041391,52725319106927,52725319172463]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","public_title":"2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 2: ±25 kHz \/ N: 50 Ohm","options":["2: L 10.95 - 11.7 GHz | H 11.7 - 12.75 GHz","2: ±25 kHz","N: 50 Ohm"],"price":203200,"weight":450,"compare_at_price":203200,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437834396015,"position":1,"preview_image":{"aspect_ratio":1.858,"height":323,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHN-product.png?v=1744310119"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":52725318943087,"title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","option1":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","option2":"1: ±10 kHz","option3":"F: 75 Ohm","sku":"1108DHF-1A","requires_shipping":true,"taxable":true,"featured_image":{"id":60047044215151,"product_id":14904805294447,"position":2,"created_at":"2025-04-10T11:34:58-07:00","updated_at":"2025-04-10T12:00:30-07:00","alt":null,"width":700,"height":381,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630","variant_ids":[52725318943087,52725319008623,52725319074159,52725319139695]},"available":true,"name":"1000 Ku-Band Simultaneous Band PLL LNB (Low-Band Connector) - 1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","public_title":"1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz \/ 1: ±10 kHz \/ F: 75 Ohm","options":["1: L 10.7 - 11.7 GHz | H 11.7 - 12.75 GHz","1: ±10 kHz","F: 75 Ohm"],"price":201600,"weight":450,"compare_at_price":201600,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51796057129327,"position":2,"preview_image":{"aspect_ratio":1.837,"height":381,"width":700,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/1000DHF-product.png?v=1744311630"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	L:10.70 - 11.70 GHz
input frequency band 2	H: 11.70 - 12.75 GHz
LO frequency 1	L: 9.75 GHz
LO frequency 2	H: 10.75 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	.85 dB
noise figure typ	0.8 dB
number of onboard LOs	Simultaneous-Band
output frequency band 1	L: 950 - 1950 MHz
output frequency band 2	H: 950 - 2000 MHz
Product Revision	D

RF SPECIFICATIONS
conversion gain max	62 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness (over full band)	≤ 4 dB p-p
input VSWR	2.2 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.0 : 1 max.
phase noise 1kHz offset max	-70 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-95 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	900 mA max

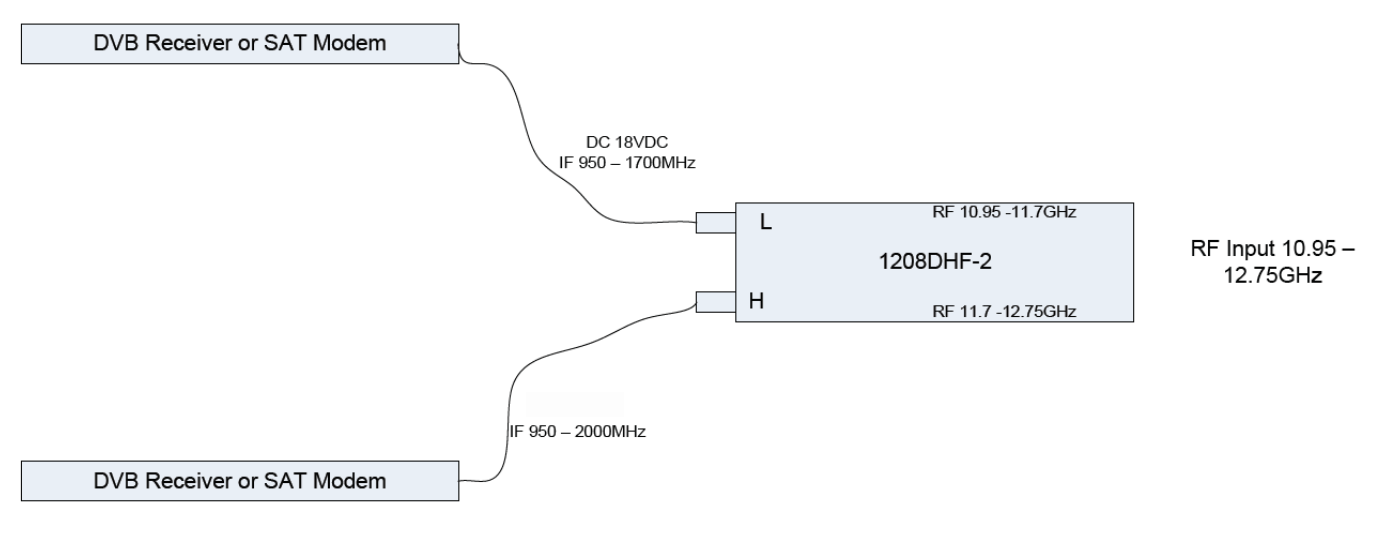

power requirements	+12 to +24VDC (low band only)

INTERFACE SPECIFICATIONS
IF connector	L: 950 - 1950 MHz
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

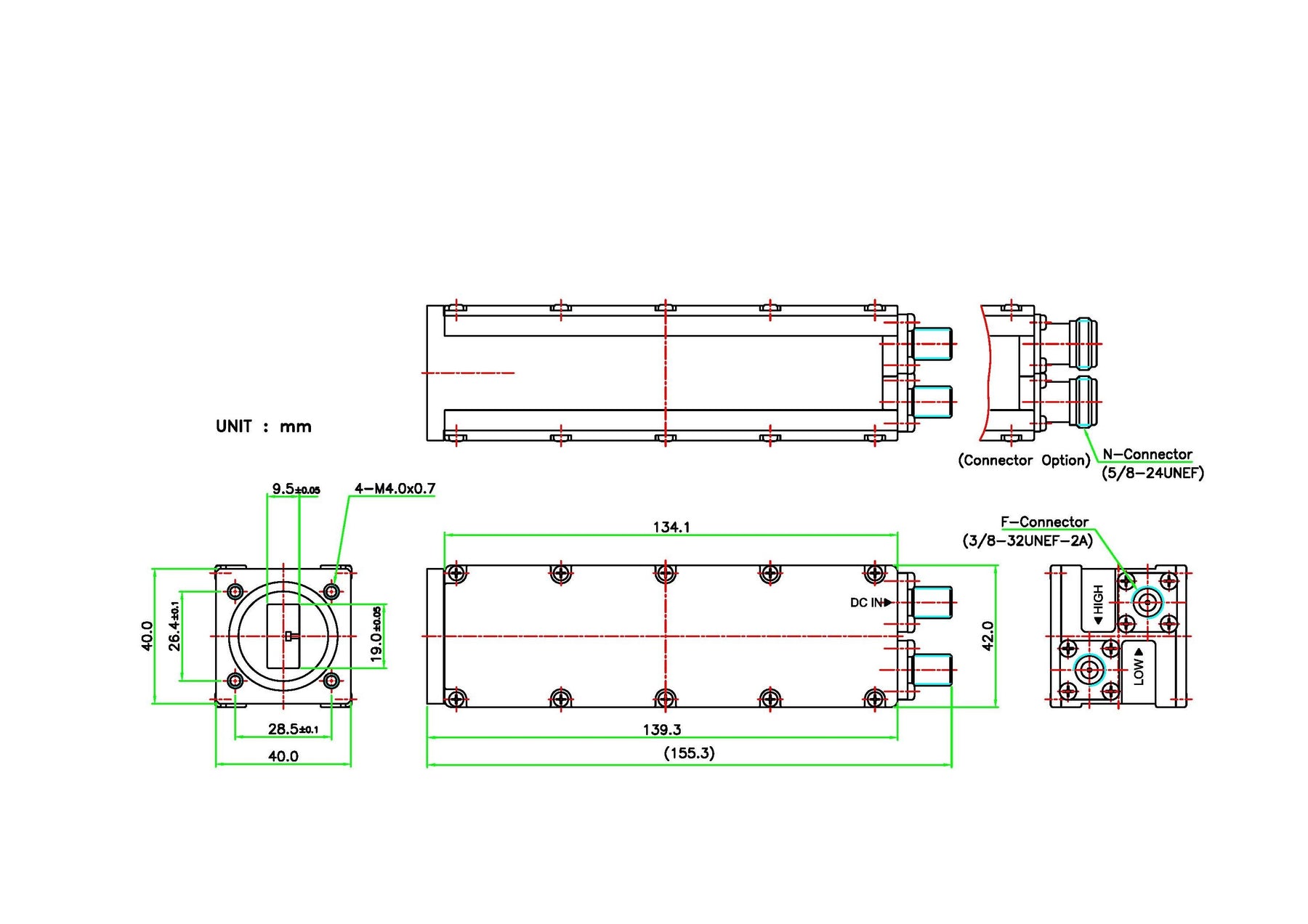

PHYSICAL SPECIFICATIONS
product height	0.04 m
product length	0.155 m
product weight	0.45 kg
product width	0.042 m

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	145 x 95 x 65 mm
Unit Package Weight	-
Total Aluminium Content	0.298 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 0.745

ELECTRICAL SPECIFICATIONS
current consumption	900 mA max.
power requirements	+12 to +24VDC (low band only)

INTERFACE SPECIFICATIONS
IF connector	L: 950 - 1700 MHz
RF input connector	WR-75 waveguide grooved
