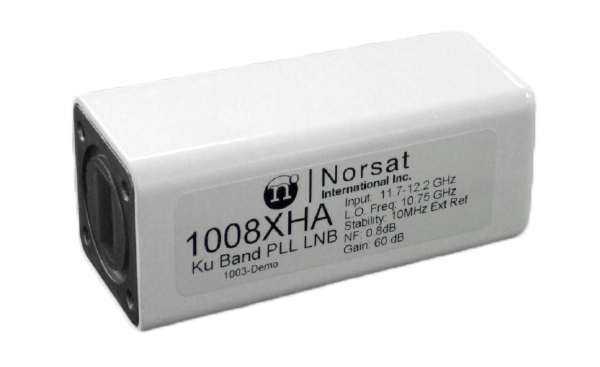

KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.8 dB |
noise figure typ | 0.7 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |

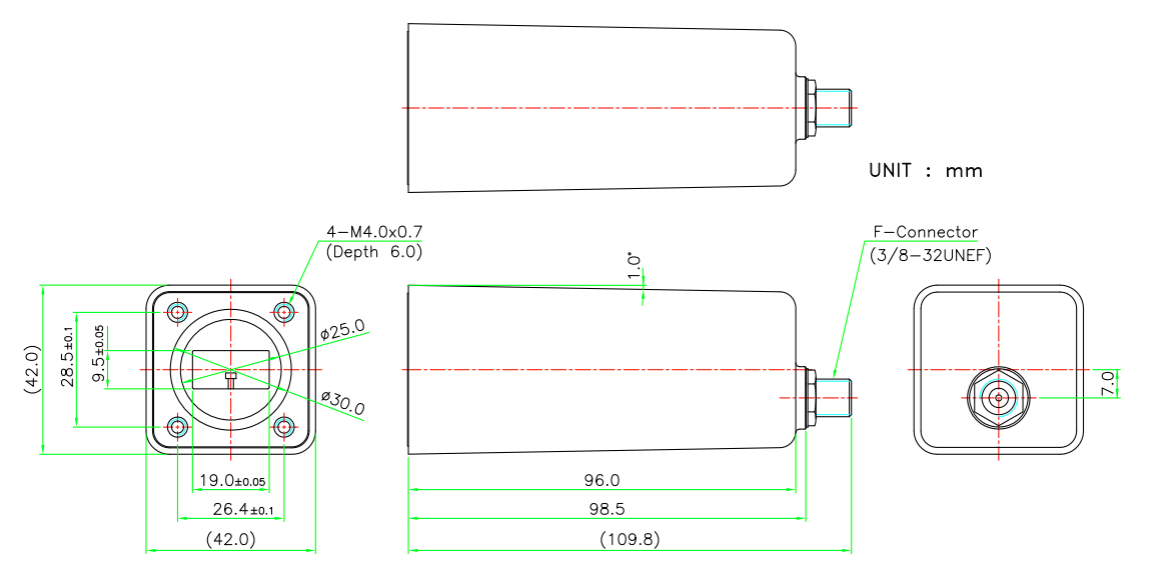

PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.8 dB |
noise figure typ | 0.7 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +12 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40°C to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.8 dB |
noise figure typ | 0.7 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.8 dB |
noise figure typ | 0.7 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.8 dB |
noise figure typ | 0.7 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.8 dB |
noise figure typ | 0.7 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.9 dB |
noise figure typ | 0.8 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.9 dB |
noise figure typ | 0.8 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.9 dB |
noise figure typ | 0.8 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.9 dB |
noise figure typ | 0.8 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.9 dB |
noise figure typ | 0.8 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 0.9 dB |
noise figure typ | 0.8 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 67 |
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 1.0 dB |
noise figure typ | 0.9 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 11.70 - 12.20 GHz |
LO frequency 1 | 10.75 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 1.0 dB |
noise figure typ | 0.9 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 1.0 dB |
noise figure typ | 0.9 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 12.25 - 12.75 GHz |
LO frequency 1 | 11.30 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 1.0 dB |
noise figure typ | 0.9 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1450 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 1.0 dB |
noise figure typ | 0.9 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | B |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | F-Connector |
RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 110 mm |
product weight | 0.3 kg |
product width | 42 mm |
KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
external ref freq | 10 MHz (sine-wave), - 10 to 0 dBm |
input frequency band 1 | 10.95 - 11.70 GHz |
LO frequency 1 | 10.00 GHz |
LO stability | Ext Ref |
LO type | EXT |
noise figure max | 1.0 dB |
noise figure typ | 0.9 dB |
number of onboard LOs | Single-Band |
output frequency band 1 | 950 - 1700 MHz |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
conversion gain max | 65 dB |
conversion gain min | 55 dB |
conversion gain typ | 60 dB |
Gain Flatness (over full band) | ≤ 4 dB p-p |
input VSWR | 2.5 : 1 max. |
output P1dB | + 5 dBm min. |
output VSWR | 2.0 : 1 max. |
phase noise 1kHz offset max | Phase Locked to External Reference |
phase noise 10kHz offset max | Phase Locked to External Reference |
phase noise 100kHz offset max | Phase Locked to External Reference |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 300 mA |
power requirements | +15 to +24V DC |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |

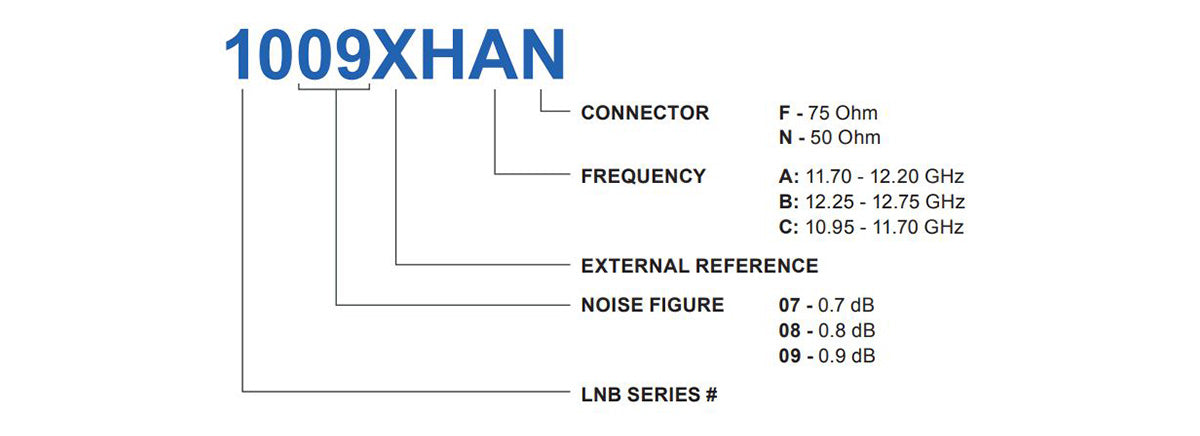

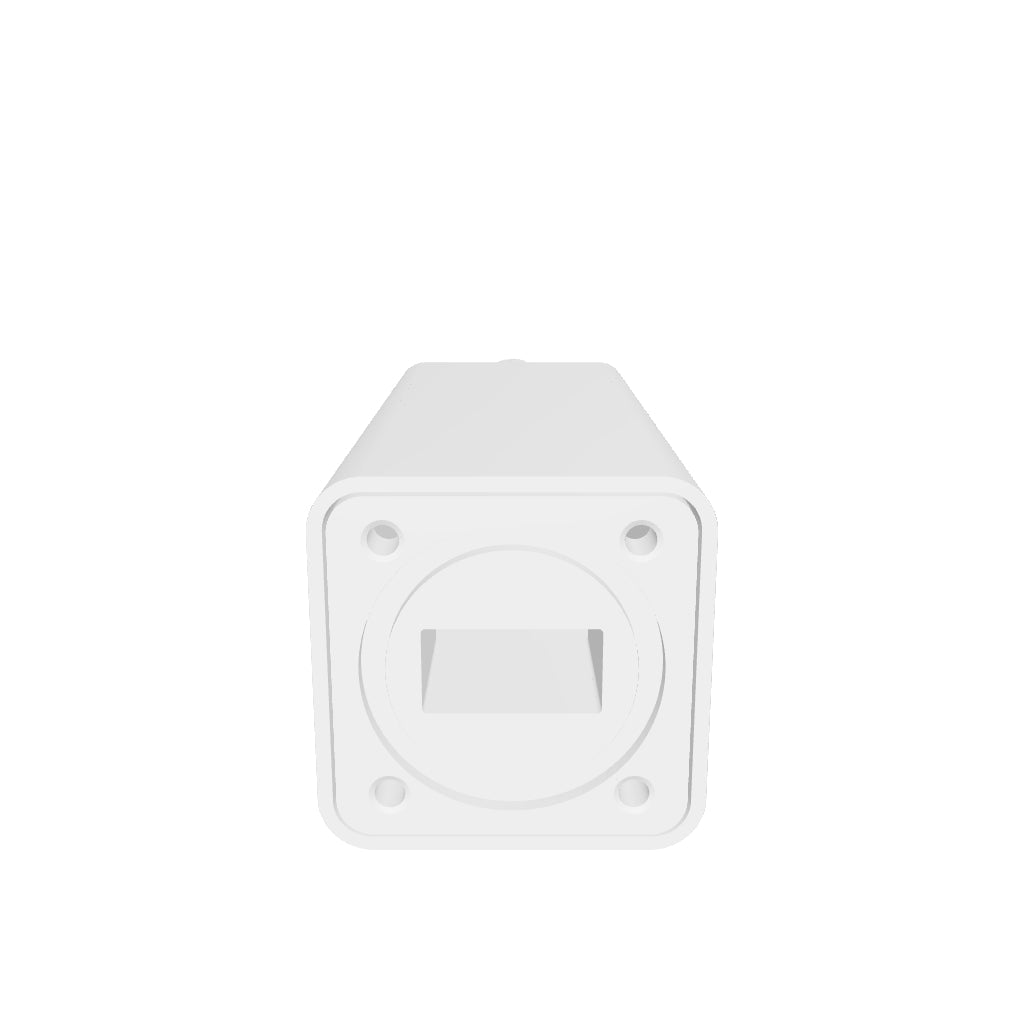

RF input connector | WR-75 waveguide grooved |
M and C SPECIFICATIONS | |
---|---|
led indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
temperature storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 42 mm |
product length | 130 mm |
product weight | 0.3 kg |
product width | 42 mm |
Please contact us to request any additional documents you may need.
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in the Republic of Korea |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | 140 mm x 50 mm x 50 mm |
Unit Package Weight | - |
Total Aluminium Content | 0.19 Kg |
Aluminum Country of Smelt and Cast | Made in Japan |
Total Aluminium Value | $ 0.475 |
